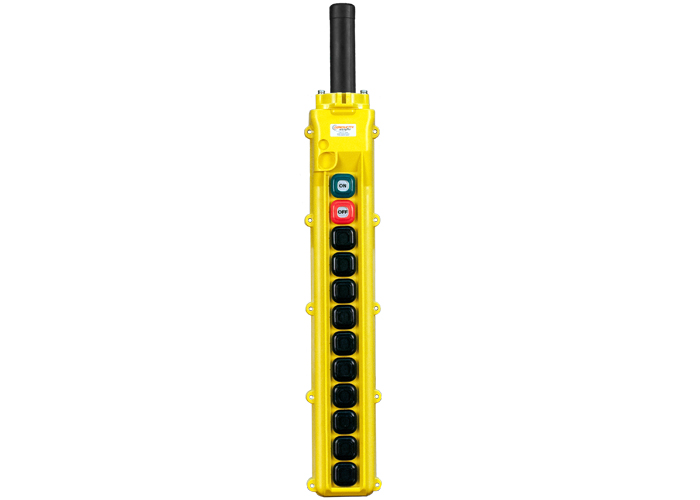

The XA_34253, part of Conductix_Wampfler’s 80_Series, is a fully assembled 12-button pendant designed for indoor industrial use. It combines:
10 _ single-speed maintained switches — providing stable, toggle-style control
1 _ momentary on/off switch pair (red/green) for instant circuit activation/deactivation
This pendant arrives in a durable two-piece high-impact yellow ABS enclosure, UL/cUL-listed and sealed to NEMA_4X/IP65 standards for reliable dust and water protection. Installation is streamlined with a stepped cable bushing (for Ø_7.5–29.5_mm cables) and integrated S-hook strain relief. Total assembled weight is approximately 1.91_lb, and Conductix_Wampfler offers optional pre-assembly and pre-wiring when ordered with pendant cable
Key Features & Specifications
Button Configuration: 10 _ single-speed maintained switches + 1 _ momentary on/off pair
Enclosure: Yellow ABS; UL/cUL-listed; NEMA_4X/IP65 (indoor use)
Cable Strain Relief: Stepped cable bushing with integrated S-hook
Weight: Approx. 1.91_lb
Perfect for controlling overhead cranes, conveyors, hoists, and automated systems where multiple maintained control inputs plus momentary power switching are required in a sealed, ergonomic pendant unit.
