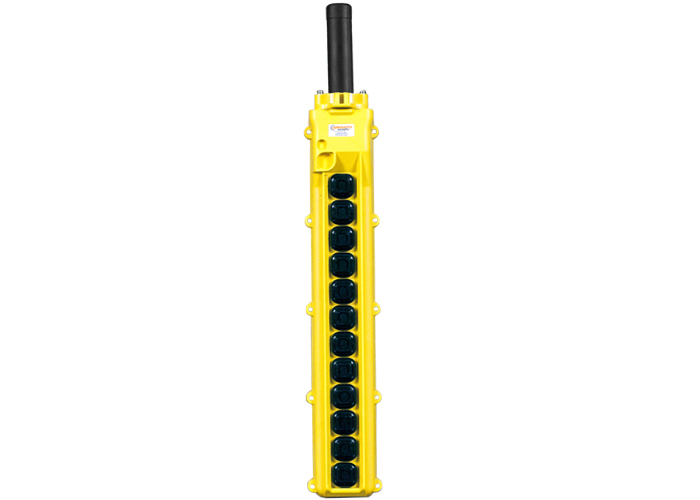

The XA_34259, part of Conductix_Wampfler’s 80_Series 12-button pendant lineup, delivers straightforward and reliable command functionality with twelve single-speed maintained toggle switches—each offering stable on/off operation. This factory-assembled pendant is built for demanding indoor environments and combines robustness with user-friendly design:
Button Configuration: 12 _ single-speed maintained switches for consistent toggle control
Durable Enclosure: Rugged, two-piece high-impact yellow ABS housing that is UL/cUL-listed and sealed to NEMA_4X/IP65 standards, protecting against dust and moisture
Cable Management: Features a stepped bushing (fits Ø_7.5–29.5_mm cable) and integrated S-hook strain relief for secure installation
Weight: Approximately 2.23_lb
Indoor Use Only: Designed for indoor industrial applications
Conductix_Wampfler offers optional pre-assembly and pre-wiring services when purchased with their pendant cable—plus inclusion of a button legend sheet and wiring jumpers for custom configurations.
Key Features & Specifications
Feature Specification
Buttons 12 _ single-speed maintained switches
Enclosure Yellow ABS; UL/cUL-listed; sealed NEMA_4X/IP65
Cable Relief Stepped bushing with S-hook
Weight ~2.23_lb
Assembly Options Factory-assembled; pre-wiring available
