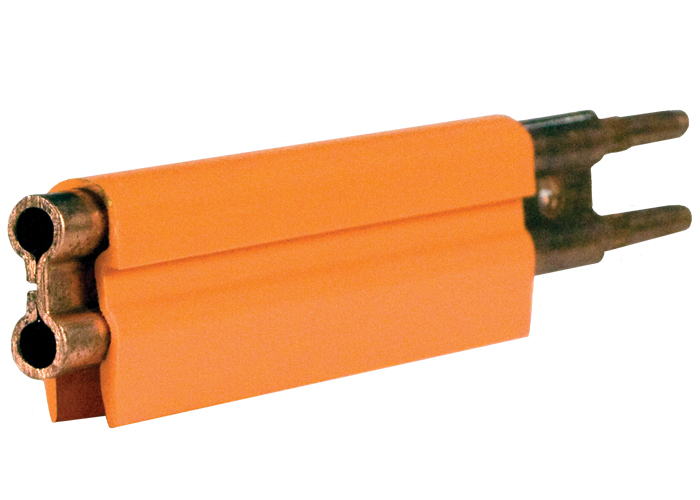

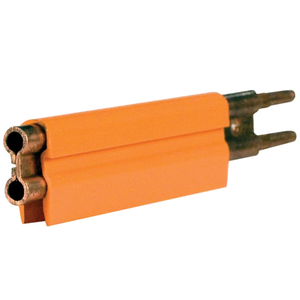

The XA-11013 is a 5-foot, 350 Amp rated 8-Bar conductor bar constructed from rolled copper, providing excellent electrical conductivity and durability in mobile electrification systems. It is designed to deliver high current performance in demanding industrial environments, ensuring consistent power to moving equipment.
This conductor bar is insulated with a bright orange PVC cover, offering electrical insulation, personnel safety, and clear phase identification. The compact 5-foot length makes it ideal for tighter installation areas or precise run-length customization within a larger busway layout.
Part of the Conductix-Wampfler 8-Bar series, the XA-11013 is compatible with standard hangers, collectors, and splice kits, enabling straightforward integration into existing or new conductor bar systems.
Key Features
Current Rating: 350 Amps continuous duty
Length: 5 feet – suited for compact or modular installations
Conductor Material: Rolled copper for high efficiency and low resistance
Insulation Cover: Orange PVC for visibility and electrical safety
System Compatibility: Conductix-Wampfler 8-Bar mobile electrification system
Applications: Overhead cranes, monorails, AS/RS systems, and automated machinery
Installation: Easily connects with matching system accessories
Usage Environment: Indoor or protected outdoor settings
