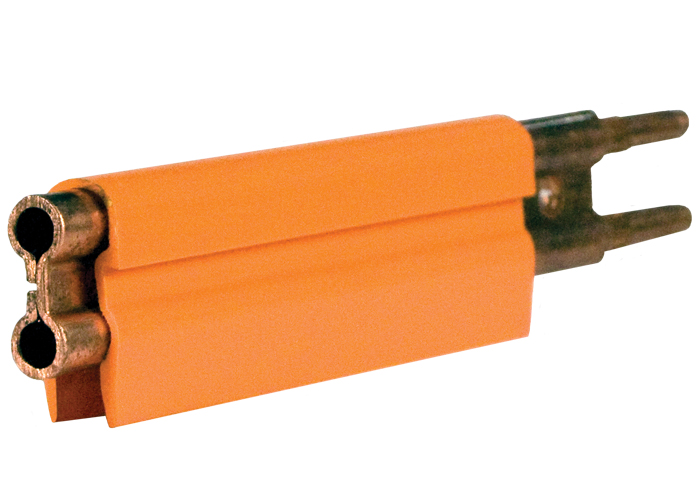

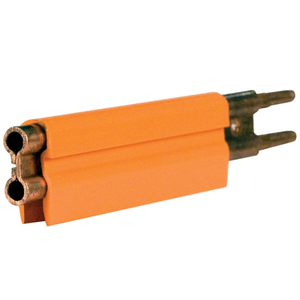

The XA-11012 is a 10-foot, 350 Amp rated 8-Bar conductor bar featuring rolled copper construction to ensure superior conductivity and efficient power transfer for medium to heavy-duty applications. Its robust electrical design is engineered to support mobile equipment requiring consistent, high-current performance.
The bar is insulated with a bright orange PVC cover, providing protection from accidental contact while serving as a clear phase identifier. The durable PVC insulation offers moderate resistance to UV light, moisture, and abrasion, making it well-suited for controlled indoor or covered outdoor environments.
Designed for compatibility with the Conductix-Wampfler 8-Bar system, the XA-11012 installs easily using standard hangers, splice kits, and collectors. It is an ideal solution for automated material handling systems, bridge cranes, and monorails operating under continuous duty conditions.
Key Features
Current Rating: 350 Amps continuous duty
Length: 10 feet – suitable for standard run lengths
Conductor Material: Rolled copper – optimal for low resistance and heat dissipation
Insulation Cover: Orange PVC – offers safety insulation and phase identification
System Type: 8-Bar mobile electrification system
Applications: Industrial cranes, monorails, hoists, automated systems
Installation: Compatible with Conductix hangers, collectors, and accessories
Environment: For use in indoor or protected outdoor settings
