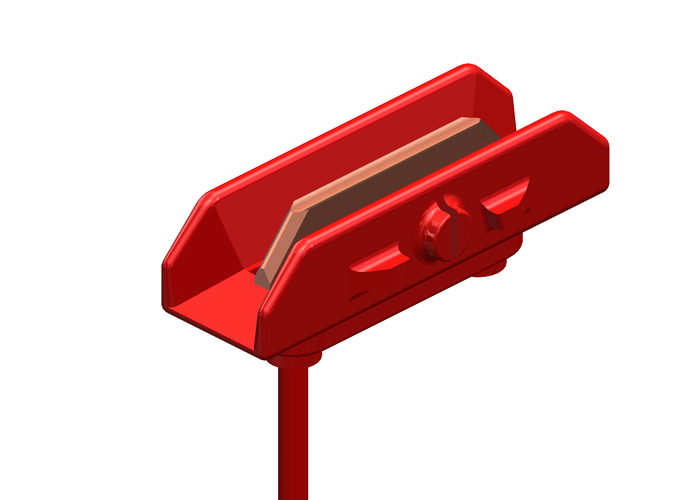

The XA-13134 is a collector head assembly rated for 30 amps, featuring a J-Head design with an integrated 19-inch pigtail. Engineered for use with 8-Bar conductor systems, this head assembly enables efficient and reliable current collection in mobile power applications such as overhead cranes, hoists, and material handling systems. The J-Head provides accurate and stable alignment with the conductor bar, while the attached pigtail simplifies electrical integration with control or power systems. It is ideal for light-duty operations requiring consistent electrical performance and mechanical stability.
Key Features:
30A Current Rating: Suitable for light-duty mobile power transfer.
J-Head Profile: Maintains secure and consistent conductor contact.
19" Pigtail: Pre-attached cable for easy system integration.
Compact Design: Ideal for space-constrained installations.
System-Compatible: Fits standard 8-Bar collector arms and bases.
Technical Specifications:
Component Type: Collector Head Assembly
Current Rating: 30 Amps
Head Style: J-Head
Pigtail Length: 19 inches
System Compatibility: 8-Bar Conductor Systems
Application: Cranes, hoists, and mobile electrification equipment
