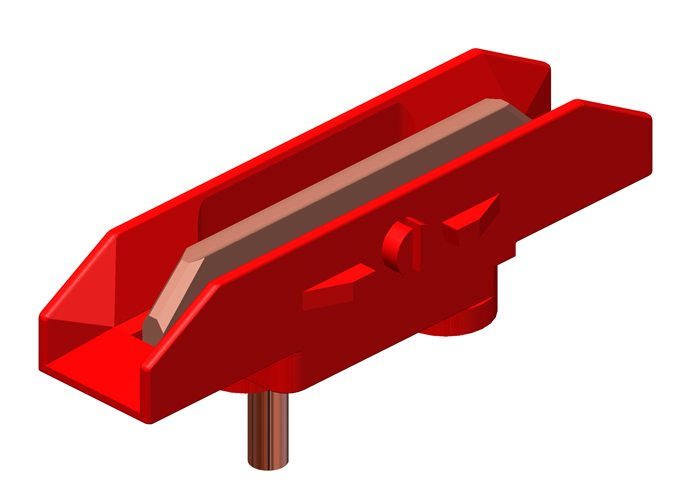

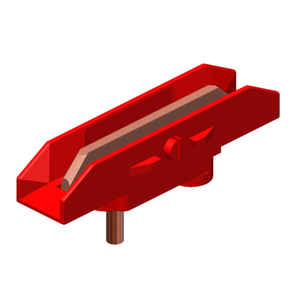

The XA-13605 is a collector head assembly rated for 100 amps, featuring a J-Head design and equipped with a 6 AWG pigtail that measures 21 inches in length. This component is engineered for use in 8-Bar conductor systems, enabling stable and continuous electrical contact during movement in mobile power applications such as cranes, hoists, and transfer systems. The J-Head profile ensures precise tracking along the conductor bar, while the pre-attached pigtail simplifies electrical connection to control panels or power feeds. Designed for high reliability, this assembly provides efficient current transfer and robust mechanical performance in industrial environments.
Key Features:
100A Current Rating: Supports medium-to-heavy duty power transfer.
J-Head Configuration: Offers stable, consistent contact with conductor bar.
6 AWG Pigtail (21” Length): Pre-installed for quick electrical connection.
High Conductivity Design: Ensures efficient power flow under dynamic conditions.
System-Compatible: Fits standard 8-Bar collector arm and base assemblies.
Technical Specifications:
Component Type: Collector Head Assembly
Current Rating: 100 Amps
Head Style: J-Head
Pigtail Size: 6 AWG
Pigtail Length: 21 inches
System Compatibility: 8-Bar Conductor Systems
Application: Mobile electrification (e.g., cranes, AS/RS, hoists)
