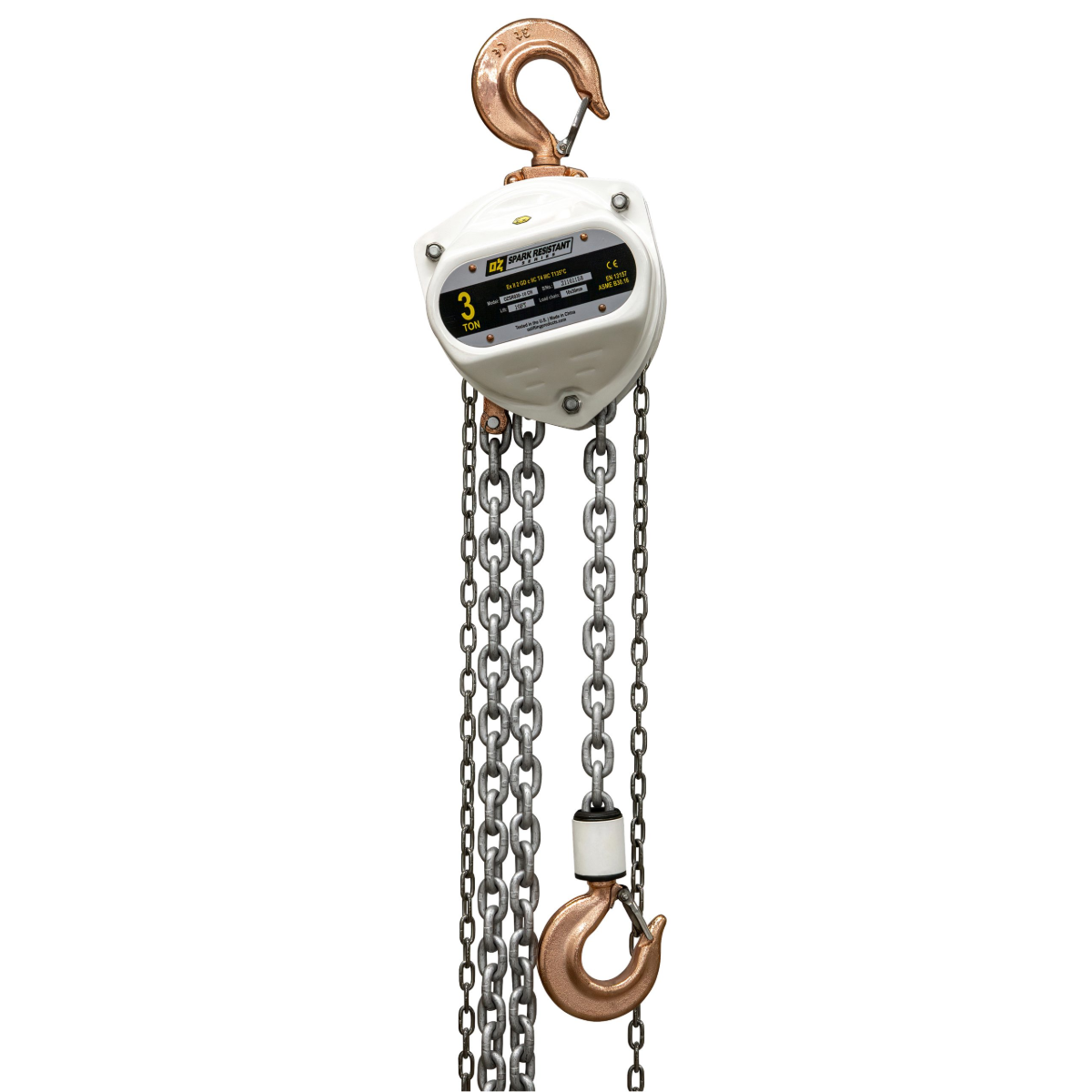

The OZSR030-10CH Spark Resistant Chain Hoist is a heavy-duty, explosion-proof lifting solution built to deliver maximum safety and performance in hazardous environments. With an impressive 3-ton (6,000 lbs) lifting capacity and a 10-foot lift height, this manual chain hoist provides the power and reliability required for industrial applications where the risk of explosion or ignition is a serious concern.

Designed to meet EU standards ATEX94/9/EC and the Machinery Directive 2006/42/EC, the OZSR030-10CH achieves an explosion-proof rating of EX II2 GD c IIIC T135°C. This classification ensures the hoist can be safely operated in Zone 1 & 2 (gas) and Zone 21 & 22 (dust) areas, making it ideal for industries such as oil and gas, chemical processing, pharmaceuticals, and food manufacturing.

The spark-resistant design features key components made from bronze, brass, and stainless steel, which prevent the creation of sparks due to friction or impact. This makes the OZSR030-10CH a trusted choice for explosive or combustible atmospheres, where traditional steel hoists pose safety risks.

A Grade 80 stainless steel load chain ensures exceptional strength, corrosion resistance, and long service life under demanding use. The fully enclosed gear system keeps out dust and contaminants, ensuring smooth, low-maintenance operation. The Weston-style twin pawl braking system adds an extra layer of security by automatically holding the load in place, providing reliable control during lifting and lowering operations.

The top and bottom swivel hooks are equipped with safety latches to prevent accidental detachment, while their bronze coating enhances spark resistance. The ergonomic hand chain design allows operators to lift heavy loads with minimal effort, improving efficiency and reducing strain. A powder-coated steel housing further protects the hoist from corrosion, ensuring dependable performance even in harsh or humid work environments.

With a 10-foot lift height, the OZSR030-10CH is engineered for precision and safety in confined or high-risk areas where controlled manual lifting is essential. Its non-electric, mechanical operation eliminates the risk of electrical ignition, making it ideal for explosion-prone facilities.

Key Features

• Capacity: 3 Ton (6,000 lbs)

• Lift Height: 10 ft

• Explosion-Proof Rating: EX II2 GD c IIIC T135°C

• Compliance: ATEX94/9/EC and Machinery Directive 2006/42/EC

• Hazard Zones: Zone 1 & 2 (Gas), Zone 21 & 22 (Dust)

• Construction: Spark-resistant bronze, brass, and stainless steel components

• Load Chain: Grade 80 stainless steel – corrosion and wear resistant

• Brake System: Weston-style twin pawl for maximum load security

• Hooks: Bronze-coated swivel hooks with safety latches

• Housing: Powder-coated steel for corrosion protection

• Operation: Manual chain for precise control without electrical power

Applications

The OZSR030-10CH Spark Resistant Chain Hoist is built for industries that demand safe, explosion-proof lifting solutions, including:

• Oil & Gas Refineries

• Chemical and Petrochemical Facilities

• Pharmaceutical Manufacturing

• Food and Beverage Processing

• Paint and Solvent Plants

• Grain Handling and Milling Operations
