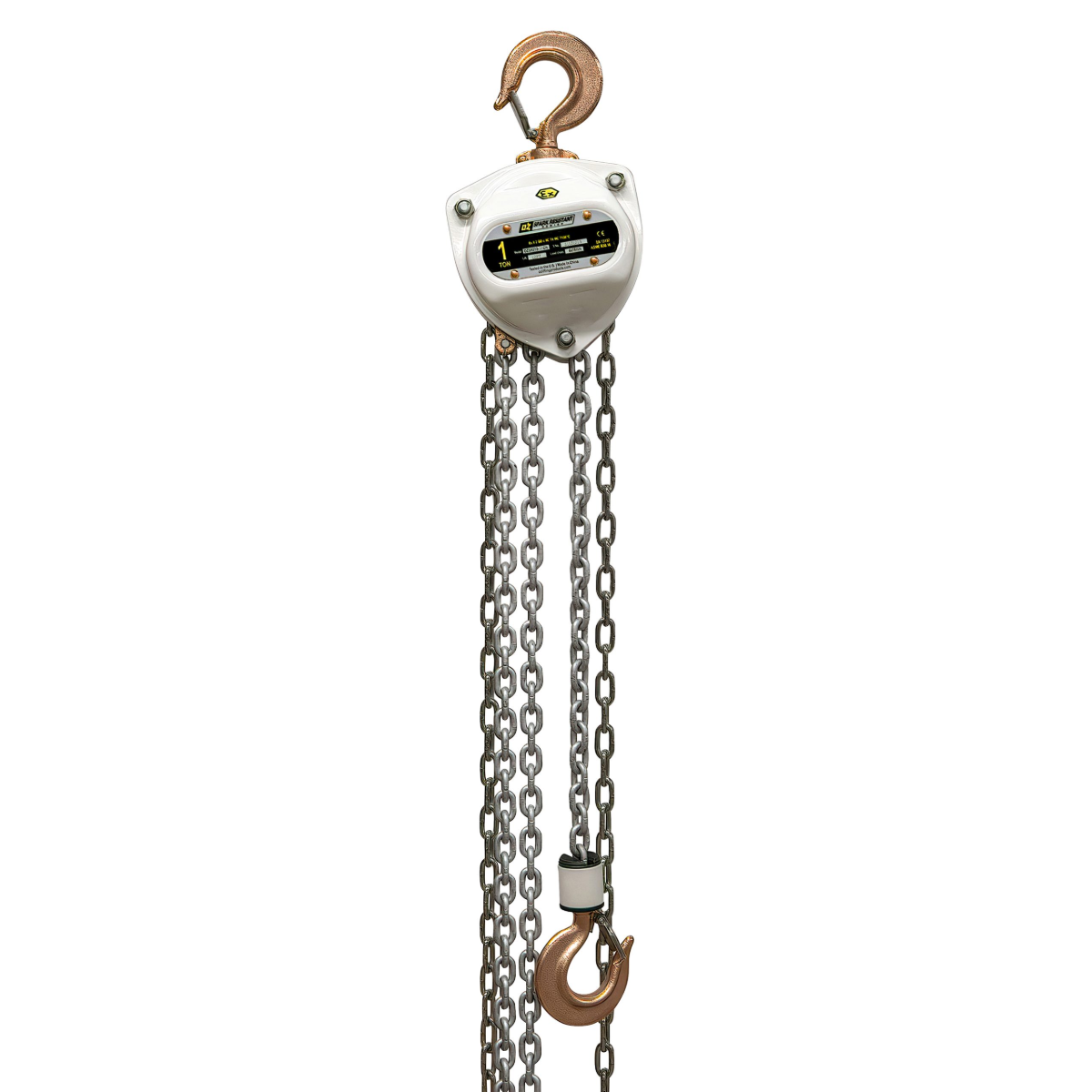

The OZSR010-10CH Spark Resistant Chain Hoist is expertly engineered to deliver safe, reliable, and explosion-proof lifting performance in hazardous and volatile environments. With a 1-ton (2,000 lbs) capacity, this hoist ensures dependable material handling where flammable gases, vapors, or combustible dusts are present. Designed to comply with the EU’s ATEX94/9/EC and Machinery Directive 2006/42/EC, it is certified to an explosion-proof level of EX II2 GD c IIIC T135°C, meeting stringent international safety standards for use in Zone 1 & 2 (gas) and Zone 21 & 22 (dust) areas.

Built for durability and protection, the OZSR010-10CH features all-steel construction with spark-resistant components, including bronze hooks, stainless steel hand chains, and bronze-coated gears. These specialized materials prevent mechanical sparks, ensuring complete safety during lifting operations in explosive atmospheres such as chemical plants, oil refineries, paint manufacturing facilities, and food processing plants.

The hoist’s fully enclosed gearing offers smooth, efficient operation while minimizing maintenance needs by keeping contaminants like dust and moisture out of critical internal mechanisms. Its Weston-style mechanical brake system, equipped with a twin pawl design, guarantees secure load holding and reliable stopping performance, even under heavy-duty use. The Grade 80 stainless steel load chain provides exceptional tensile strength and corrosion resistance, ensuring long-lasting service in demanding industrial conditions.

For added usability, the 360° rotating top and bottom hooks feature safety latches that allow for secure load attachment and precise positioning. The ergonomic hand chain allows operators to lift loads with minimal effort, while the powder-coated finish protects against wear, abrasion, and corrosion, maintaining the hoist’s appearance and functionality over time.

Key Features

• Capacity: 1 Ton (2,000 lbs)

• Lift Height: 10 ft

• Explosion-Proof Rating: EX II2 GD c IIIC T135°C

• Certifications: Complies with ATEX94/9/EC and Machinery Directive 2006/42/EC

• Zones: Suitable for Zone 1 & 2 (gas) and Zone 21 & 22 (dust) environments

• Construction: Heavy-duty all-steel body with spark-resistant bronze and stainless steel components

• Load Chain: Grade 80 stainless steel – corrosion and spark resistant

• Brake System: Weston-style mechanical brake with twin pawl safety design

• Hooks: Bronze-coated, 360° swivel with safety latches

• Operation: Smooth and efficient hand chain for minimal lifting effort

• Finish: Durable powder-coated body for long-lasting protection

• Compliance: Meets ASME B30.16 and OSHA lifting safety standards

Applications

• Chemical and petrochemical industries

• Oil and gas refineries

• Food and beverage production facilities

• Pharmaceutical manufacturing

• Paint and coating operations

• Energy and power generation plants

• Any ATEX Zone 1, 2, 21, or 22 environment
