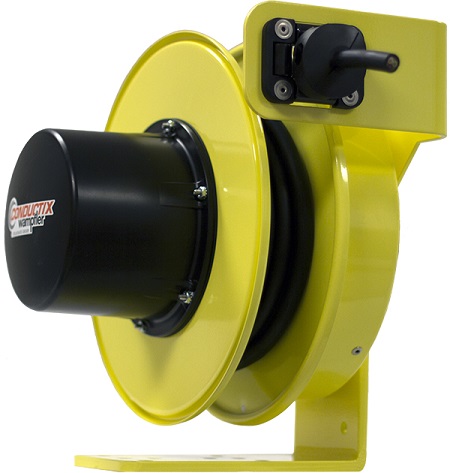

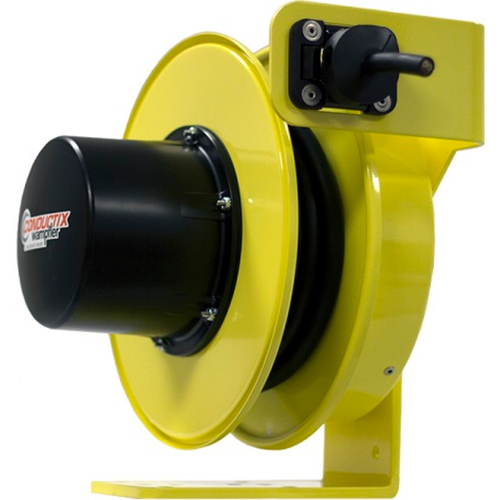

The 1400 Series PowerReel® – Stretch model XA_142160802021 is a professional-grade, spring-driven cable reel designed for continuous tension (stretch) payout applications. This model includes approximately 18_ft (labeled “20_ft”) of factory-installed 16_AWG, 8_conductor Type SOOW cable, with a cable diameter of 0.645_in and a weight of 0.221_lb/ft. The reel is equipped with a 600_V, NEMA_4-rated enclosed slip-ring assembly, housed in a powder-coated steel frame, and is UL/CSA-listed. It includes a field-disengageable ratchet kit for tension control
Key Features
Factory-Installed & Verified Cable
Reel is supplied with 16_AWG, 8_conductor SOOW cable, professionally installed and length-tested at the factory
Robust Steel Enclosure
All-steel, powder-coated safety_yellow housing with multiple mounting provisions for industrial installations
Multi-Roller Cable Guide
A 4-roller guide arm (12-position) provides smooth cable payout and retraction, minimizing wear
Spring-Driven Tension & Ratchet Kit
Precision spring offers consistent retraction; included ratchet can be disengaged for constant stretch tension .
Enclosed, Weather-Proof Slip-Ring Assembly
NEMA_4-rated, 600_V slip-ring unit that’s UL/CSA-listed and includes a grounded first ring
Industrial Durability
Built for rugged environments with low maintenance, ideal for heavy-cycle use .
