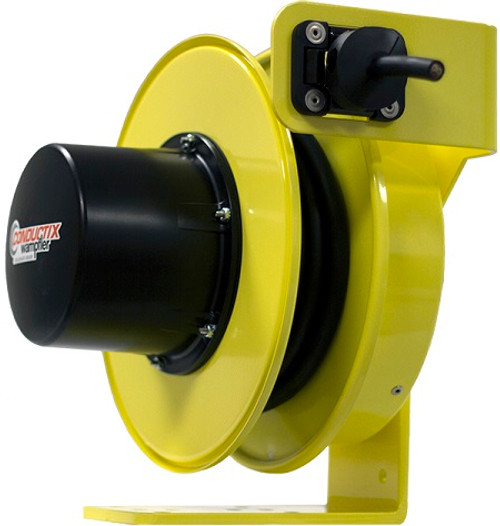

The XA_142161202021 is a rugged 1400 Series PowerReel® – Stretch cable reel featuring approximately 18_ft of factory-installed 16_AWG, 12_conductor Type SOOW cable (18_ft ≈ 20_ft nominal length). Built for continuous tension payout, it includes a spring-driven retraction system with a field-disengageable ratchet and a NEMA_4-rated, enclosed 600_V slip-ring assembly in a durable powder-coated steel housing. The reel is UL/CSA listed and ideal for heavy-duty industrial environments
Key Features
16_AWG, 12_Conductor SOOW Cable (~18_ft actual):
0.74_ O.D., 0.305_lb/ft; factory-installed and tested for exact length
Spring-Driven Retraction with Ratchet:
Precision spring ensures smooth payout/retraction; ratchet can be disengaged for stretch-mode.
Heavy-Duty Steel Housing:
Powder-coated safety yellow with multiple mounting points.
Enclosed, NEMA_4-Rated Slip-Ring (600V):
Weatherproof, UL/CSA-listed assembly with grounded first ring.
Low-Maintenance Design:
Engineered for rugged, industrial-grade performance and continuous operation.
