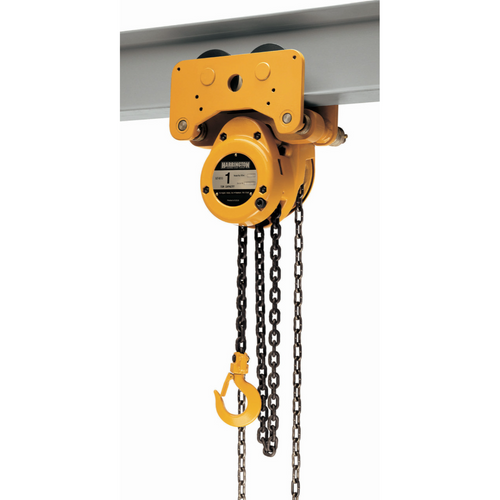

NTH Navy Trolley Hoist ' Lift-Capacity 1 Ton Manual Hoist with Push HARRINGTON

Write a Review
$1,485.94
$1,355.92
(You save $130.02 )
SKU: NTH010
Condition: New
Availability: In stock
Weight: 62.00 LBS
Shipping: Free Shipping
product: Low Headroom Chain Hoist, 10 ft.Lift
Load Capacity: 2,000 lb
Hoist Lift: 10 ft
Hoist Mount: Push Trolley
Hoist Overload Protection: No
Pull to Lift Rated Load: 72 lb
Housing Length: 12 1/2 in
Housing Width: 11 in
Housing Depth: 8 in
Manufacturers Warranty Length: 2 yr
Lifting Hook Opening Width: 1 3/32 in
For Min Beam Flange Width: 2 5/16 in
Minimum Retracted Length: 12 1/2 in
For Max Beam Flange Height: Not Applicable
Body Depth: 8 3/32 in
Body Width: 10 29/32 in
Chain Length: 11 ft
For Max Beam Flange Width: 5 5/32 in
Lever Length: Not Applicable
Maximum Lifting Length: 10 ft
For Min Beam Flange Height: 3 1/2 in
Min Between Hooks: 12 1/2 in
Hook Opening: 1 7/64 in
Brake: Weston Style Brake
Trolley Configuration: Push Trolley
Fits Beam Flange W: 2 5/16 in to 5 3/16 in
Standards: ANSI/ASME B30.16, ANSI/ASME HST-2M
Item: Chain Hoist
Color: Yellow
Maximum Pulling Capacity: Not Applicable
Resistance Properties: Abrasion Resistant, Corrosion Resistant, Moisture Resistant, Wear Resistant
Lifting Hook Type: Hook with Safety Latch
Includes Clutch: Clutch Not Included
Brake Type: Weston Style
Number of Reeves: 1
Mount Type: Push Trolley
Body Material: Die-Cast Aluminum
Number of Load Chains: 1
Lifting Hook Material: Carbon Steel
Includes Brake: Brake Included
Chain Material: Manganese Alloy
Overload Protection Included: No
Operating Position: Vertical
Features: Integral Trolley
Included Components: Safety Latch Hooks
Maximum Lifting Capacity: 2,000 lb
Chain Grade: Grade 100
Headroom: 12 1/2 in
Power Source: Manual
Adding to cart… The item has been added
NTH Navy Trolley Hoist ' Lift-Capacity 1 Ton Manual Hoist with Push HARRINGTON

NTH Navy Trolley Hoist ' Lift-Capacity 1 Ton Manual Hoist with Push HARRINGTON

$1,485.94
$1,355.92
(You save $130.02 )
The NTH Navy Trolley Hoist is the ideal lifting solution designed to meet a variety of heavy-duty needs with remarkable efficiency. With a lift capacity of 1 Ton, this manual hoist excels in handling substantial loads effortlessly. Its compact and sturdy design is particularly well-suited for tight spaces, making it an essential tool for any worksite, garage, or warehouse.

A key feature of the NTH010 model is its permanently attached trolley, which enhances maneuverability and simplifies positioning without the need for extra equipment. This innovative design enables users to streamline their lifting operations, saving valuable time and effort. This hoist not only minimizes setup challenges but also maximizes efficiency in any lifting scenario.

The NTH010 is equipped with a cost-effective CF hand chain hoist. This combination ensures that you benefit from the traditional power of a hoist while enjoying the economical advantages of a hand chain system. Users can rely on the dependable performance of this hoist to repeatedly deliver results.

With its compact structure, the NTH Navy Trolley Hoist is your go-to solution for situations where headroom is at a premium. It effortlessly adapts to confined spaces without sacrificing lifting capacity or performance. Whether lifting items in a crowded workshop, performing tasks in construction, or managing heavy loads on a limited scaffold, the NTH010 is engineered to excel.

Investing in the NTH Navy Trolley Hoist translates to embracing reliability and efficiency in your lifting tasks. Its durable construction ensures long-lasting performance, making it a valuable addition to your toolkit. Experience the versatility and ease of use with the NTH010 and transform your lifting operations today.
Buyer must notify HHI in writing within sixty (60) days of discovery of any alleged defect, if within the applicable warranty period. All products sold by HHI are warranted to be free from defects in material and workmanship from date of shipment by HHI for the following periods: 1 year – Electric and Air Powered Hoists (excluding (N)ER2 Hoists and EQ/SEQ Hoists), Powered Trolleys, Powered Tiger Track Jibs and Gantries, Crane Components, Below the Hook Devices, Spare / Replacement Parts 2 years – Manual Hoists & Trolleys, Beam Clamps 3 years – (N)ER2 Hoists, EQ/SEQ Hoists, (T)EM/(T)SEM hoists, and RY Hoists 5 years – Manual Tiger Track Jibs and Gantries, Hoist Motor Brakes for EQ/SEQ, (T)EM/(T)SEM, and RY 10 years – (N)ER2 Brake, TNER Hoist Motor Brake The product must be used in accordance with manufacturer’s recommendations and must not have been subject to abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. Should any defect in material or workmanship occur during the above time period in any product, as determined by HHI’s inspection of the product, HHI agrees, at its discretion, either to replace (not including installation) or repair the part or product free of charge. For customers in the U.S., delivery shall be made F.O.B. HHI’s place of business. For international customers, delivery shall be made FCA HHI place of business, United States of America (Incoterms 2010). No warranty claim will be honored without a valid proof of purchase. Customer must obtain a Return Goods Authorization as directed by HHI or its published repair center prior to shipping product for warranty evaluation. An explanation of the complaint must accompany the product. Product must be returned freight prepaid. Upon repair, the product will be covered for the remainder of the original warranty period. Replacement parts installed after the original warranty period will only be eligible for replacement (not including installation) for a period of one year from the installation date. If it is determined there is no defect, or that the defect resulted from causes not within the scope of HHI’s warranty, the customer will be responsible for the costs of returning the product. HHI DISCLAIMS ANY AND ALL OTHER WARRANTIES OF ANY KIND, EXPRESSED OR IMPLIED, AS TO THE PRODUCT’S MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. HHI WILL NOT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY OR FOR INCIDENTAL, CONTINGENT, SPECIAL OR CONSEQUENTIAL DAMAGES, LOSS OR EXPENSE ARISING IN CONNECTION WITH THE USE OR MISUSE OF THE PRODUCTS, REGARDLESS OF WHETHER THE DAMAGE, LOSS OR EXPENSE RESULTS FROM ANY ACT OR FAILURE TO ACT BY HHI, WHETHER NEGLIGENT OR WILLFUL, OR FROM ANY OTHER CAUSE.
