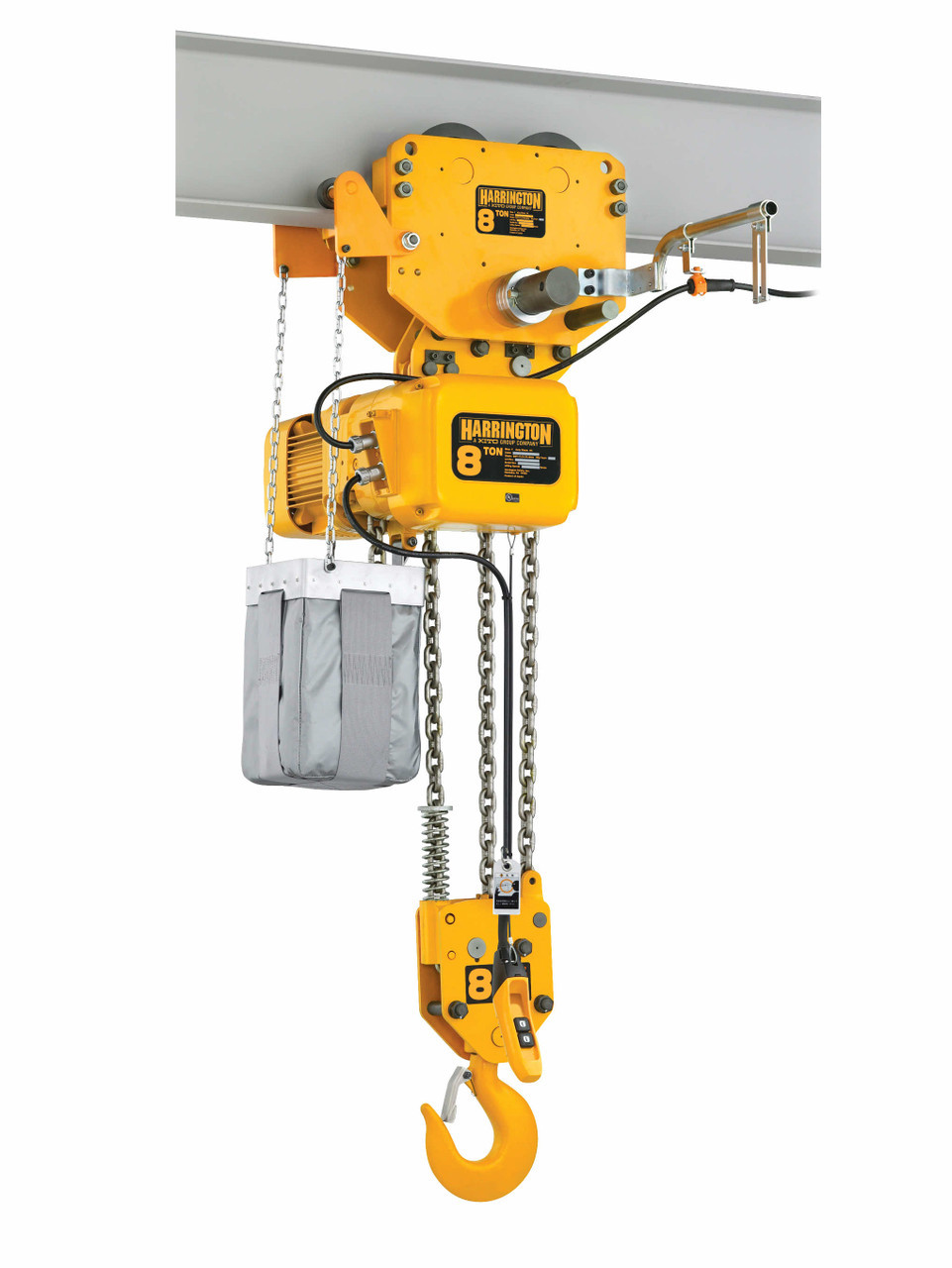

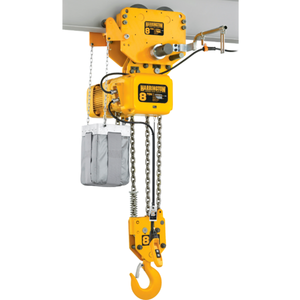

NERP Electric Chain Hoist with Push Trolley 20' Lift-Capacity 10 Tons NERP100S Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

The NERP100S-20 HARRINGTON Electric Chain Hoist with Push Trolley revolutionizes the way you handle heavy loads in your workshop. This expertly engineered hoist and trolley combination delivers unmatched reliability and efficiency, making it an essential addition for any workspace requiring heavy lifting or precise load transportation.

Designed for durability, the NERP Electric Chain Hoist features a robust construction that can withstand the rigors of heavy use, with a remarkable lift capacity of 10 tons and a generous lift height of 20 feet. This impressive capability empowers users to effortlessly move heavy equipment and materials to elevated positions, streamlining workflows and enhancing productivity.

The integrated push trolley enhances maneuverability, allowing for seamless transport along the desired path without the physical strain of manual movement. This user-friendly feature drastically reduces time and effort, making the NERP100S ideal for both small workshops and larger industrial settings.

Operating this electric chain hoist is straightforward, thanks to ergonomic controls and an intuitive design that simplifies usage, even for those less experienced in heavy lifting equipment. Enhanced with safety features like overload protection, the NERP100S not only safeguards the hoist from damage but also ensures a safe working environment for operators.

Choose the NERP100S-20 HARRINGTON Electric Chain Hoist with Push Trolley for a perfect blend of performance and safety. This reliable equipment guarantees efficiency, durability, and ease of use, setting a new standard for load transportation in your workshop. Elevate your operational capabilities today, and enjoy the seamless lifting experience that the NERP100S brings to your projects.

Product Specifications

.

Part Number:

NERP100S-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Electric Chain Hoist, 20,000 lb, 20 ft, Push Trolley=Hoist Mount=Push Trolley

Includes:

10 Year Brake Warranty, Chain Container, Push Trolley, Quick Disconnect Plugs On Pendant And Power Cords

Lift Speed:

11 fpm

Housing Width:

13 1/4 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

10 1/2 in

Housing Length:

28 7/8 in

For Minimum Beam Flange Width:

5 1/2 in

For Maximum Beam Flange Width:

8 21/32 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

13 1/4 in

Body Depth:

10 1/2 in

For Minimum Beam Height:

7 5/16 in

Body Length:

28 7/8 in

Minimum Radius Curve:

118 3/32 in

Maximum Lifting Length:

20 ft

Controller Cord Length:

16 ft

Trolley Wheel Diameter:

7 3/10 in

Lifting Hook Opening Width:

3 3/16 in

Minimum Retracted Length:

46 1/2 in

Load Capacity:

20,000 lb

Minimum Between Hooks:

46 1/2 in

Motor HP:

4.7 hp x2

Phase:

3

Standards:

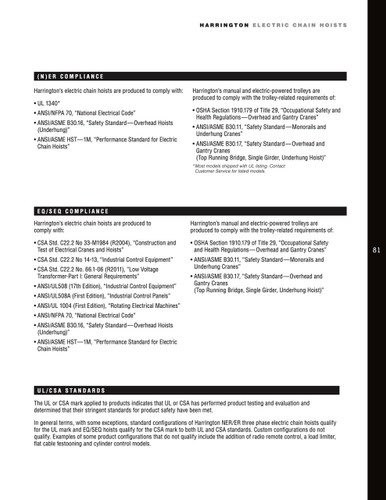

ANSI/ASME B30.16, ASME HST-1M, NFPA 70, RoHS Compliant, UL 1340

Voltage:

208/230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

4

Thermal Protection:

Yes

Control Cord:

16 ft

Amps @ Low Volts:

16.4x2

Number of Speeds:

1

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

Count Hour Meter, Extreme Duty Motor, Push Trolley, Smart Brake Technology

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

11 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Programmable by Internal Controls=Mount Type=Push Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

4

Motor Horsepower:

4 3/4 hp

Headroom:

46 1/2 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

20,000 lb

Current at Minimum Voltage:

32.8 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

15.8 A

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
