Part Number
Part Number NERP030C-20
Color Yellow
Hoist Lift 20 ft

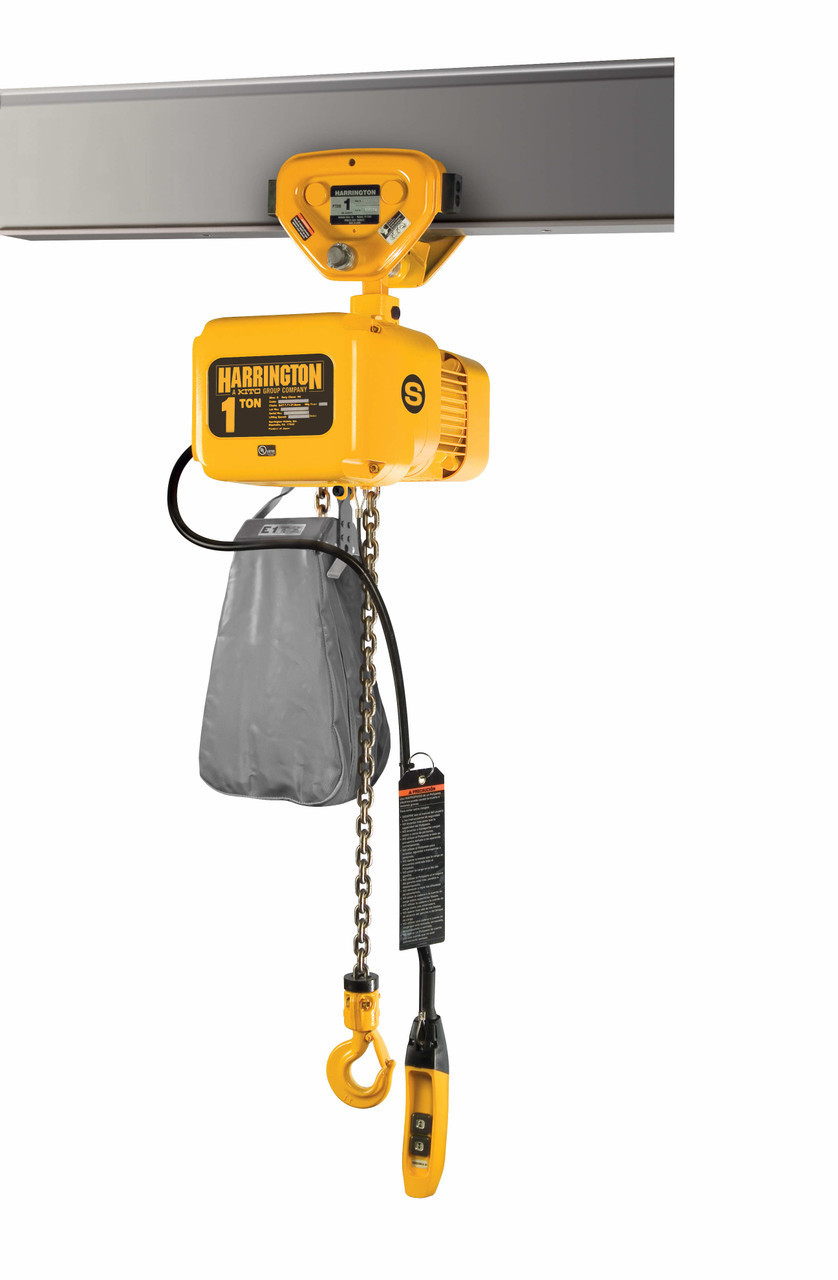

Product Electric Chain Hoist, 6,000 lb, 20 ft, Push Trolley=Hoist Mount=Push Trolley
Includes 10 Year Brake Warranty, Chain Container, Push Trolley, Quick Disconnect Plugs On Pendant And Power Cords
Lift Speed 17 fpm
Housing Width 16 13/16 in
Manufacturers Warranty Length 10 yr Brake Warranty, 3 yr
Housing Depth 9 1/2 in
Housing Length 27 5/8 in
For Minimum Beam Flange Width 3 1/4 in
For Maximum Beam Flange Width 6 1/32 in
For Maximum Beam Height Not Applicable
MFR Warranty Length 1 yr
Body Width 16 13/16 in
Body Depth 9 1/2 in
For Minimum Beam Height 5 13/16 in
Body Length 27 5/8 in
Minimum Radius Curve 66 29/32 in
Maximum Lifting Length 20 ft
Controller Cord Length 16 ft
Trolley Wheel Diameter 5 4/5 in
Lifting Hook Opening Width 1 13/16 in
Minimum Retracted Length 32 11/16 in
Load Capacity 6,000 lb
Minimum Between Hooks 32 11/16 in
Motor HP 4.7 hp
Phase 3
Standards ANSI/ASME B30.16, ASME HST-1M, NFPA 70, RoHS Compliant, UL 1340
Voltage 208/230/460V
Fits Brand Harrington Hoists Inc
Lubrication Oil Bath
Reeving 2
Thermal Protection Yes
Control Cord 16 ft
Amps @ Low Volts 16.4 A
Number of Speeds 1
Trolley Configuration Push Trolley
Trolley Speed Not Applicable

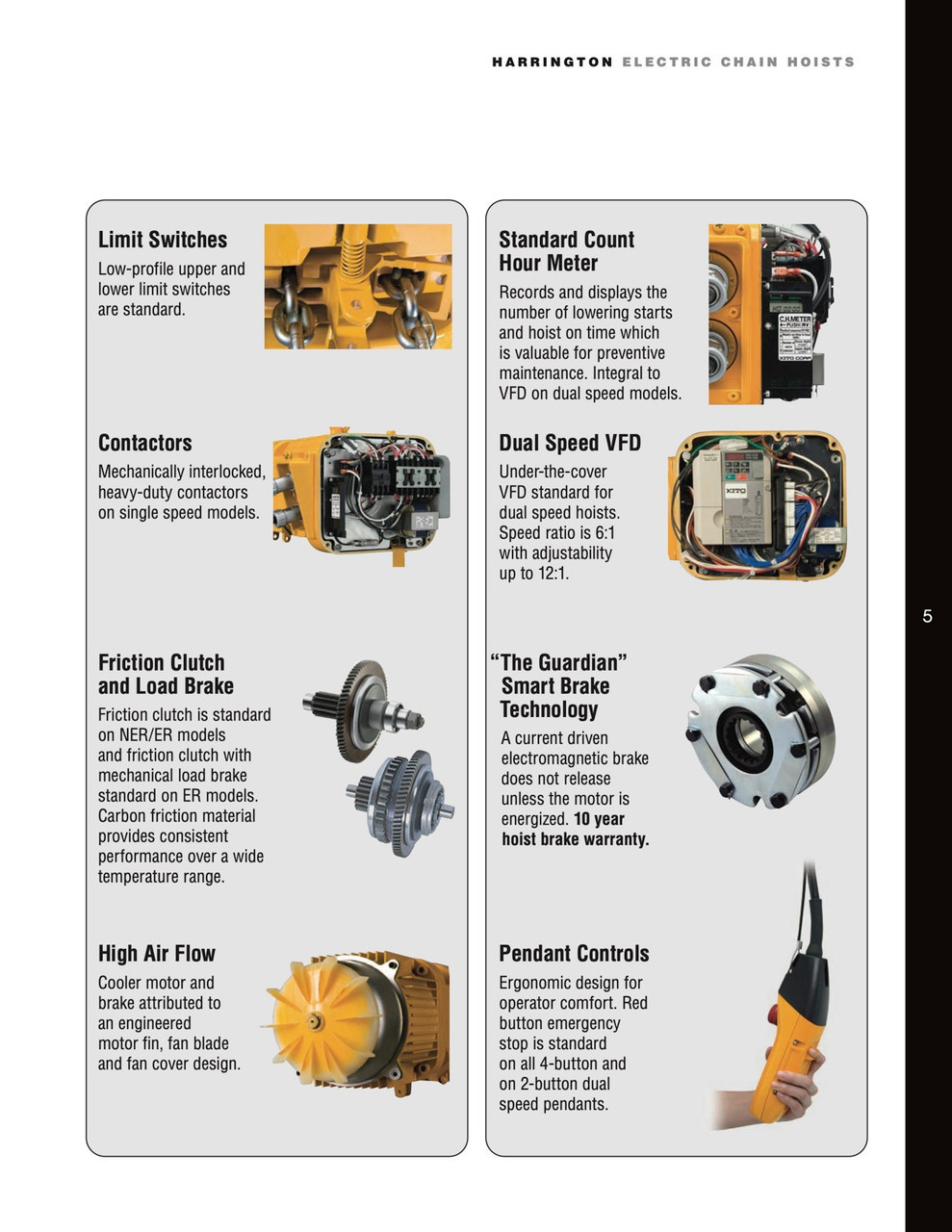

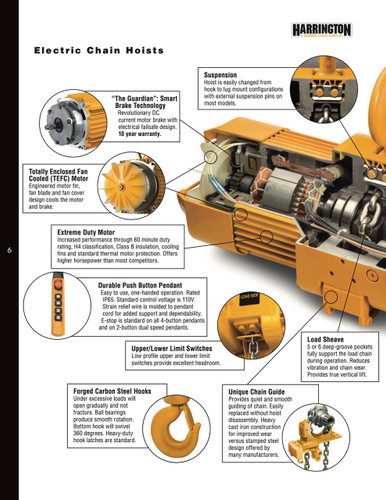

Features Count Hour Meter, Extreme Duty Motor, Push Trolley, Smart Brake Technology
Lifting Hook Material Carbon Steel
Includes Clutch Clutch Included
Overload Protection Included Yes
Brake Type DC Current
Chain Grade Grade 80
Maximum Lift Speed Not Applicable
Included Components Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Fixed Lift Speed 17 fpm
Clutch Type Friction Clutch
Minimum Lift Speed Not Applicable
Pendant IP Rating IP65
Chain Finish Nickel Plated
Controls =Mount Type=Push Trolley
Starts and Stops per Hour 360
Duty Classification H4
Maximum Pulling Capacity Not Applicable
Number of Reeves 2
Motor Horsepower 4 3/4 hp
Headroom 32 19/32 in
Includes Brake Brake Included
For Outdoor Use Yes
Hoist IP Rating IP55
Lifting Hook Type Swivel Hook with Safety Latch
Maximum Lifting Capacity 6,000 lb
Current at Minimum Voltage 16.4 A
Trolley Wheel Material Steel
Current at Maximum Voltage 7.9 A
Body Finish Enamel
Number of Load Chains 1
Body Material Aluminum
Trolley IP Rating Not Applicable
Programmable Non-Programmable
