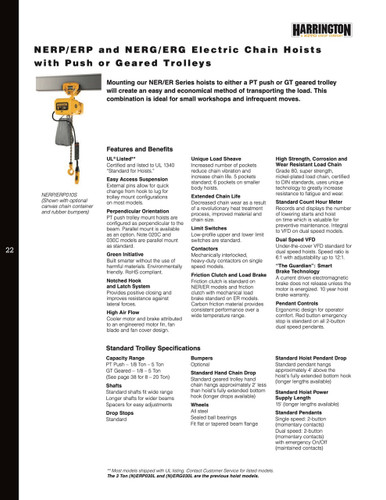

NERP Electric Chain Hoist with Push Trolley 20' Lift-Capacity 2 Tons, NERP020S Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

The NERP020S-20 HARRINGTON NERP Electric Chain Hoist with Push Trolley is a powerful and reliable solution for all your lifting needs. With a lifting capacity ranging from 2 Tons, this electric chain hoist is built to handle heavy loads with ease. Whether you're lifting small materials or large industrial equipment, this hoist is up to the task.Featuring a 20-foot lift, this electric chain hoist provides ample height for most applications. Whether you're working in a small workshop or a large industrial setting, this hoist will ensure that you can reach the desired height with ease. No more straining or struggling to access hard-to-reach areas.The push trolley included with the NERP020S-20 allows for convenient transportation of the load. With this trolley, you can easily move your load from one area to another without any hassle. Whether you're working on a construction site or a production floor, this trolley will help you transport materials efficiently and effectively.One of the key advantages of the NERP020S-20 HARRINGTON NERP Electric Chain Hoist with Push Trolley is its economical and efficient design. This hoist and trolley combination offers a cost-effective solution for your lifting needs. You don't have to break the bank to get a reliable and durable hoist. Harrington's NERP020S Electric Chain Hoist with Push Trolley delivers the quality and durability you can trust.Safety is always a top priority when it comes to lifting heavy loads. That's why you can rely on the NERP020S-20 HARRINGTON NERP Electric Chain Hoist with Push Trolley to get the job done safely. With its sturdy construction and advanced safety features, you can have peace of mind knowing that this hoist will handle your loads with care.In conclusion, the NERP020S-20 HARRINGTON NERP Electric Chain Hoist with Push Trolley is a powerful and reliable solution for all your lifting needs. With its versatile lifting capacity, convenient push trolley, economical design, and safety features, this hoist is the perfect choice for any lifting application. Trust in the quality and durability of Harrington's NERP020S Electric Chain Hoist with Push Trolley to get the job done safely and effectively.

Product Specifications

.

Part Number:

NERP020S-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Electric Chain Hoist, 4,000 lb, 20 ft, Push Trolley=Hoist Mount=Push Trolley

Includes:

10 Year Brake Warranty, Chain Container, Push Trolley, Quick Disconnect Plugs On Pendant And Power Cords

Lift Speed:

28 fpm

Housing Width:

16 13/16 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

9 1/2 in

Housing Length:

27 5/8 in

For Minimum Beam Flange Width:

3 1/4 in

For Maximum Beam Flange Width:

6 1/32 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

16 13/16 in

Body Depth:

9 1/2 in

For Minimum Beam Height:

5 in

Body Length:

27 5/8 in

Minimum Radius Curve:

59 3/32 in

Maximum Lifting Length:

20 ft

Controller Cord Length:

16 ft

Trolley Wheel Diameter:

5 in

Lifting Hook Opening Width:

1 19/32 in

Minimum Retracted Length:

25 19/32 in

Load Capacity:

4,000 lb

Minimum Between Hooks:

25 5/8 in

Motor HP:

4.7 hp

Phase:

3

Standards:

ANSI/ASME B30.16, ASME HST-1M, NFPA 70, RoHS Compliant, UL 1340

Voltage:

208/230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

16 ft

Amps @ Low Volts:

16.4 A

Number of Speeds:

1

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

Count Hour Meter, Extreme Duty Motor, Push Trolley, Smart Brake Technology

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

28 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Programmable by Internal Controls=Mount Type=Push Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

4 3/4 hp

Headroom:

25 19/32 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

4,000 lb

Current at Minimum Voltage:

16.4 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

7.9 A

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
