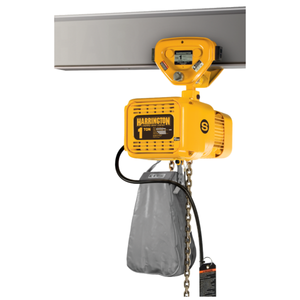

NERP Electric Chain Hoist with Push Trolley 20' Lift-Capacity 1 Tons NERP010S Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

The NERP010S-20 HARRINGTON Electric Chain Hoist with Push Trolley redefines efficiency in material handling, making it an indispensable asset for any workshop or industrial environment. Built to lift up to 1 ton and featuring a 20-foot lift capacity, this hoist is engineered for both strength and versatility, effortlessly transporting heavy loads while maximizing operational productivity.

One of the standout features of the NERP010S-20 is its user-friendly, easy-to-mount design. Quick and secure installation allows for immediate use, saving valuable time. The integrated push trolley provides exceptional maneuverability, allowing for seamless movement along horizontal tracks. This flexibility ensures that materials can be effortlessly transported to various areas within your workspace.

Dependability is at the core of this hoist‚ design. Crafted from high-quality materials, the NERP010S-20 promises robust performance and longevity, capable of tackling the demands of heavy-duty tasks day after day. With its smooth, efficient operation, users will experience minimal downtime, maximizing productivity and workflow.

Safety features are paramount in the design of the NERP Electric Chain Hoist. Equipped with overload protection and a safety clutch system, it mitigates risks associated with heavy lifting, safeguarding both personnel and equipment. This attention to safety allows users to operate with confidence, knowing the hoist effectively prioritizes risk management.

In summary, the NERP010S-20 HARRINGTON Electric Chain Hoist with Push Trolley stands out due to its reliability, durability, and straightforward functionality. Ideal for construction, manufacturing, and various industrial applications, this hoist significantly enhances productivity, making it a vital addition to your operational toolkit. Invest in the NERP010S-20 today and transform your heavy lifting operations with unparalleled efficiency and safety.

Product Specifications

.

Part Number:

NERP010S-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Electric Chain Hoist, 2,000 lb, 20 ft, Push Trolley=Hoist Mount=Push Trolley

Includes:

10 Year Brake Warranty, Chain Container, Push Trolley, Quick Disconnect Plugs On Pendant And Power Cords

Lift Speed:

28 fpm

Housing Width:

14 13/16 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

8 5/16 in

Housing Length:

23 1/2 in

For Minimum Beam Flange Width:

2 9/32 in

For Maximum Beam Flange Width:

5 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

14 13/16 in

Body Depth:

8 5/16 in

For Minimum Beam Height:

4 3/16 in

Body Length:

23 1/2 in

Minimum Radius Curve:

51 3/16 in

Maximum Lifting Length:

20 ft

Controller Cord Length:

16 ft

Trolley Wheel Diameter:

4 1/5 in

Lifting Hook Opening Width:

1 3/16 in

Minimum Retracted Length:

18 1/2 in

Load Capacity:

2,000 lb

Minimum Between Hooks:

18 1/2 in

Motor HP:

2.4 hp

Phase:

3

Standards:

ANSI/ASME B30.16, ASME HST-1M, NFPA 70, RoHS Compliant, UL 1340

Voltage:

208/230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

16 ft

Amps @ Low Volts:

8.6 A

Number of Speeds:

1

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

Count Hour Meter, Extreme Duty Motor, Push Trolley, Smart Brake Technology

Material:

Die Cast Aluminum

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

28 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Push Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

2 3/8 hp

Headroom:

18 1/2 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

2,000 lb

Current at Minimum Voltage:

8.6 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

4.2 A

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
