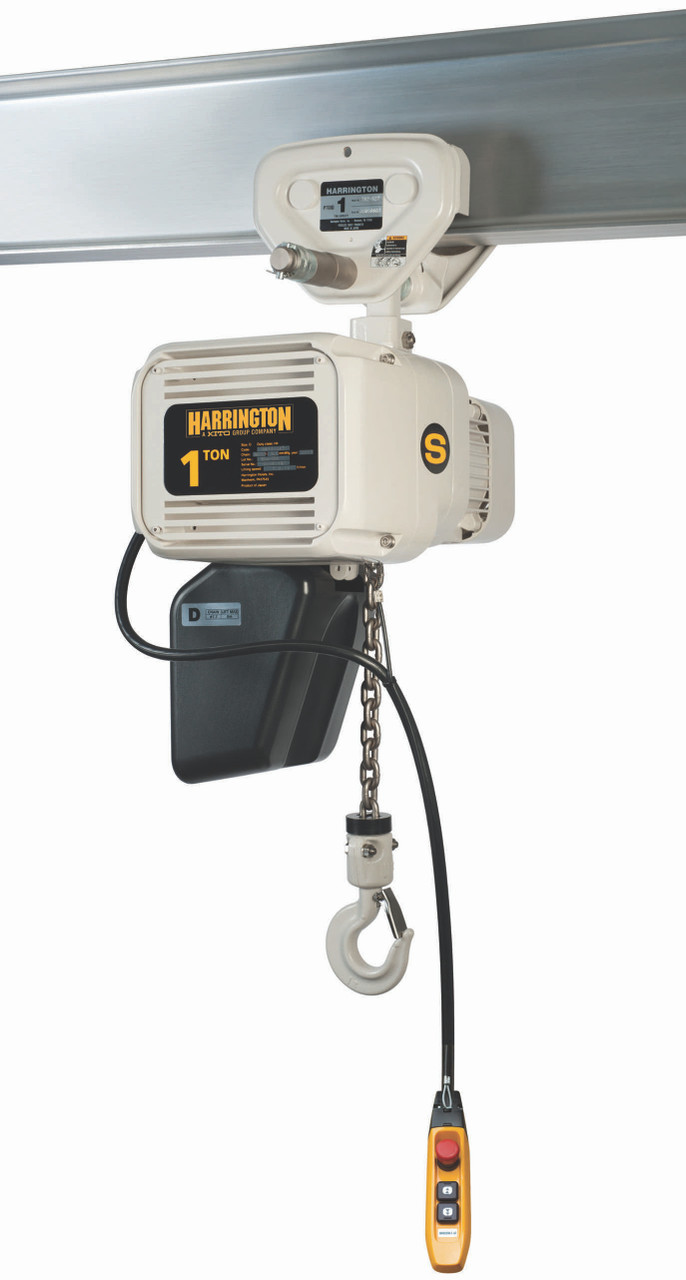

NERP-FG Electric Food Grade Chain Hoist with Push Trolley 15' Lift-Capacity 1 Tons NERP010L-FG Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

Upgrade your food processing or packaging operations with the NERP010L-FG-15 HARRINGTON NERP-FG Electric Food Grade Chain Hoist with Push Trolley. This electric hoist is designed to meet the high standards of the food industry, providing a hygienic and reliable solution for handling food products.With a maximum lift capacity of 1 Tons and a 15-foot lift, this electric hoist is capable of efficiently moving heavy loads with ease. Whether you need to lift and transport ingredients, packaging materials, or finished products, this hoist is up to the task. Its robust construction ensures durability and longevity, allowing you to rely on its performance for years to come.The food-grade design of the NERP010L-FG-15 Electric Chain Hoist ensures compliance with industry regulations and provides a clean and sanitary solution for your food-related processes. You can have peace of mind knowing that your products are being handled in a safe and hygienic manner, protecting both your customers and your brand reputation.One of the standout features of this electric hoist is the push trolley, which allows for smooth and precise horizontal movement. This means you can easily maneuver your loads across your workspace, improving productivity and efficiency. With the push trolley feature, you can quickly and accurately position your loads exactly where they need to be, reducing the risk of accidents and damage.Don't compromise on the cleanliness and efficiency of your food processing or packaging operations. Invest in the NERP010L-FG-15 HARRINGTON NERP-FG Electric Food Grade Chain Hoist with Push Trolley to upgrade your workflow. This reliable and durable hoist will help you streamline your processes, ensure maximum efficiency, and maintain the highest standards of cleanliness in your facility. Trust in the NERP010L-FG-15 electric hoist to enhance your productivity and deliver exceptional results.

Product Specifications

.

Part Number:

NERP010L-FG-15

Color:

White

Hoist Lift:

15 ft

Product:

Electric Chain Hoist, 2,000 lb, 15 ft, Push Trolley, White=Hoist Mount=Push Trolley

Includes:

Chain Container, Quick Disconnect Plugs On Pendant and Power Cord

Lift Speed:

14 fpm

Housing Width:

9 11/16 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

18 1/2 in

Housing Length:

24 1/8 in

For Minimum Beam Flange Width:

2 9/32 in

For Maximum Beam Flange Width:

5 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

9 11/16 in

Body Depth:

18 1/2 in

For Minimum Beam Height:

4 3/16 in

Body Length:

24 1/8 in

Minimum Radius Curve:

51 3/16 in

Maximum Lifting Length:

15 ft

Controller Cord Length:

11 ft

Trolley Wheel Diameter:

2 13/16 in

Lifting Hook Opening Width:

18 1/2 in

Minimum Retracted Length:

18 1/2 in

Load Capacity:

2,000 lb

Minimum Between Hooks:

18 1/2 in

Motor HP:

1.2 hp

Phase:

3

Standards:

ANSI/ASME B30.16, ANSI/ASME HST-1M, ANSI/NFPA 70

Voltage:

230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Food Grade Oil

Reeving:

1

Thermal Protection:

Yes

Control Cord:

11 ft

Amps @ Low Volts:

4.8 A

Number of Speeds:

1

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

FDA Approved Food-Safe Oil, Grease and Lubricants

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

14 fpm

Clutch Type:

Friction

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Push Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

1 1/4 hp

Headroom:

18 1/2 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

2,000 lb

Current at Minimum Voltage:

4.8 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

2.5 A

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
