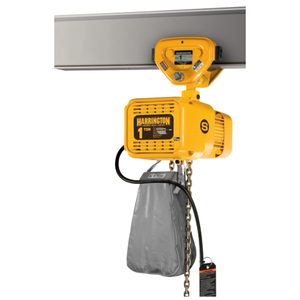

NERP Electric Chain Hoist with Push Trolley 20' Lift-Capacity 1 Tons NERP010L Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

The NERP010L-20 HARRINGTON Electric Chain Hoist with Push Trolley offers an innovative solution for efficient load handling, making it a must-have for any workshop or industrial environment. Engineered to lift loads of up to 1 ton with a commendable lift height of 20 feet, this hoist combines power and precision to streamline your operations.

Constructed with advanced engineering, the NERP electric chain hoist enhances functionality while ensuring durability. Its push trolley feature is a highlight, enabling easy maneuverability and positioning of heavy loads, thus simplifying your workflow. Operations become seamless; no longer will heavy lifting and clumsy rigging slow you down. Move effortlessly through your workspace, managing loads with confidence and control.

Designed for varied applications, from warehouses to construction sites, the NERP010L-20 is versatile enough to adapt to your specific needs. Its robust design withstands the toughest conditions, making it a reliable asset that promises longevity and consistent performance. With an ergonomic design focused on user comfort, this hoist reduces the physical strain associated with load handling, allowing operators to work smarter, not harder.

Investing in the NERP010L-20 Electric Chain Hoist with Push Trolley means prioritizing efficiency and safety in your lifting and transportation tasks. Elevate your operational capabilities with a tool that stands out not only for its performance but also for its capacity to transform the way you approach heavy lifting. The superior craftsmanship of Harrington assures users of quality and reliability, making this hoist an indispensable component of your productivity toolkit.

Choose the NERP010L-20 HARRINGTON Electric Chain Hoist with Push Trolley for dependable performance and elevate your efficiency today. Experience the difference of seamless load management and revolutionize your approach to heavy lifting tasks.

Product Specifications

.

Part Number:

NERP010L-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Electric Chain Hoist, 2,000 lb, 20 ft, Push Trolley=Hoist Mount=Push Trolley

Includes:

10 Year Brake Warranty, Chain Container, Push Trolley, Quick Disconnect Plugs On Pendant And Power Cords

Lift Speed:

14 fpm

Housing Width:

14 13/16 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

8 5/16 in

Housing Length:

23 1/4 in

For Minimum Beam Flange Width:

2 1/4 in

For Maximum Beam Flange Width:

5 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

14 13/16 in

Body Depth:

8 5/16 in

For Minimum Beam Height:

4 3/16 in

Body Length:

23 1/4 in

Minimum Radius Curve:

51 3/16 in

Maximum Lifting Length:

20 ft

Controller Cord Length:

16 ft

Trolley Wheel Diameter:

4 1/5 in

Lifting Hook Opening Width:

1 3/16 in

Minimum Retracted Length:

18 1/2 in

Load Capacity:

2,000 lb

Minimum Between Hooks:

18 1/2 in

Motor HP:

1.2 hp

Phase:

3

Standards:

ANSI/ASME B30.16, ASME HST-1M, NFPA 70, RoHS Compliant, UL 1340

Voltage:

208/230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

16 ft

Amps @ Low Volts:

4.8 A

Number of Speeds:

1

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

Count Hour Meter, Extreme Duty Motor, Push Trolley, Smart Brake Technology

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

14 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Programmable by Internal Controls=Mount Type=Push Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

1 1/4 hp

Headroom:

18 1/2 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

2,000 lb

Current at Minimum Voltage:

4.8 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

2.5 A

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
