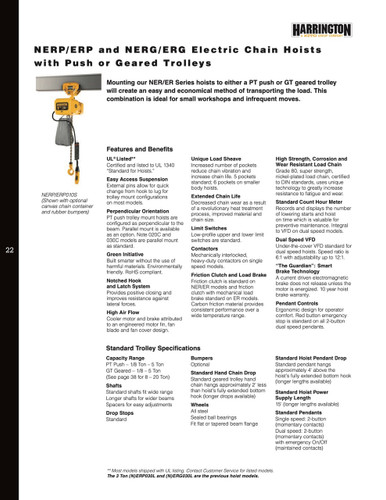

NERP Electric Chain Hoist with Push Trolley 15' Lift-Capacity 1 Tons NERP010L Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

The NERP010L-15 HARRINGTON Electric Chain Hoist with Push Trolley is an essential tool designed for efficiency and convenience in any workshop or workspace. With a robust lift capacity of 1 ton, this electric chain hoist tackles heavy load transportation with ease. Ideal for various applications, this hoist allows you to effortlessly lift and move small to large items, making it a versatile addition to your toolkit.

Featuring a generous 15-foot lift height, the NERP010L-15 provides ample reach for both vertical lifting and horizontal movement, enabling you to navigate your workspace efficiently. Whether you‚re lifting machinery, materials, or other heavy objects, this hoist simplifies the process and enhances productivity. The push trolley feature adds further convenience, allowing for smooth lateral movement of loads, making it suitable for assembly lines, warehouses, or garages alike.

Quality construction is at the forefront of the NERP Electric Chain Hoist, ensuring durability and long-lasting performance. Designed to handle repetitive tasks with reliability, this hoist minimizes wear and tear while maintaining its effectiveness. Users can trust its safety features, making it an ideal choice for frequent operation.

A standout benefit of the NERP010L-15 is the reduction of physical strain associated with manual lifting. By utilizing this electric chain hoist, users can save time and energy, shifting heavy loads effortlessly without the risk of injuries or fatigue. This innovative tool significantly enhances workplace efficiency and safety, making heavy lifting an easy task.

Ultimately, the NERP010L-15 HARRINGTON Electric Chain Hoist with Push Trolley is the perfect solution for those seeking reliable, powerful, and efficient handling of heavy loads. Experience the ease of modern lifting technology and elevate your workspace productivity with this exceptional hoist.

Product Specifications

.

Part Number:

NERP010L-15

Color:

Yellow

Hoist Lift:

15 ft

Product:

Electric Chain Hoist, 2,000 lb, 15 ft, Push Trolley=Hoist Mount=Push Trolley

Includes:

10 Year Brake Warranty, Chain Container, Push Trolley, Quick Disconnect Plugs On Pendant And Power Cords

Lift Speed:

14 fpm

Housing Width:

14 13/16 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

8 5/16 in

Housing Length:

23 1/4 in

For Minimum Beam Flange Width:

2 1/4 in

For Maximum Beam Flange Width:

5 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

14 13/16 in

Body Depth:

8 5/16 in

For Minimum Beam Height:

4 3/16 in

Body Length:

23 1/4 in

Minimum Radius Curve:

51 3/16 in

Maximum Lifting Length:

15 ft

Controller Cord Length:

11 ft

Trolley Wheel Diameter:

4 1/5 in

Lifting Hook Opening Width:

1 3/16 in

Minimum Retracted Length:

18 1/2 in

Load Capacity:

2,000 lb

Minimum Between Hooks:

18 1/2 in

Motor HP:

1.2 hp

Phase:

3

Standards:

ANSI/ASME B30.16, ASME HST-1M, NFPA 70, RoHS Compliant, UL 1340

Voltage:

208/230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Classification:

H4

Control:

11 ft

Control Cord:

11 ft

Amps @ Low Volts:

4.8 A

Number of Speeds:

1

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

Count Hour Meter, Extreme Duty Motor, Push Trolley, Smart Brake Technology

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

14 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Push Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

1 1/4 hp

Headroom:

18 1/2 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

2,000 lb

Current at Minimum Voltage:

4.8 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

2.5 A

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
