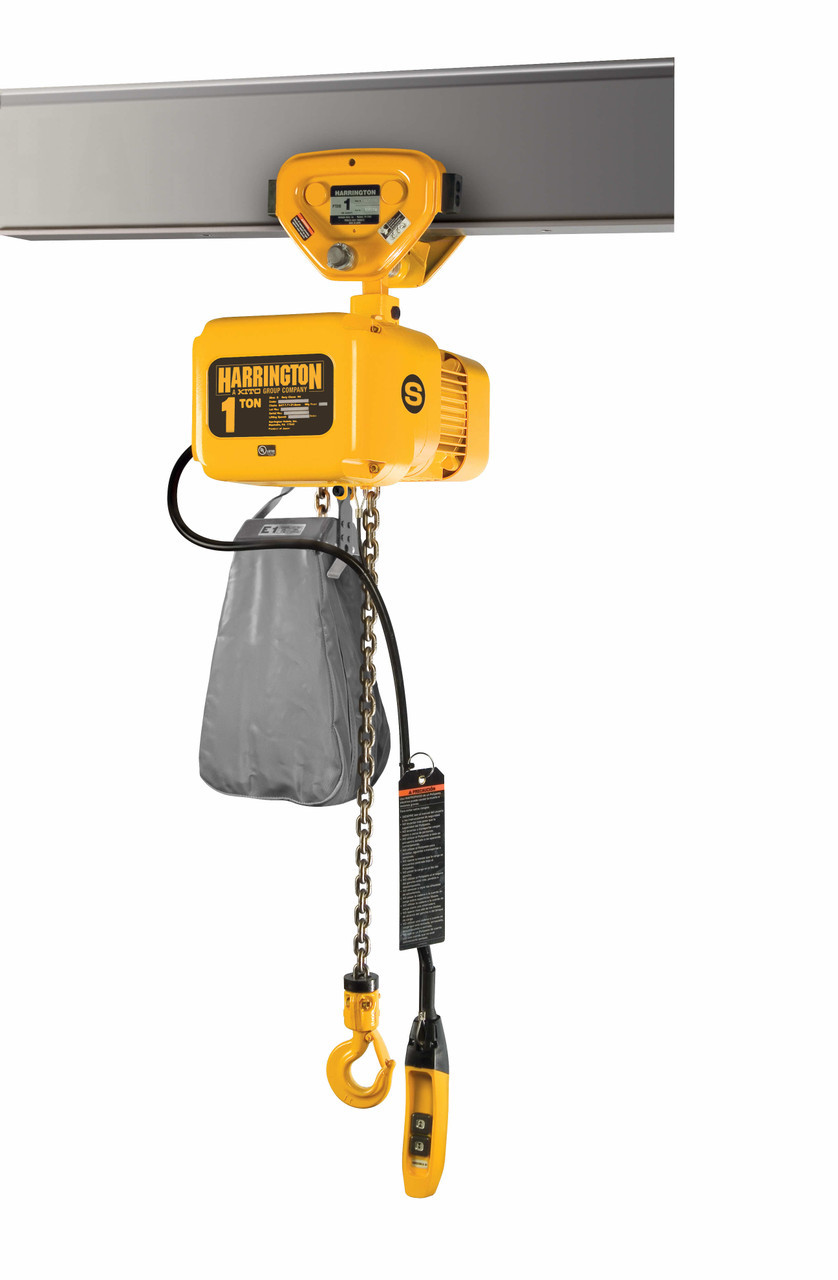

NERP Electric Chain Hoist with Push Trolley 10' Lift-Capacity 1 Tons NERP010L Electric Chain Hoist with Push Trolley HARRINGTON
Write a Review
Write a Review
HARRINGTON HOIST
NERP Electric Chain Hoist with Push Trolley 10' Lift-Capacity 1 Tons NERP010L Electric Chain Hoist with Push Trolley HARRINGTON
$4,151.26
$3,592.70
(You save
$558.56
)
SKU:
NERP010L-10-10
Condition:
New
Availability:
In stock
Weight:
121.00 LBS
Shipping:
Free Shipping
Part Number:
NERP010L-10
Color:
Yellow
Hoist Lift:
10 ft
Product:
Electric Chain Hoist, 2,000 lb, 10 ft, Push Trolley=Hoist Mount=Push Trolley
Includes:
10 Year Brake Warranty, Chain Container, Push Trolley, Quick Disconnect Plugs On Pendant And Power Cords
Lift Speed:
14 fpm
Housing Width:
14 13/16 in
Manufacturers Warranty Length:
10 yr Brake Warranty, 3 yr
Housing Depth:
8 5/16 in
Housing Length:
23 1/4 in
For Minimum Beam Flange Width:
2 1/4 in
For Maximum Beam Flange Width:
5 in
For Maximum Beam Height:
Not Applicable
MFR Warranty Length:
1 yr
Body Width:
14 13/16 in
Body Depth:
8 5/16 in
For Minimum Beam Height:
4 3/16 in
Body Length:
23 1/4 in
Minimum Radius Curve:
51 3/16 in
Maximum Lifting Length:
10 ft
Controller Cord Length:
6 ft
Trolley Wheel Diameter:
4 1/5 in
Lifting Hook Opening Width:
1 3/16 in
Minimum Retracted Length:
18 1/2 in
Load Capacity:
2,000 lb
Minimum Between Hooks:
18 1/2 in
Motor HP:
1.2 hp
Phase:
3
Standards:
ANSI/ASME B30.16, ASME HST-1M, NFPA 70, RoHS Compliant, UL 1340
Voltage:
208/230/460V
Fits Brand:
Harrington Hoists Inc
Lubrication:
Oil Bath
Reeving:
1
Thermal Protection:
Yes
Control Cord:
6 ft
Amps @ Low Volts:
4.8 A
Number of Speeds:
1
Trolley Configuration:
Push Trolley
Trolley Speed:
Not Applicable
Features:
Count Hour Meter, Extreme Duty Motor, Push Trolley, Smart Brake Technology
Lifting Hook Material:
Carbon Steel
Includes Clutch:
Clutch Included
Overload Protection Included:
Yes
Brake Type:
DC Current
Chain Grade:
Grade 80
Maximum Lift Speed:
Not Applicable
Included Components:
Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Fixed Lift Speed:
14 fpm
Clutch Type:
Friction Clutch
Minimum Lift Speed:
Not Applicable
Pendant IP Rating:
IP65
Chain Finish:
Nickel Plated
Controls:
=Mount Type=Push Trolley
Starts and Stops per Hour:
360
Duty Classification:
H4
Maximum Pulling Capacity:
Not Applicable
Number of Reeves:
1
Motor Horsepower:
1 1/4 hp
Headroom:
18 1/2 in
Includes Brake:
Brake Included
For Outdoor Use:
Yes
Hoist IP Rating:
IP55
Lifting Hook Type:
Swivel Hook with Safety Latch
Maximum Lifting Capacity:
2,000 lb
Current at Minimum Voltage:
4.8 A
Trolley Wheel Material:
Steel
Current at Maximum Voltage:
2.5 A
Body Finish:
Enamel
Number of Load Chains:
1
Body Material:
Aluminum
Trolley IP Rating:
Not Applicable
Programmable:
Non-Programmable
The NERP010L-10 HARRINGTON NERP Electric Chain Hoist with Push Trolley is the perfect solution for your material handling needs. With a lifting capacity ranging from 1 Tons this powerful hoist can handle heavy loads with ease. The 10-foot lift allows for easy transportation, saving you time and effort.What sets the NERP010L Electric Chain Hoist with Push Trolley apart is its exceptional quality and seamless operation. Built to withstand even the toughest conditions, this hoist ensures long-lasting performance that you can rely on. Say goodbye to equipment breakdowns and malfunctions that slow you down.The push trolley feature of this hoist is a game-changer. It allows for easy horizontal movement, making transportation a breeze. Navigating through your workshop or job site has never been easier. No need for additional equipment or manpower, the push trolley does it all.Not only is the NERP010L Electric Chain Hoist with Push Trolley reliable, but it is also an affordable choice for your material handling needs. Enjoy efficient and effective operation without breaking the bank. This hoist and trolley combo offers a cost-effective solution that maximizes both efficiency and mobility.Invest in the NERP010L-10 HARRINGTON NERP Electric Chain Hoist with Push Trolley and experience the ultimate convenience in material handling. Whether you're a small workshop or a large industrial facility, this hoist will streamline your operations and make moving heavy loads a breeze. Trust in its exceptional quality and unmatched performance to get the job done right. Don't settle for less when it comes to your material handling needs. Choose the NERP010L Electric Chain Hoist with Push Trolley for superior performance and durability.
