SKU:
NERP005L-FG-20-20
Condition:
New
Availability:
In stock
Weight:
256.90 LBS
Shipping:
Free Shipping
Part Number:
NERP005L-FG-20
Color:
White
Hoist Lift:
20 ft
Product:

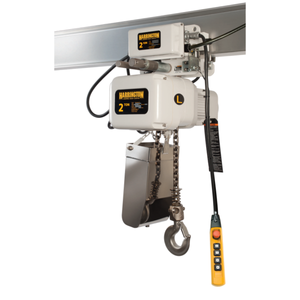

Electric Chain Hoist, 1,000 lb, 20 ft, Push Trolley, White=Hoist Mount=Push Trolley
Includes:
Chain Container, Quick Disconnect Plugs On Pendant and Power Cord
Lift Speed:
15 fpm
Housing Width:
8 1/2 in
Manufacturers Warranty Length:
10 yr Brake Warranty, 3 yr
Housing Depth:
16 5/16 in
Housing Length:
22 3/8 in
For Minimum Beam Flange Width:
2 9/32 in
For Maximum Beam Flange Width:
4 in
For Maximum Beam Height:
Not Applicable
MFR Warranty Length:
1 yr
Body Width:
8 1/2 in
Body Depth:
16 5/16 in
For Minimum Beam Height:
3 3/16 in
Body Length:
22 3/8 in
Minimum Radius Curve:
43 5/16 in
Maximum Lifting Length:
20 ft
Controller Cord Length:
16 ft
Trolley Wheel Diameter:
2 23/64 in
Lifting Hook Opening Width:
16 5/16 in
Minimum Retracted Length:
16 5/16 in
Load Capacity:
1,000 lb
Minimum Between Hooks:
16 5/16 in
Motor HP:
0.75 hp
Phase:
3
Standards:
ANSI/ASME B30.16, ANSI/ASME HST-1M, ANSI/NFPA 70
Voltage:
230/460V
Fits Brand:
Harrington Hoists Inc
Lubrication:
Food Grade Oil
Reeving:
1
Thermal Protection:
Yes
Classification:
H4
Control Cord:
16 ft
Finish:
Epoxy Paint
Amps @ Low Volts:
3.4 A
Number of Speeds:
1
Trolley Configuration:
Push Trolley
Trolley Speed:
Not Applicable
Features:
FDA Approved Food-Safe Oil, Grease and Lubricants
Lifting Hook Material:
Carbon Steel
Includes Clutch:
Clutch Included
Overload Protection Included:
Yes
Brake Type:
DC Current
Chain Grade:
Grade 80
Maximum Lift Speed:
Not Applicable
Included Components:
Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Fixed Lift Speed:
15 fpm
Clutch Type:
Friction
Minimum Lift Speed:
Not Applicable
Pendant IP Rating:
IP65
Chain Finish:
Nickel Plated
Controls:
Push Button Pendant=Mount Type=Push Trolley
Starts and Stops per Hour:
360
Duty Classification:
H4
Maximum Pulling Capacity:
Not Applicable
Number of Reeves:
1
Motor Horsepower:
3/4 hp
Headroom:
16 5/16 in
Includes Brake:
Brake Included
For Outdoor Use:
Yes
Lifting Hook Type:
Swivel Hook with Safety Latch
Maximum Lifting Capacity:
1,000 lb
Current at Minimum Voltage:
3.4 A
Trolley Wheel Material:
Steel
Current at Maximum Voltage:
1.7 A
Body Finish:
Epoxy Painted
Number of Load Chains:
1
Body Material:
Aluminum
Trolley IP Rating:
Not Applicable
Programmable:
Non-Programmable
