Product Overview

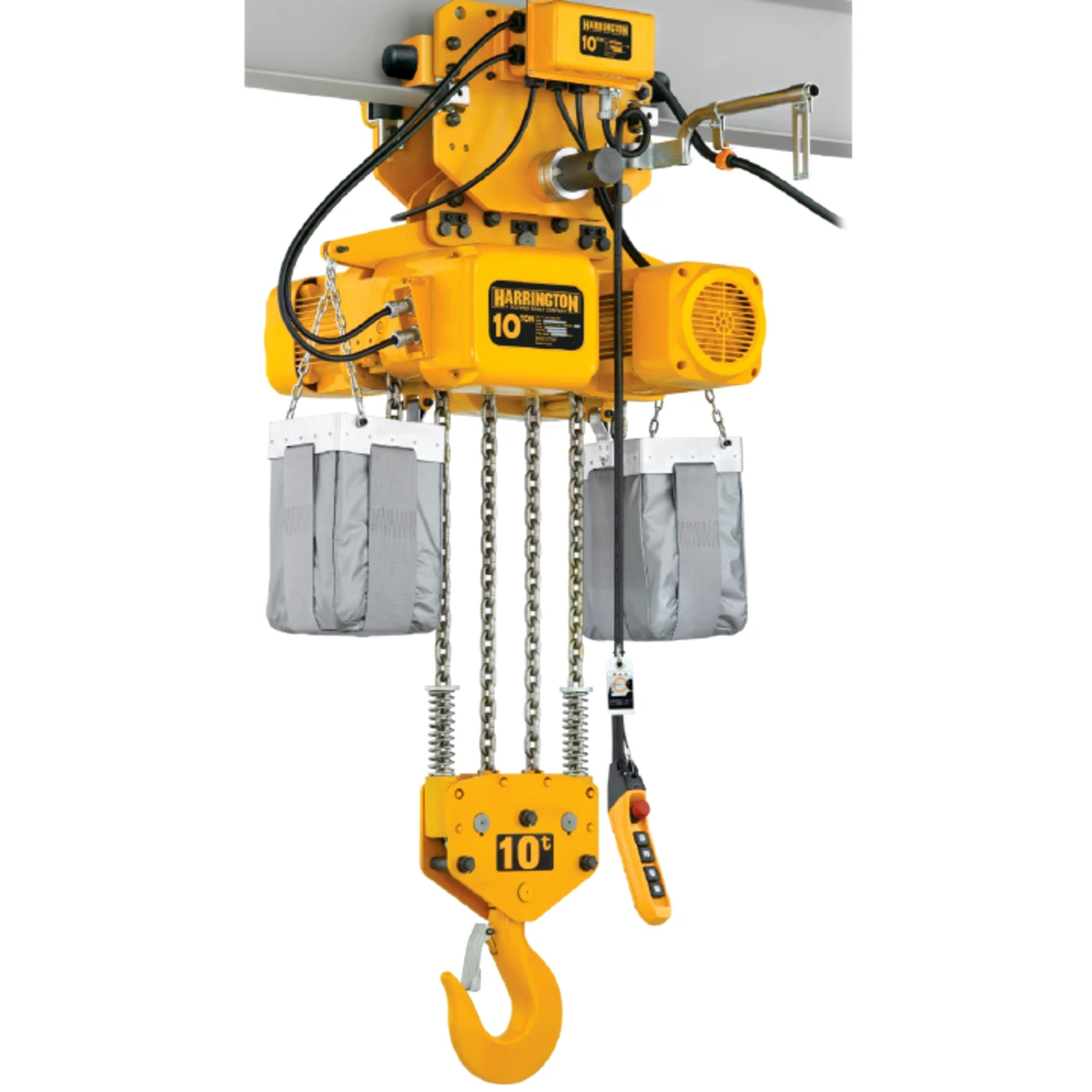

The NERM100L-L-10 HARRINGTON Electric Chain Hoist with Motorized Trolley offers a robust and efficient solution for all your heavy lifting needs. Engineered for exceptional performance, this electric chain hoist boasts an impressive lift capacity of up to 10 tons, making it ideal for a myriad of demanding applications, from industrial settings to construction sites.Featuring an innovative motorized trolley, the NERM100L-L-10 enhances operational efficiency with smooth and precise horizontal movement. This eliminates the hassle of manual adjustments and allows for seamless positioning, saving you both time and effort on the job. Whether you need to reposition materials or align heavy loads meticulously, this hoist‚ motorized trolley feature ensures optimal accuracy.
Constructed to endure the most challenging environments, the NERM100L-L-10 is fully sealed and outdoor-rated, reflecting its durability and reliability. It is engineered to perform consistently, regardless of conditions‚ be it dust, moisture, or extreme temperatures. This means you can rely on its performance, whether you‚re lifting in a crowded warehouse or outdoors in unpredictable weather.
Investing in the NERM100L-L-10 means stepping away from outdated manual hoists and embracing modern technology designed for convenience and productivity. With its unparalleled lifting capabilities and user-friendly operation, this electric chain hoist is a game-changer for professionals who demand quality and performance in their equipment.
Choose HARRINGTON for superior craftsmanship and trustworthiness. The NERM100L-L-10 Electric Chain Hoist Motorized Trolley not only meets heavy lifting demands but also enhances the overall efficiency of your operations, setting a new standard for excellence in lifting solutions.
Product Specifications
.Product Videos
Videos Hide Videos Show Videos
Custom Field
Part Number NERM100L-L-10
Color Yellow
Hoist Lift 10 ft
Product Electric Chain Hoist, 20,000 lb, 10 ft, Motorized Trolley=Hoist Mount=Motorized Trolley
Includes Chain Container, Guardian Smart Brake, Motorized Trolley
Lift Speed 5.5 fpm
Housing Width 13 1/4 in
Manufacturers Warranty Length 10 yr Brake Warranty, 3 yr
Housing Depth 10 1/2 in
Housing Length 28 7/8 in
For Minimum Beam Flange Width 5 1/2 in
For Maximum Beam Flange Width 8 21/32 in
For Maximum Beam Height Not Applicable
MFR Warranty Length 1 yr
Body Width 13 1/4 in
Body Depth 10 1/2 in
For Minimum Beam Height 6 29/32 in
Body Length 28 7/8 in
Minimum Radius Curve 98 13/32 in
Maximum Lifting Length 10 ft
Controller Cord Length 6 ft
Trolley Wheel Diameter 6 9/10 in
Lifting Hook Opening Width 3 3/16 in
Minimum Retracted Length 46 1/2 in
Load Capacity 20,000 lb
Minimum Between Hooks 46 1/2 in
Motor HP 4.7 hp
Phase 3
Standards ANSI/ASME B30.16, ASME HST-1M, NFPA 70, RoHS Compliant, UL 1340
Voltage 208/230/460
Lubrication Oil Bath
Clutch Friction Clutch
Reeving 4
Thermal Protection Yes
Control Cord 6 ft
Amps @ Low Volts 21.5 A
Number of Speeds 1
Trolley Configuration Motorized Trolley
Trolley Speed 40 fpm
Features Dual Speed Trolley VFD, Rubber Bumpers, Side Guide Rollers
Lifting Hook Material Carbon Steel
Includes Clutch Clutch Included
Overload Protection Included Yes
Brake Type DC Current
Chain Grade Grade 80
Maximum Lift Speed Not Applicable
Included Components Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Fixed Lift Speed 5.5 fpm
Clutch Type Friction Clutch
Minimum Lift Speed Not Applicable
Pendant IP Rating IP65
Chain Finish Nickel Plated
Controls Push Button Pendant=Mount Type=Motorized Trolley
Starts and Stops per Hour 360
Duty Classification H4
Maximum Pulling Capacity Not Applicable
Number of Reeves 4
Motor Horsepower 4 3/4 hp
Headroom 46 1/2 in
Includes Brake Brake Included
For Outdoor Use Yes
Hoist IP Rating IP55
Lifting Hook Type Swivel Hook with Safety Latch
Maximum Lifting Capacity 20,000 lb
Current at Minimum Voltage 5.1 A
Trolley Wheel Material Steel
Current at Maximum Voltage 1.7 A
Body Finish Enamel
Number of Load Chains 1
Body Material Aluminum
Trolley IP Rating IP55
Programmable Non-Programmable
