Product Overview

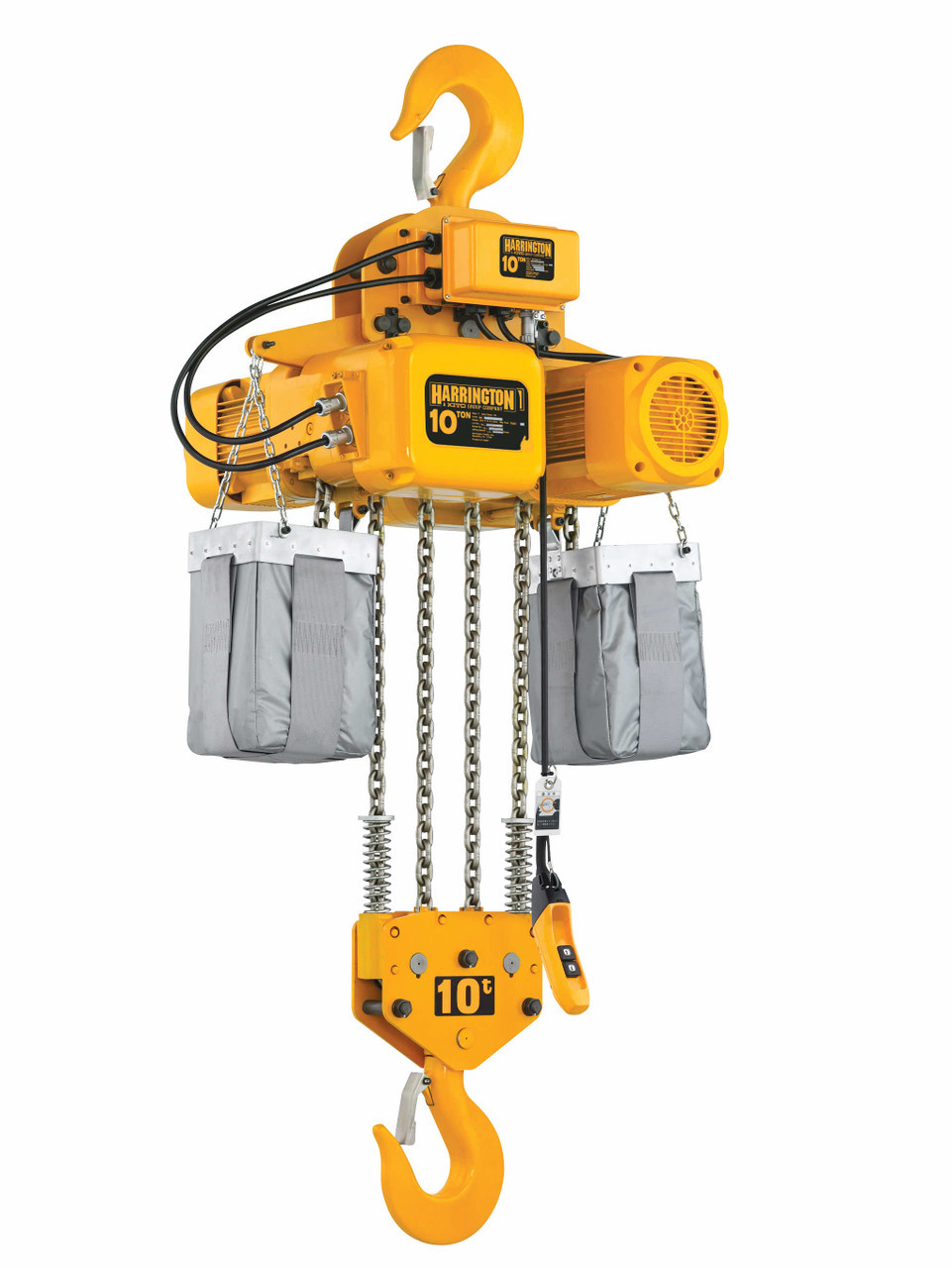

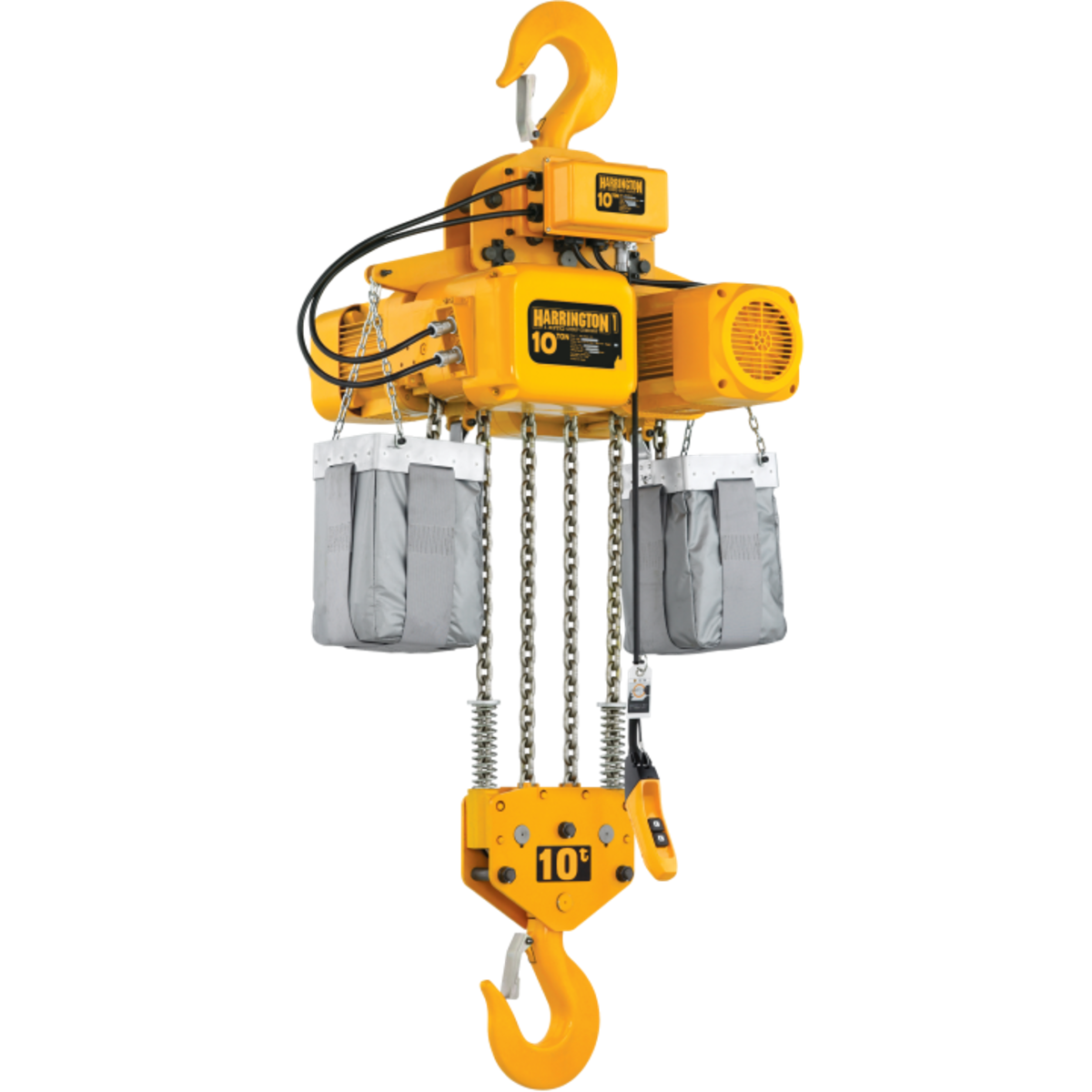

The NER100S-20 HARRINGTON NER Electric Chain Hoist is a game-changer when it comes to lifting heavy loads. With its superior design and top-notch performance, this electric hoist is built to handle the toughest jobs in any industry.Equipped with a lifting capacity ranging from 10 ton , this hoist can effortlessly handle heavy loads without breaking a sweat. Whether you're working in construction, manufacturing, or any other industry that requires heavy lifting, the NER100S electric chain hoist is the perfect solution for your needs.Durability is a key feature of the NER100S-20 HARRINGTON NER Electric Chain Hoist. Crafted with precision and using only the highest quality materials, this hoist is designed to withstand even the harshest working conditions. Rest assured that this hoist will get the job done efficiently and effectively, time and time again.Safety is paramount when it comes to lifting heavy loads, and the NER100S electric chain hoist is engineered with this in mind. With its reliable and robust construction, this hoist ensures the utmost safety for both the operator and the load being lifted. You can have peace of mind knowing that you're investing in a product that prioritizes safety above all else.When it comes to lifting capabilities, ease of use, and overall performance, the NER100S-20 HARRINGTON NER Electric Chain Hoist is truly a cut above the rest. Upgrade your lifting capabilities and experience the power and reliability of Harrington's NER series. Invest in the best and make your heavy lifting tasks a breeze with the NER100S-20 HARRINGTON NER Electric Chain Hoist.Product Specifications
.Product Videos
Videos Hide Videos Show Videos
Custom Field
Part Number NER100S-20
Color Yellow
Hoist Lift 20 ft
Product Electric Chain Hoist, 20,000 lb, 20 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley
Includes Chain Container, Quick Disconnect Plugs On Pendant and Power Cords, 10 yr Brake Warranty
Lift Speed 11 fpm
Housing Width 47 3/16 in
Manufacturers Warranty Length 10 yr Brake Warranty, 3 yr
Housing Depth 10 1/2 in
Housing Length 31 7/16 in
For Minimum Beam Flange Width Not Applicable
For Maximum Beam Flange Width Not Applicable
For Maximum Beam Height Not Applicable
MFR Warranty Length 1 yr
Body Width 47 3/16 in
Body Depth 10 1/2 in
For Minimum Beam Height Not Applicable
Body Length 31 7/16 in
Minimum Radius Curve Not Applicable
Maximum Lifting Length 20 ft
Controller Cord Length 16 ft
Trolley Wheel Diameter Not Applicable
Lifting Hook Opening Width 3 3/16 in
Minimum Retracted Length 53 29/32 in
Load Capacity 20,000 lb
Minimum Between Hooks 53 15/16 in
Motor HP 4.7 hp x2
Phase 3
Standards ANSI/ASME B30.16, ASME HST-1M, NFPA 70, RoHS Compliant, UL 1340
Voltage 208/230/460V
Fits Brand Harrington Hoists Inc
Lubrication Oil Bath
Reeving 8
Thermal Protection Yes
Control 110V Push Button Control Pendant
Control Cord 16 ft
Amps @ Low Volts 16.4 x 2
Number of Speeds 1
Trolley Configuration Hook Mounted
Trolley Speed Not Applicable
Features Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option
Material Die Cast Aluminum
Lifting Hook Material Carbon Steel
Includes Clutch Clutch Included
Overload Protection Included Yes
Brake Type DC Current
Chain Grade Grade 80
Maximum Lift Speed Not Applicable
Included Components Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Fixed Lift Speed 11 fpm
Clutch Type Friction
Minimum Lift Speed Not Applicable
Pendant IP Rating IP65
Chain Finish Nickel Plated
Controls Push Button Pendant=Mount Type=Hook Mounted-No Trolley
Starts and Stops per Hour 360
Duty Classification H4
Maximum Pulling Capacity Not Applicable
Number of Reeves 8
Motor Horsepower 4 3/4 hp
Headroom 53 29/32 in
Includes Brake Brake Included
For Outdoor Use Yes
Hoist IP Rating IP55
Lifting Hook Type Swivel Hook with Safety Latch
Maximum Lifting Capacity 20,000 lb
Current at Minimum Voltage 32.8 A
Trolley Wheel Material Not Applicable
Current at Maximum Voltage 15.8 A
Body Finish Enamel
Number of Load Chains 1
Body Material Aluminum
Trolley IP Rating Not Applicable
Programmable Non-Programmable
