SKU:
NER100S-15-15
Condition:
New
Availability:
In stock
Weight:
117.50 LBS
Shipping:
Free Shipping
Part Number:
NER100S-15
Color:
Yellow
Hoist Lift:
15 ft
Product:

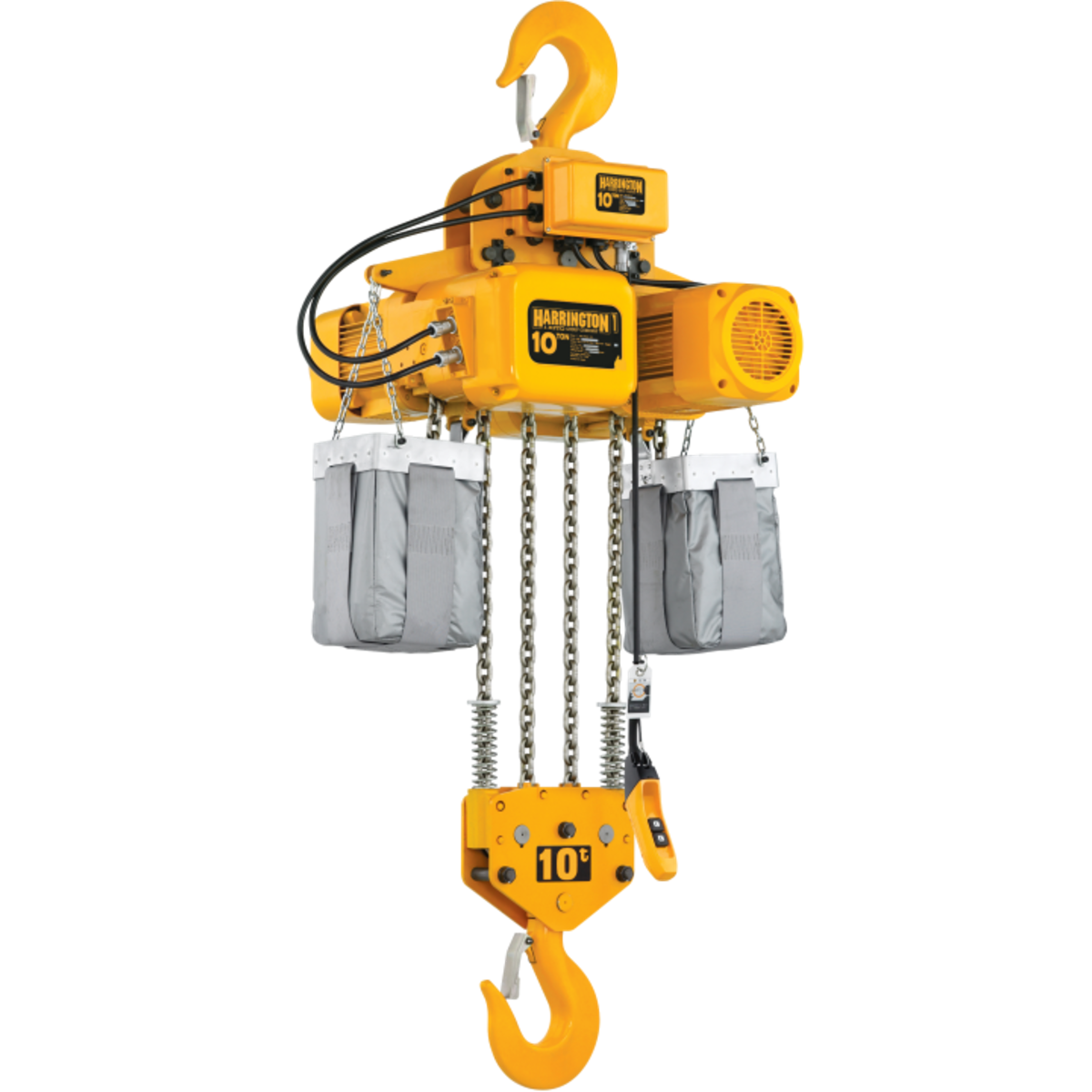

Electric Chain Hoist, 20,000 lb, 15 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley
Includes:
Chain Container, Quick Disconnect Plugs On Pendant and Power Cords, 10 yr Brake Warranty
Lift Speed:
11 fpm
Housing Width:
47 3/16 in
Manufacturers Warranty Length:
10 yr Brake Warranty, 3 yr
Housing Depth:
10 1/2 in
Housing Length:
31 7/16 in
For Minimum Beam Flange Width:
Not Applicable
For Maximum Beam Flange Width:
Not Applicable
For Maximum Beam Height:
Not Applicable
MFR Warranty Length:
1 yr
Body Width:
47 3/16 in
Body Depth:
10 1/2 in
For Minimum Beam Height:
Not Applicable
Body Length:
31 7/16 in
Minimum Radius Curve:
Not Applicable
Maximum Lifting Length:
15 ft
Controller Cord Length:
11 ft
Trolley Wheel Diameter:
Not Applicable
Lifting Hook Opening Width:
3 3/16 in
Minimum Retracted Length:
53 29/32 in
Load Capacity:
20,000 lb
Minimum Between Hooks:
53 15/16 in
Motor HP:
4.7 hp x2
Phase:
3
Standards:
ANSI/ASME B30.16, ASME HST-1M, NFPA 70, RoHS Compliant, UL 1340
Voltage:
208/230/460V
Fits Brand:
Harrington Hoists Inc
Lubrication:
Oil Bath
Item:
Electric Chain Hoist
Reeving:
8
Thermal Protection:
Yes
Control Cord:
11 ft
Amps @ Low Volts:
16.4 x 2
Number of Speeds:
1
Trolley Configuration:
Hook Mounted
Trolley Speed:
Not Applicable
Features:

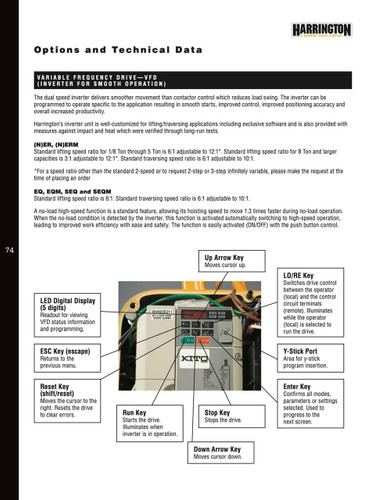

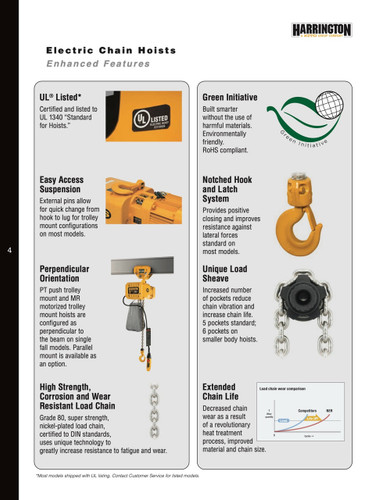

Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option
Material:
Die Cast Aluminum
Lifting Hook Material:
Carbon Steel
Includes Clutch:
Clutch Included
Overload Protection Included:
Yes
Brake Type:
DC Current
Chain Grade:
Grade 80
Maximum Lift Speed:
Not Applicable
Included Components:
Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Fixed Lift Speed:
11 fpm
Clutch Type:
Friction
Minimum Lift Speed:
Not Applicable
Pendant IP Rating:
IP65
Chain Finish:
Nickel Plated
Controls:
Push Button Pendant=Mount Type=Hook Mounted-No Trolley
Starts and Stops per Hour:
360
Duty Classification:
H4
Maximum Pulling Capacity:
Not Applicable
Number of Reeves:
8
Motor Horsepower:
4 3/4 hp
Headroom:
53 29/32 in
Includes Brake:
Brake Included
For Outdoor Use:
Yes
Hoist IP Rating:
IP55
Lifting Hook Type:
Swivel Hook with Safety Latch
Maximum Lifting Capacity:
20,000 lb
Current at Minimum Voltage:
32.8 A
Trolley Wheel Material:
Not Applicable
Current at Maximum Voltage:
15.8 A
Body Finish:
Enamel
Number of Load Chains:
1
Body Material:
Aluminum
Trolley IP Rating:
Not Applicable
Programmable:
Non-Programmable
