Custom Field
Part Number NER100S-10
Color Yellow
Hoist Lift 10 ft

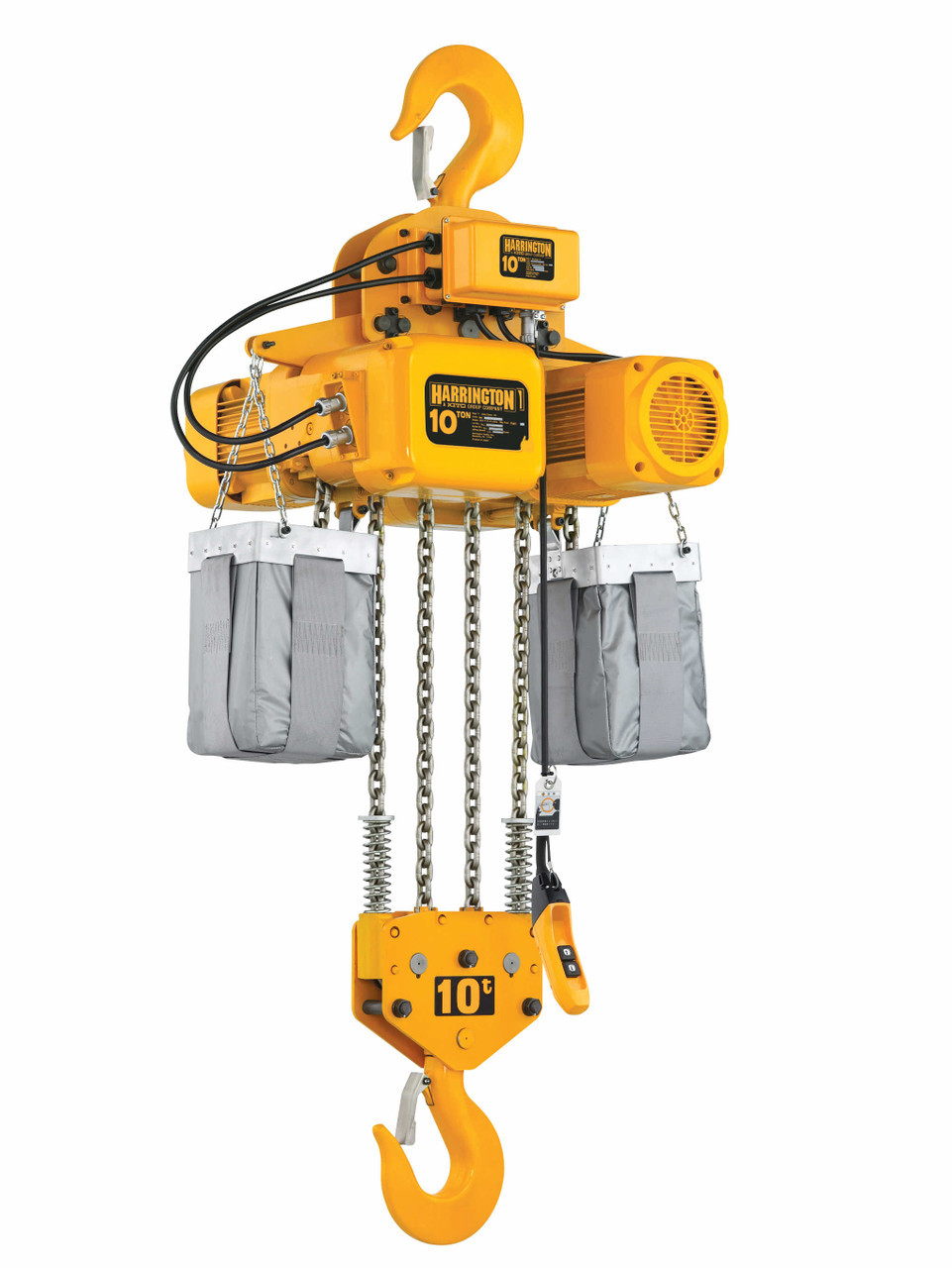

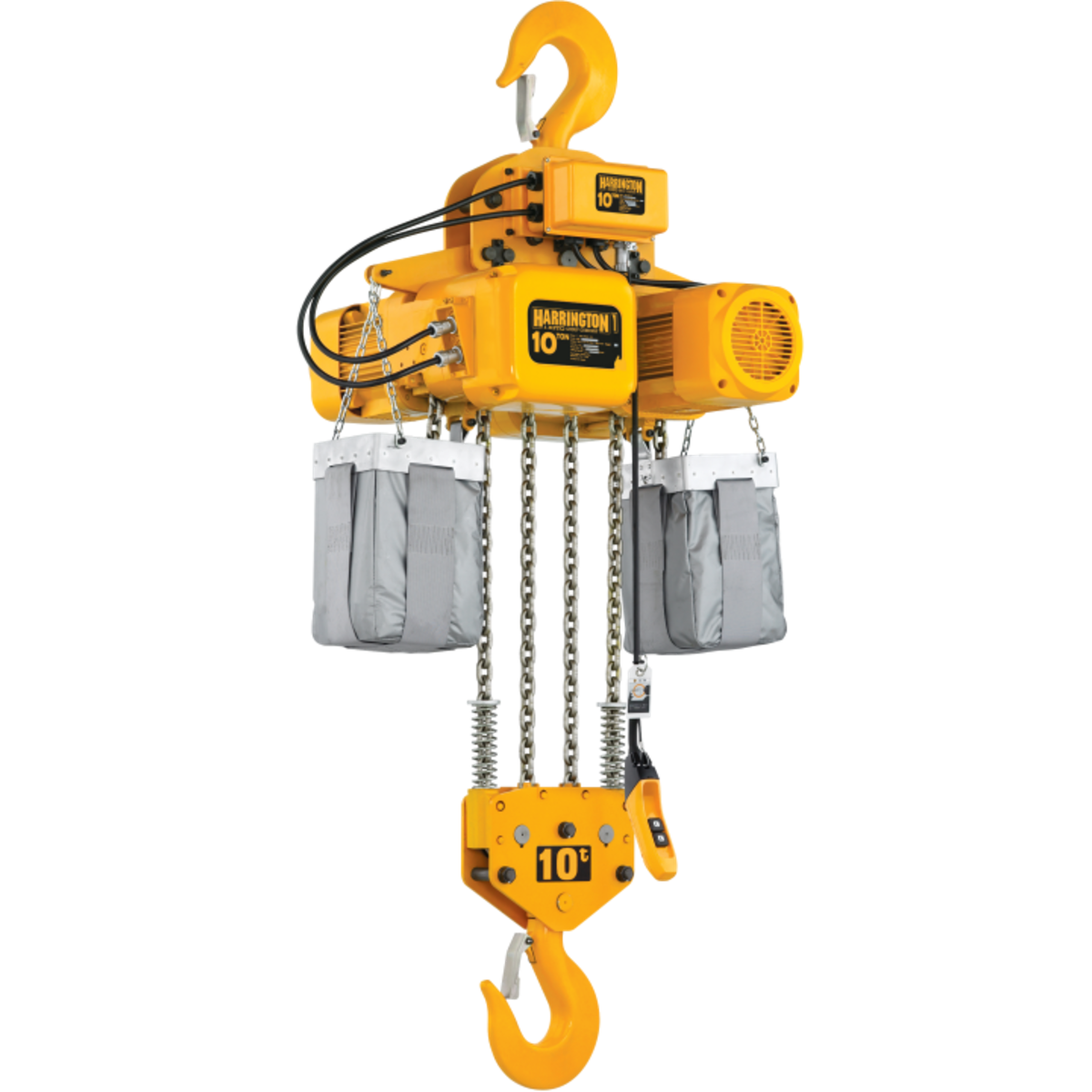

Product Electric Chain Hoist, 20,000 lb, 10 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley
Includes Chain Container, Quick Disconnect Plugs On Pendant and Power Cords, 10 yr Brake Warranty
Lift Speed 11 fpm
Housing Width 47 3/16 in
Manufacturers Warranty Length 10 yr Brake Warranty, 3 yr
Housing Depth 10 1/2 in
Housing Length 31 7/16 in
For Minimum Beam Flange Width Not Applicable
For Maximum Beam Flange Width Not Applicable
For Maximum Beam Height Not Applicable
MFR Warranty Length 1 yr
Body Width 47 3/16 in
Body Depth 10 1/2 in
For Minimum Beam Height Not Applicable
Body Length 31 7/16 in
Minimum Radius Curve Not Applicable
Maximum Lifting Length 10 ft
Controller Cord Length 6 ft
Trolley Wheel Diameter Not Applicable
Lifting Hook Opening Width 3 3/16 in
Minimum Retracted Length 53 29/32 in
Load Capacity 20,000 lb
Minimum Between Hooks 53 15/16 in
Motor HP 4.7 hp x2
Phase 3
Standards ANSI/ASME B30.16, ASME HST-1M, NFPA 70, RoHS Compliant, UL 1340
Voltage 208/230/460V
Fits Brand Harrington Hoists Inc
Lubrication Oil Bath
Reeving 8
Thermal Protection Yes
Control Cord 6 ft
Amps @ Low Volts 16.4 x 2
Number of Speeds 1
Trolley Configuration Hook Mounted
Trolley Speed Not Applicable
Features Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option
Material Die Cast Aluminum
Lifting Hook Material Carbon Steel
Includes Clutch Clutch Included
Overload Protection Included Yes
Brake Type DC Current
Chain Grade Grade 80
Maximum Lift Speed Not Applicable
Included Components Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Fixed Lift Speed 11 fpm
Clutch Type Friction
Minimum Lift Speed Not Applicable
Pendant IP Rating IP65
Chain Finish Nickel Plated
Controls Push Button Pendant=Mount Type=Hook Mounted-No Trolley
Starts and Stops per Hour 360
Duty Classification H4
Maximum Pulling Capacity Not Applicable
Number of Reeves 8
Motor Horsepower 4 3/4 hp
Headroom 53 29/32 in
Includes Brake Brake Included
For Outdoor Use Yes
Hoist IP Rating IP55
Lifting Hook Type Swivel Hook with Safety Latch
Maximum Lifting Capacity 20,000 lb
Current at Minimum Voltage 32.8 A
Trolley Wheel Material Not Applicable
Current at Maximum Voltage 15.8 A
Body Finish Enamel
Number of Load Chains 1
Body Material Aluminum
Trolley IP Rating Not Applicable
Programmable Non-Programmable
