NER Electric Chain Hoist 20' Lift-Capacity 10 Ton NER100L Electric Chain Hoist HARRINGTON

Product Overview

The NER100L-20 HARRINGTON NER Electric Chain Hoist is a game-changer when it comes to lifting heavy loads. With lifting Capacity 10 ton and a 20' lift, this powerful hoist is designed to handle the toughest jobs with ease. No matter the size or weight of your load, the NER100L-20 can handle it.What sets the NER100L-20 apart from other electric chain hoists is its cutting-edge technology and durable construction. This hoist is built to last and excel in any environment, whether it's in a warehouse, factory, construction site, or any other demanding setting. It is designed to withstand the harshest conditions, guaranteeing peak performance every time.Harrington's NER/ER series is trusted by professionals around the world for its unmatched reliability, efficiency, and safety. The NER100L-20 is no exception. It combines robustness with precision, ensuring that your lifting operations are carried out smoothly and accurately. With this electric chain hoist, you can have peace of mind knowing that you have a reliable and efficient tool to complete even the toughest tasks.The NER100L-20 HARRINGTON NER Electric Chain Hoist is perfect for a wide range of lifting applications. Whether you need to lift heavy machinery, equipment, or materials, this hoist can handle it all. Its powerful motor and sturdy construction make it an ideal choice for any lifting operation.Don't settle for mediocre performance when it comes to lifting heavy loads. Elevate your lifting operations with the uncompromising power of the NER100L-20 HARRINGTON NER Electric Chain Hoist. Experience peak performance, top-notch reliability, and unmatched efficiency with this exceptional product. Invest in the NER100L-20 today and take your lifting capabilities to new heights.

Product Specifications

.

Part Number:

NER100L-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Electric Chain Hoist, 20,000 lb, 20 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container, Quick Disconnect Plugs On Pendant and Power Cords, 10 yr Brake Warranty

Lift Speed:

5.5 fpm

Housing Width:

13 3/16 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

10 1/2 in

Housing Length:

28 15/16 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

13 3/16 in

Body Depth:

10 1/2 in

For Minimum Beam Height:

Not Applicable

Body Length:

28 15/16 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

20 ft

Controller Cord Length:

16 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

3 3/16 in

Minimum Retracted Length:

53 29/32 in

Load Capacity:

20,000 lb

Minimum Between Hooks:

53 15/16 in

Motor HP:

4.7 hp

Phase:

3

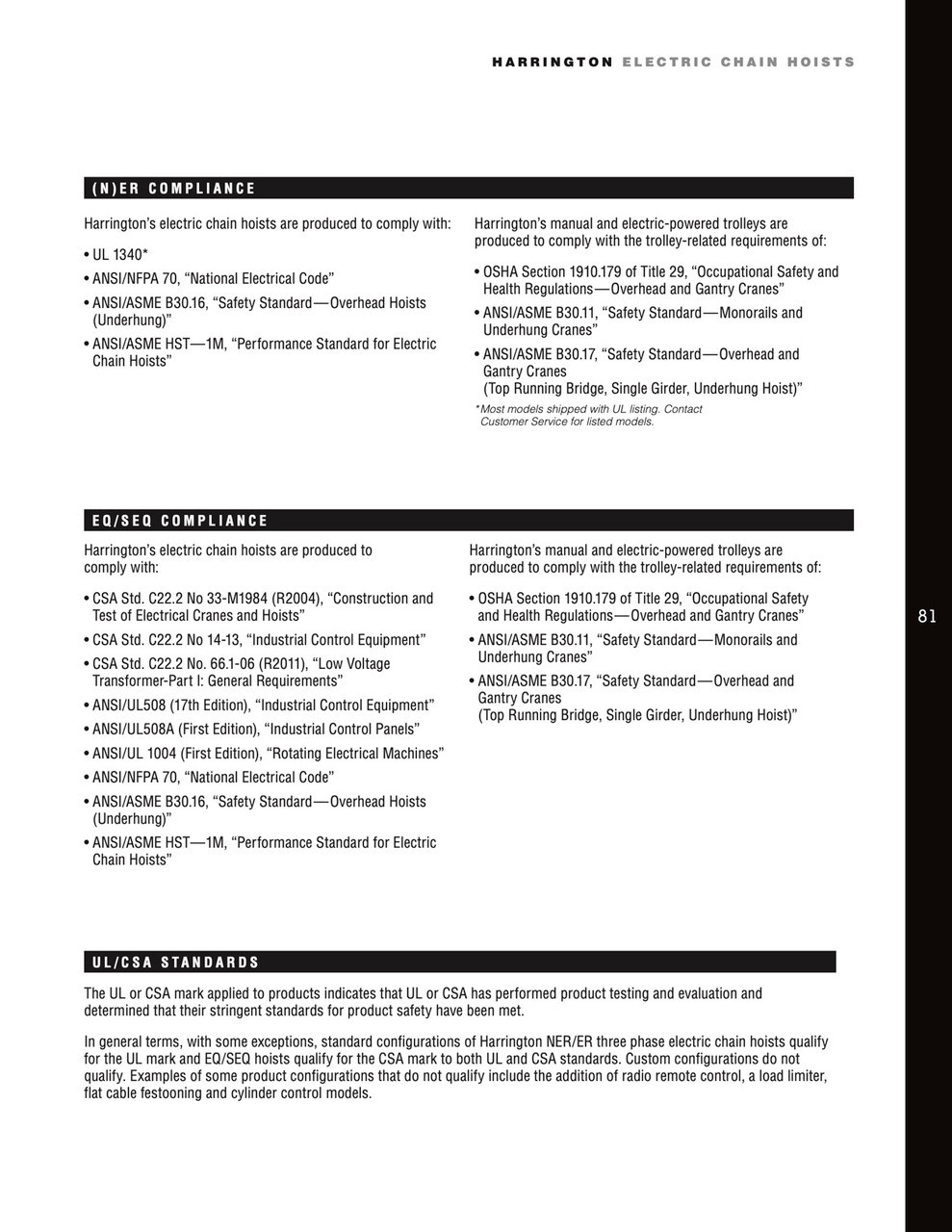

Standards:

ANSI/ASME B30.16, ASME HST-1M, NFPA 70, RoHS Compliant, UL 1340

Voltage:

208/230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

4

Thermal Protection:

Yes

Control Cord:

16 ft

Amps @ Low Volts:

16.4 A

Number of Speeds:

1

Trolley Configuration:

Hook Mounted

Trolley Speed:

Not Applicable

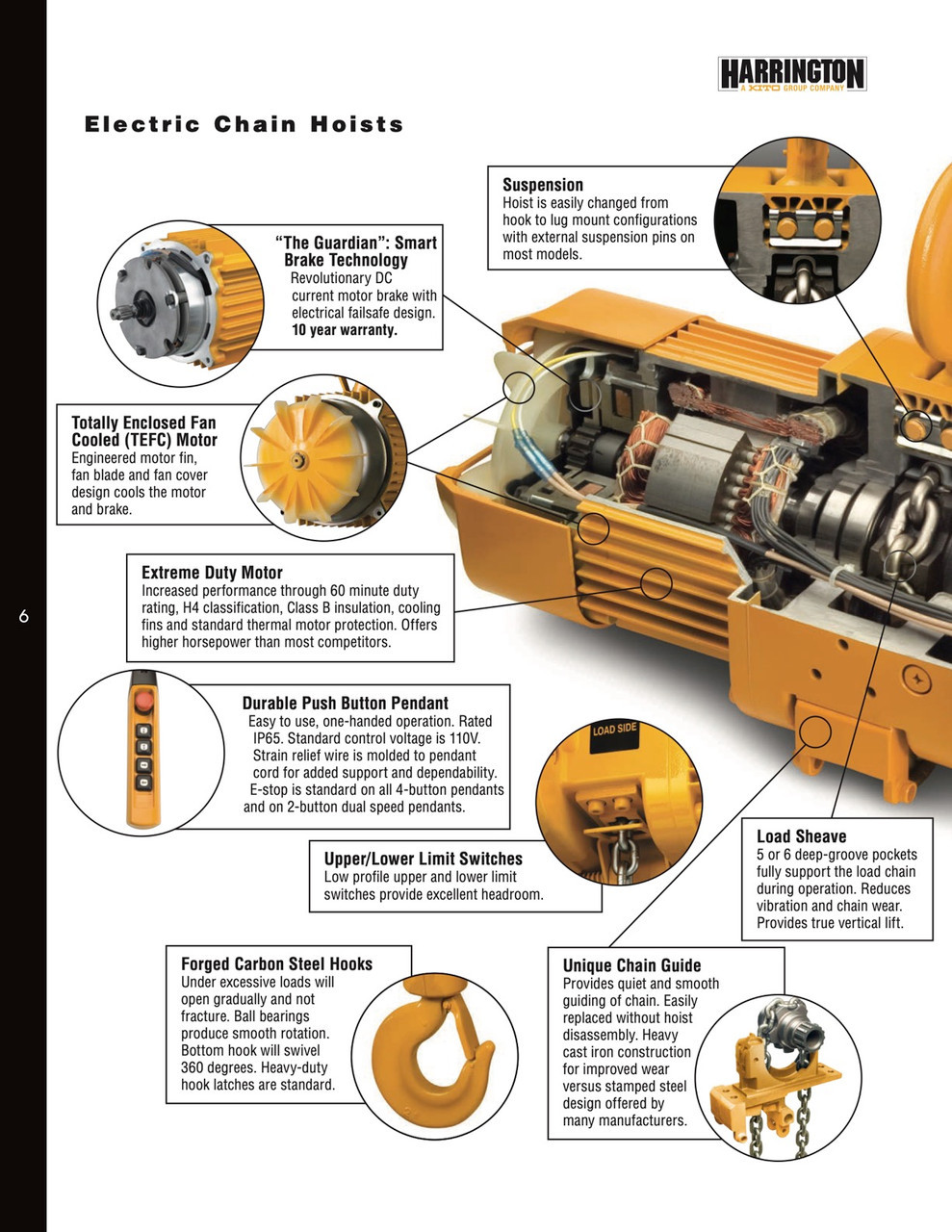

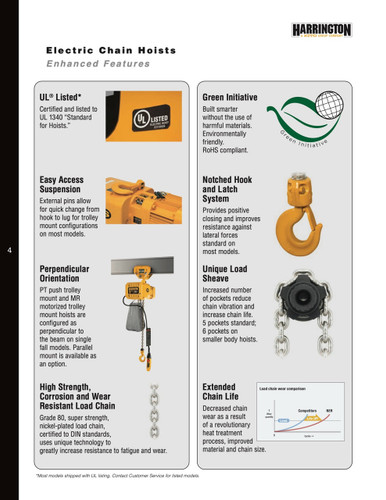

Features:

Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option

Material:

Die Cast Aluminum

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

5.5 fpm

Clutch Type:

Friction

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Programmable by Internal Controls=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

4

Motor Horsepower:

4 3/4 hp

Headroom:

53 29/32 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

20,000 lb

Current at Minimum Voltage:

16.4 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

7.9 A

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
