Product Overview
The NER100L-15 HARRINGTON NER Electric Chain Hoist is the ultimate solution for your heavy lifting needs. Engineered to deliver unmatched performance, this electric hoist is built to withstand the most demanding work environments. With a lift capacity 10 ton, you can trust this hoist to handle even the heaviest loads with ease and precision.Featuring a 15' lift, this hoist offers maximum flexibility, allowing you to reach the desired height effortlessly. Whether you‚ re lifting equipment, machinery, or materials, this hoist is designed to provide smooth and efficient operation every time. With Harrington's renowned reputation for quality and reliability, you can have peace of mind knowing that this electric chain hoist will surpass your expectations.Designed to optimize productivity, the NER100L-15 HARRINGTON NER Electric Chain Hoist is equipped with advanced features that enhance efficiency. Its robust construction ensures durability, while its precise control system allows for precise positioning of loads. The hoist's ergonomic design not only provides comfort during operation but also minimizes downtime by allowing for quick and easy maintenance.Safety is paramount, which is why this electric chain hoist is equipped with multiple safety features. Its overload protection system prevents damage to the hoist and ensures the safety of operators and surrounding equipment. Additionally, the hoist's brake system ensures secure load holding and prevents accidental descent.The NER100L-15 HARRINGTON NER Electric Chain Hoist is the perfect choice for industries such as manufacturing, construction, and warehousing. Its versatility and reliability make it an indispensable tool for any heavy lifting application.Experience the pinnacle of performance with the NER100L-15 HARRINGTON NER Electric Chain Hoist. Elevate your productivity, exceed your expectations, and tackle the toughest lifting tasks with ease. Invest in this exceptional hoist and revolutionize your work efficiency today.Product Specifications
.Product Videos
Videos Hide Videos Show Videos
Custom Field
Part Number NER100L-15
Color Yellow
Hoist Lift 15 ft
Product Electric Chain Hoist, 20,000 lb, 15 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley
Includes Chain Container, Quick Disconnect Plugs On Pendant and Power Cords, 10 yr Brake Warranty
Lift Speed 5.5 fpm
Housing Width 13 3/16 in
Manufacturers Warranty Length 10 yr Brake Warranty, 3 yr
Housing Depth 10 1/2 in
Housing Length 28 15/16 in
For Minimum Beam Flange Width Not Applicable
For Maximum Beam Flange Width Not Applicable
For Maximum Beam Height Not Applicable
MFR Warranty Length 1 yr
Body Width 13 3/16 in
Body Depth 10 1/2 in
For Minimum Beam Height Not Applicable
Body Length 28 15/16 in
Minimum Radius Curve Not Applicable
Maximum Lifting Length 15 ft
Controller Cord Length 11 ft
Trolley Wheel Diameter Not Applicable
Lifting Hook Opening Width 3 3/16 in
Minimum Retracted Length 53 29/32 in
Load Capacity 20,000 lb
Minimum Between Hooks 53 15/16 in
Motor HP 4.7 hp
Phase 3
Standards ANSI/ASME B30.16, ASME HST-1M, NFPA 70, RoHS Compliant, UL 1340
Voltage 208/230/460V
Fits Brand Harrington Hoists Inc
Lubrication Oil Bath
Reeving 4
Thermal Protection Yes
Brake Electromagnetic
Control Cord 11 ft
Amps @ Low Volts 16.4 A
Number of Speeds 1
Trolley Configuration Hook Mounted
Trolley Speed Not Applicable

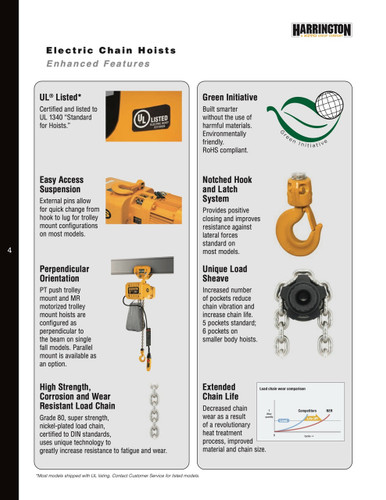

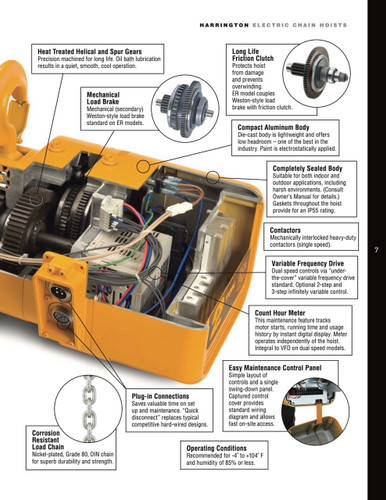

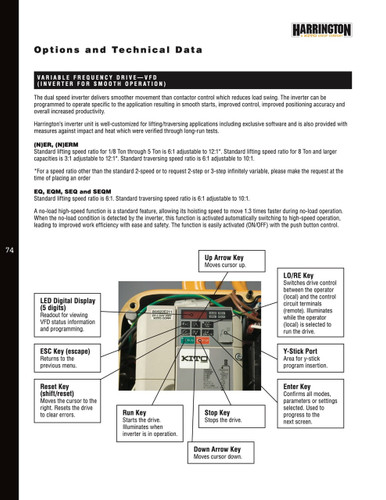

Features Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option
Lifting Hook Material Carbon Steel
Includes Clutch Clutch Included
Overload Protection Included Yes
Brake Type DC Current
Chain Grade Grade 80
Maximum Lift Speed Not Applicable
Included Components Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Fixed Lift Speed 5.5 fpm
Clutch Type Friction
Minimum Lift Speed Not Applicable
Pendant IP Rating IP65
Chain Finish Nickel Plated
Controls Programmable by Internal Controls=Mount Type=Hook Mounted-No Trolley
Starts and Stops per Hour 360
Duty Classification H4
Maximum Pulling Capacity Not Applicable
Number of Reeves 4
Motor Horsepower 4 3/4 hp
Headroom 53 29/32 in
Includes Brake Brake Included
For Outdoor Use Yes
Hoist IP Rating IP55
Lifting Hook Type Swivel Hook with Safety Latch
Maximum Lifting Capacity 20,000 lb
Current at Minimum Voltage 16.4 A
Trolley Wheel Material Not Applicable
Current at Maximum Voltage 7.9 A
Body Finish Enamel
Number of Load Chains 1
Body Material Aluminum
Trolley IP Rating Not Applicable
Programmable Non-Programmable
