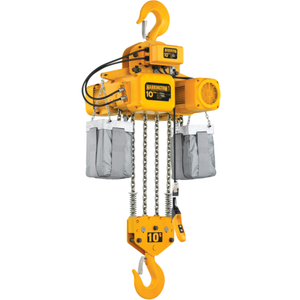

NER Electric Chain Hoist 10' Lift-Capacity 10 Ton NER100L Electric Chain Hoist HARRINGTON

Product Overview

The NER100L-10 HARRINGTON NER Electric Chain Hoist is the ideal solution for heavy-duty lifting applications, expertly engineered to lift up to 10 tons with remarkable ease. This electric chain hoist is designed to meet the rigorous demands of industrial environments, ensuring reliable performance even under the toughest conditions. Its robust construction guarantees not only longevity but also the reliability needed for various lifting tasks, from construction sites to warehouses.

Equipped with cutting-edge technology, the NER100L-10 allows for smooth, precise lifting operations. Advanced components facilitate exceptional control and accuracy, enabling users to complete tasks with precision. Whether it's a delicate maneuver or a heavy lift, this hoist delivers consistent results every time.

Safety is paramount in lifting operations, and the NER100L-10 brings numerous safety features to the table. With overload protection and a durable brake system, it minimizes the risk associated with lifting heavy loads, ensuring the safety of both the operator and the materials being handled.

Ease of use makes the NER100L-10 even more appealing. Featuring a user-friendly control pendant, operators can effortlessly adjust the speed and direction of the hoist, streamlining the lifting process. This intuitive design enhances productivity, making it suitable for both seasoned professionals and those new to heavy lifting.

The NER100L-10 HARRINGTON NER Electric Chain Hoist sets a benchmark in efficiency and reliability in the world of heavy-duty lifting. Its outstanding combination of durability, advanced technology, and user-friendly features makes it the go-to choice for anyone looking to tackle intensive lifting tasks with confidence. Trust the NER100L-10 for all your lifting needs and experience the difference in performance and safety.

Product Specifications

.

Part Number:

NER100L-10

Color:

Yellow

Hoist Lift:

10 ft

Product:

Electric Chain Hoist, 20,000 lb, 10 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container, Quick Disconnect Plugs On Pendant and Power Cords, 10 yr Brake Warranty

Lift Speed:

5.5 fpm

Housing Width:

13 3/16 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

10 1/2 in

Housing Length:

28 15/16 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

13 3/16 in

Body Depth:

10 1/2 in

For Minimum Beam Height:

Not Applicable

Body Length:

28 15/16 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

10 ft

Controller Cord Length:

6 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

3 3/16 in

Minimum Retracted Length:

53 29/32 in

Load Capacity:

20,000 lb

Minimum Between Hooks:

53 15/16 in

Motor HP:

4.7 hp

Phase:

3

Standards:

ANSI/ASME B30.16, ASME HST-1M, NFPA 70, RoHS Compliant, UL 1340

Voltage:

208/230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

4

Thermal Protection:

Yes

Control Cord:

6 ft

Amps @ Low Volts:

16.4 A

Number of Speeds:

1

Trolley Configuration:

Hook Mounted

Trolley Speed:

Not Applicable

Features:

Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option

Material:

Die Cast Aluminum

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

5.5 fpm

Clutch Type:

Friction

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

4

Motor Horsepower:

4 3/4 hp

Headroom:

53 29/32 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

20,000 lb

Current at Minimum Voltage:

16.4 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

7.9 A

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
