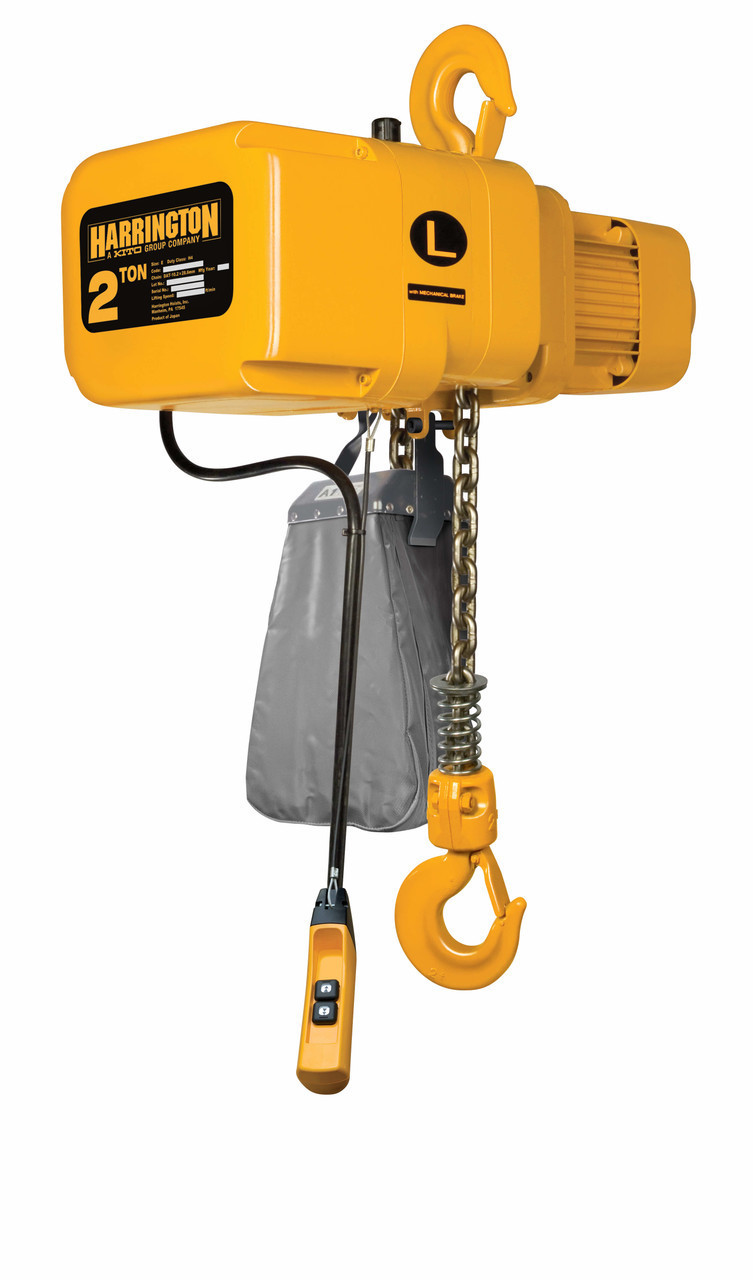

NER Electric Chain Hoist 20' Lift-Capacity 2 Tons NER020S Electric Chain Hoist HARRINGTON

Product Overview

The NER020S-20 HARRINGTON NER Electric Chain Hoist is designed to meet and exceed the toughest heavy-duty lifting demands. With its rigorous engineering and robust design, this electric hoist offers unparalleled reliability and efficiency in handling loads of up to 2 tons. Whether you’re operating in a warehouse, an industrial facility, or on a construction site, this powerful hoist equips you with the functionality needed to manage heavy objects safely and effectively.

With an impressive 20-foot lift height, the NER020S-20 Electric Chain Hoist provides exceptional versatility, making it ideal for a wide range of applications. From lifting heavy machinery and equipment to moving large materials, this hoist excels in delivering precision and speed. The powerful motor ensures smooth operation, allowing you and your team to complete tasks efficiently and safely, thus optimizing productivity in any work environment.

• Load capacity of 2 tons, perfect for heavy lifting tasks.
• Lift height of 20 feet allows for versatile application across various environments.
• Engineered with durable materials to withstand harsh conditions and demanding workloads.
• Smooth and reliable operation, thanks to its powerful motor.
• Robust construction that guarantees longevity and reliability over time.
• Designed for safety and efficiency, minimizing the risk of accidents during operation.

In investing in the NER020S-20 HARRINGTON NER Electric Chain Hoist, you are choosing a product that stands out in its class for performance and quality. This hoist is built not just to perform but to provide a lasting solution, reducing the need for frequent replacements and repairs. Its exceptional durability means that you will save time and money in the long run while maintaining a high level of operational efficiency.

Elevate your work processes and enhance your lifting capabilities with the NER020S-20 HARRINGTON NER Electric Chain Hoist. Experience the difference that comes with superior engineering and high-quality construction. Order your hoist today and take the first step towards transforming your lifting operations into a more efficient, safe, and reliable process.

Product Specifications

.

Part Number:

NER020S-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Electric Chain Hoist, 4,000 lb, 20 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container, Limit Switches, Plug-In Connections

Lift Speed:

28 fpm

Housing Width:

16 13/16 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

9 1/2 in

Housing Length:

27 11/16 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

16 13/16 in

Body Depth:

9 1/2 in

For Minimum Beam Height:

Not Applicable

Body Length:

27 11/16 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

20 ft

Controller Cord Length:

8 3/16 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 19/32 in

Minimum Retracted Length:

23 3/16 in

Load Capacity:

4,000 lb

Minimum Between Hooks:

23 3/16 in

Motor HP:

4.7 hp

Phase:

3

Standards:

ANSI/ASME B30.16, ANSI/ASME HST-1M, ANSI/NFPA 70, UL 1340

Voltage:

208/230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Clutch:

Friction

Reeving:

1

Thermal Protection:

Yes

Control:

16 ft

Brake:

DC Current

Control Cord:

16 ft

Amps @ Low Volts:

16.4 A

Number of Speeds:

1

Trolley Configuration:

Hook Mounted

Trolley Speed:

Not Applicable

Features:

Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option

Material:

Die Cast Aluminum

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

28 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

4 3/4 hp

Headroom:

23 3/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

4,000 lb

Current at Minimum Voltage:

16.4 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

7.9 A

Body Finish:

Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
