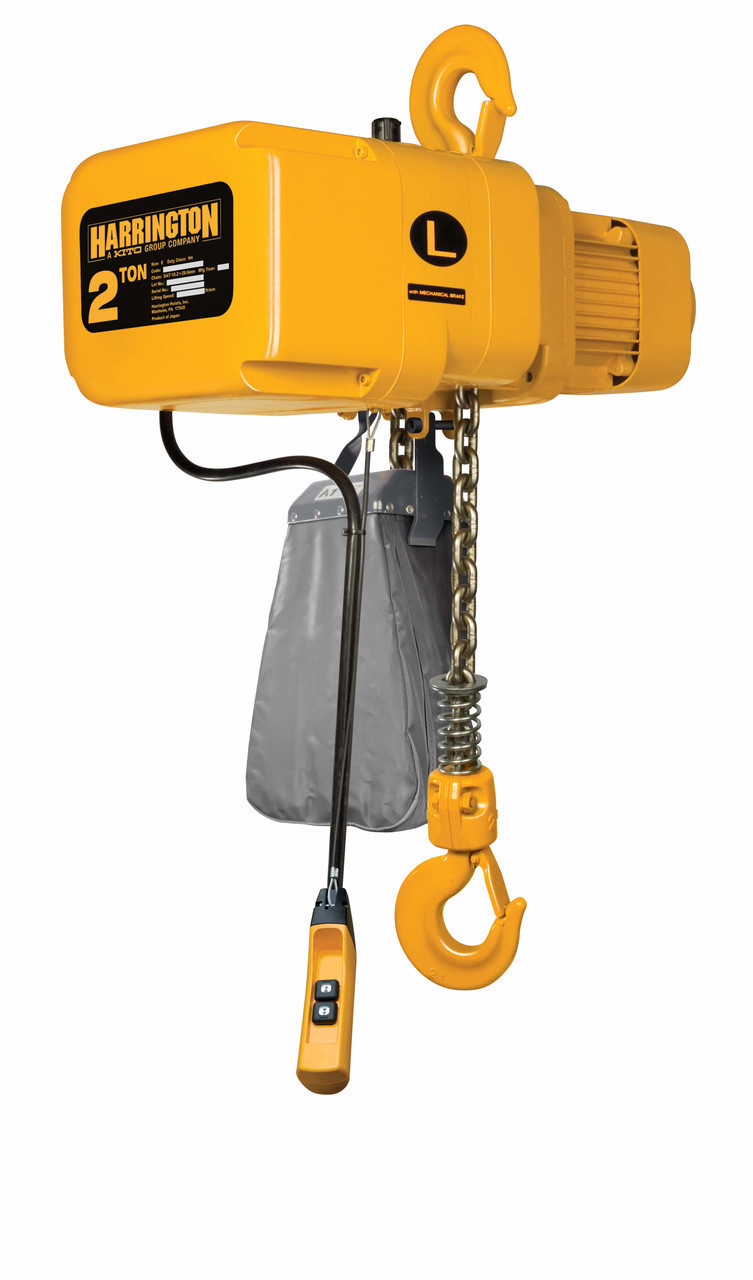

NER Electric Chain Hoist 15' Lift-Capacity 2 Tons NER020S Electric Chain Hoist HARRINGTON

Product Overview

The NER020S-15 HARRINGTON NER Electric Chain Hoist 15' Lift is a game-changer when it comes to heavy-duty lifting. It is designed to withstand the harshest conditions and tackle the toughest jobs with ease. With its capacity ranging from 1/8 to 20 tons, this hoist provides the power and reliability you need to get the job done efficiently.When it comes to lifting heavy loads, safety is always a top priority. That's why the NER020S Electric Chain Hoist is built with the highest standards of safety in mind. With its innovative design and superior craftsmanship, you can trust this hoist to perform flawlessly and keep your operations running smoothly.Not only is this hoist powerful and safe, but it is also built to last. Harrington, a trusted name in the industry, has designed the NER020S-15 to withstand the test of time. Its durability and reliability ensure that you won't have to worry about breakdowns or malfunctions.The NER020S-15 HARRINGTON NER Electric Chain Hoist is not just a tool, but an investment in your business. By upgrading to this hoist, you can expect increased productivity and efficiency in your operations. It will make your heavy lifting tasks easier and more streamlined, saving you time and effort.Whether you need to lift loads in a warehouse, manufacturing facility, or construction site, the NER020S Electric Chain Hoist is the ultimate solution. It offers the power, reliability, and durability required for heavy-duty lifting in any industry.In summary, the NER020S-15 HARRINGTON NER Electric Chain Hoist 15' Lift is a must-have for anyone in need of a high-quality, heavy-duty hoist. Upgrade your lifting game today and experience the difference with this superior hoist. Trust Harrington to deliver peak performance and optimal results for all your heavy lifting requirements.

Product Specifications

.

Part Number:

NER020S-15

Color:

Yellow

Hoist Lift:

15 ft

Product:

Electric Chain Hoist, 4,000 lb, 15 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container, Limit Switches, Plug-In Connections

Lift Speed:

28 fpm

Housing Width:

16 13/16 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

9 1/2 in

Housing Length:

27 11/16 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

16 13/16 in

Body Depth:

9 1/2 in

For Minimum Beam Height:

Not Applicable

Body Length:

27 11/16 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

15 ft

Controller Cord Length:

8 3/16 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 19/32 in

Minimum Retracted Length:

23 3/16 in

Load Capacity:

4,000 lb

Minimum Between Hooks:

23 3/16 in

Motor HP:

4.7 hp

Phase:

3

Standards:

ANSI/ASME B30.16, ANSI/ASME HST-1M, ANSI/NFPA 70, UL 1340

Voltage:

208/230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

11 ft

Amps @ Low Volts:

16.4 A

Number of Speeds:

1

Trolley Configuration:

Hook Mounted

Trolley Speed:

Not Applicable

Features:

Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

28 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

4 3/4 hp

Headroom:

23 3/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

4,000 lb

Current at Minimum Voltage:

16.4 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

7.9 A

Body Finish:

Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
