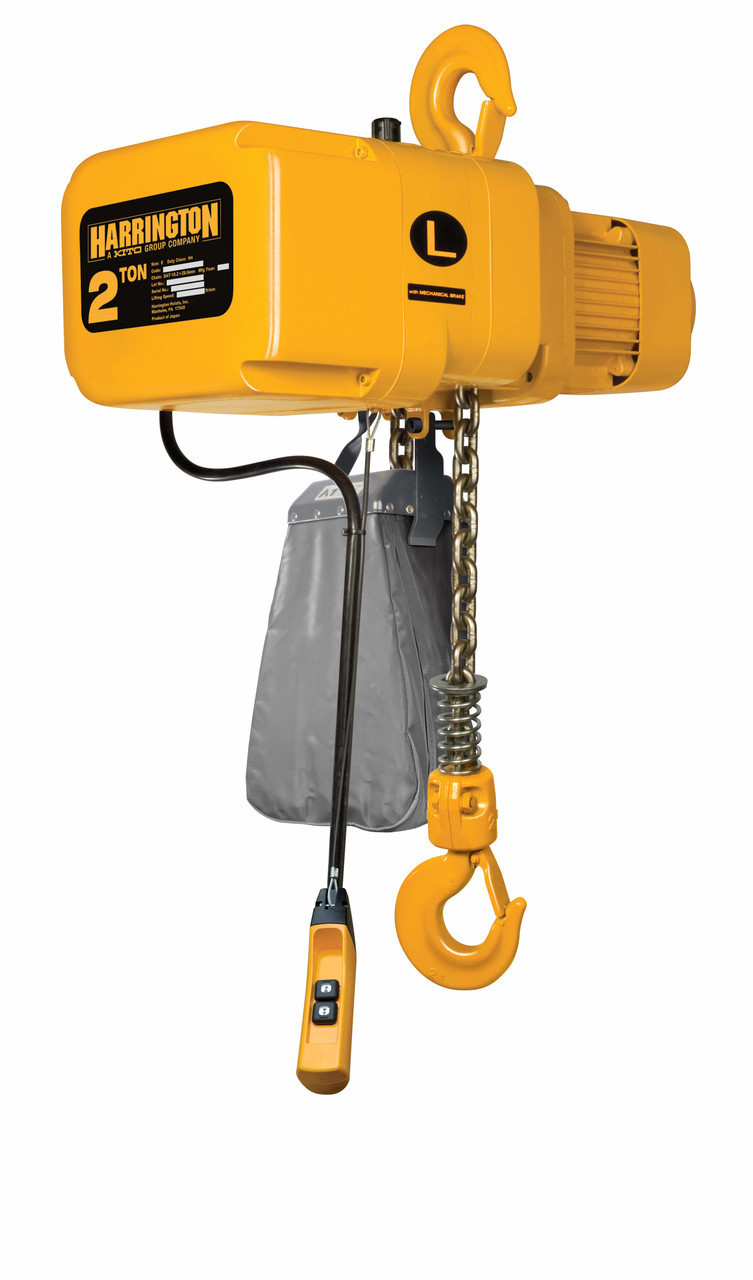

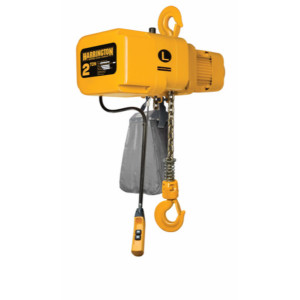

NER Electric Chain Hoist 10' Lift-Capacity 2 Tons NER020S Electric Chain Hoist HARRINGTON

Product Overview

The NER020S-10 HARRINGTON NER Electric Chain Hoist is a powerful and reliable tool designed for heavy-duty applications. With its robust construction and high-quality materials, this electric hoist delivers exceptional performance in even the toughest conditions.Featuring a lifting capacity that ranges from 1/8 to 20 tons, this electric chain hoist is versatile and can handle a wide range of loads. Whether you need to lift heavy machinery or move materials in a warehouse, the NER020S-10 can get the job done. With a 10-foot lift, it offers ample height for various overhead lifting tasks.Durability is a key feature of the NER020S-10. It is constructed with sturdy materials that can withstand heavy use and harsh environments. This hoist is built to last, providing a reliable and long-lasting solution for your lifting needs. With its strong frame and robust chain, you can trust this hoist to handle your toughest jobs.Efficiency is another defining feature of the NER020S-10. Its electric motor delivers smooth and precise lifting motion, allowing for precise positioning of the load. The hoist also features a compact design, making it easy to maneuver and operate in tight spaces. Its ergonomic controls ensure user comfort and ease of use.Safety is always a top priority, and the NER020S-10 is designed with this in mind. It comes with a range of safety features, including overload protection and a slip clutch to prevent damage to the hoist or the load. Additionally, it is equipped with a robust hook latch for secure attachment and a durable chain container to keep the chain organized and protected.In summary, the NER020S-10 HARRINGTON NER Electric Chain Hoist is a reliable and efficient tool for handling heavy loads. With its high lifting capacity, durable construction, and user-friendly design, it is perfect for a wide range of applications. Invest in the NER020S-10 and experience the peak performance and reliability that HARRINGTON is known for.

Product Specifications

.

Part Number:

NER020S-10

Color:

Yellow

Hoist Lift:

10 ft

Product:

Electric Chain Hoist, 4,000 lb, 10 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container, Limit Switches, Plug-In Connections

Lift Speed:

28 fpm

Housing Width:

16 13/16 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

9 1/2 in

Housing Length:

27 11/16 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

16 13/16 in

Body Depth:

9 1/2 in

For Minimum Beam Height:

Not Applicable

Body Length:

27 11/16 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

10 ft

Controller Cord Length:

8 3/16 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 19/32 in

Minimum Retracted Length:

23 3/16 in

Load Capacity:

4,000 lb

Minimum Between Hooks:

23 3/16 in

Motor HP:

4.7 hp

Phase:

3

Standards:

ANSI/ASME B30.16, ANSI/ASME HST-1M, ANSI/NFPA 70, UL 1340

Voltage:

208/230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

6 ft

Amps @ Low Volts:

16.4 A

Number of Speeds:

1

Trolley Configuration:

Hook Mounted

Trolley Speed:

Not Applicable

Features:

Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option

Material:

Die Cast Aluminum

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

28 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Programmable by Internal Controls=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

4 3/4 hp

Headroom:

23 3/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

4,000 lb

Current at Minimum Voltage:

16.4 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

7.9 A

Body Finish:

Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
