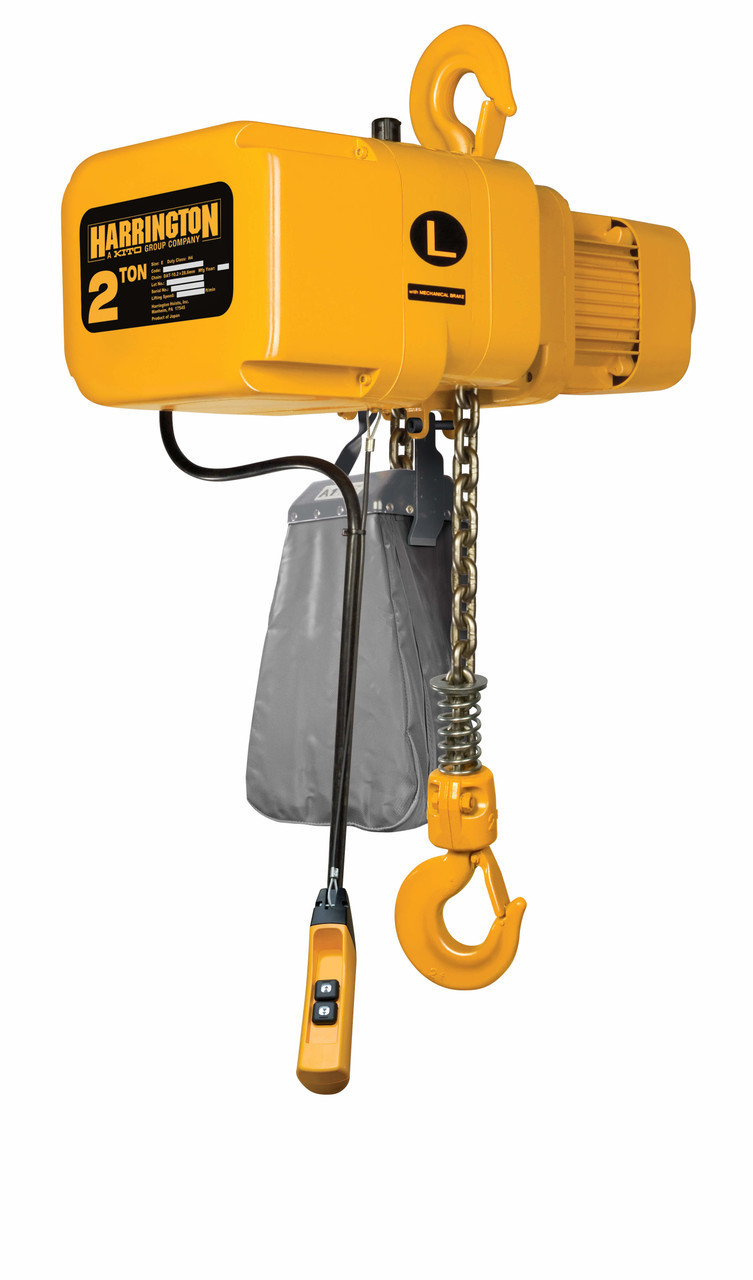

NER Electric Chain Hoist 20' Lift-Capacity 2 Tons NER020L Electric Chain Hoist HARRINGTON

Product Overview

The NER020L-20 HARRINGTON NER Electric Chain Hoist is the ultimate solution for heavy-duty lifting needs. Engineered to perform in the toughest conditions, this electric hoist guarantees reliability and efficiency on even the most demanding construction sites or industrial applications.With a lift capacity ranging from 1/8 to 20 tons, the NER020L Electric Chain Hoist has the power you need to handle any task with ease. Whether you need to lift smaller loads or tackle heavy machinery, this hoist will deliver outstanding performance every time.One of the standout features of this hoist is its 20' lift height. This versatile height allows you to efficiently lift objects to the desired level while maintaining top-notch safety standards. You can be confident that every lift will be precise and controlled, reducing the risk of accidents or damage to the load.Constructed with durability in mind, the NER020L Electric Chain Hoist is built to last. It can withstand the harshest working environments without compromising its performance. The sturdy construction ensures that this hoist will be a reliable partner for your lifting needs for years to come.Not only does the NER020L Electric Chain Hoist deliver exceptional performance and durability, but it also provides ease of use. Equipped with advanced technology and a user-friendly interface, this hoist offers an effortless lifting experience. Its ergonomic design allows for comfortable operation while ensuring maximum control and precision.In conclusion, the NER020L-20 HARRINGTON NER Electric Chain Hoist is the perfect choice for professionals who require a reliable, efficient, and robust lifting solution. With its wide range of lift Capacity, versatile lift height, and exceptional durability, this hoist is an investment that will greatly enhance your workflow and productivity. Trust in the NER020L Electric Chain Hoist for peak performance, safety, and efficiency.

Product Specifications

.

Part Number:

NER020L-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Electric Chain Hoist, 4,000 lb, 20 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container, Limit Switches, Plug-In Connections

Lift Speed:

14 fpm

Housing Width:

16 13/16 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

9 1/2 in

Housing Length:

25 7/16 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

16 13/16 in

Body Depth:

9 1/2 in

For Minimum Beam Height:

Not Applicable

Body Length:

25 7/16 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

20 ft

Controller Cord Length:

8 3/16 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 19/32 in

Minimum Retracted Length:

22 19/32 in

Load Capacity:

4,000 lb

Minimum Between Hooks:

22 5/8 in

Motor HP:

2.4 hp

Phase:

3

Standards:

ANSI/ASME B30.16, ANSI/ASME HST-1M, ANSI/NFPA 70, UL 1340

Voltage:

208/230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control:

16 ft

Control Cord:

16 ft

Amps @ Low Volts:

8.6 A

Number of Speeds:

1

Trolley Configuration:

Hook Mounted-No Trolley

Trolley Speed:

Not Applicable

Features:

Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

14 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

2 3/8 hp

Headroom:

22 19/32 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

4,000 lb

Current at Minimum Voltage:

8.6 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

4.2 A

Body Finish:

Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
