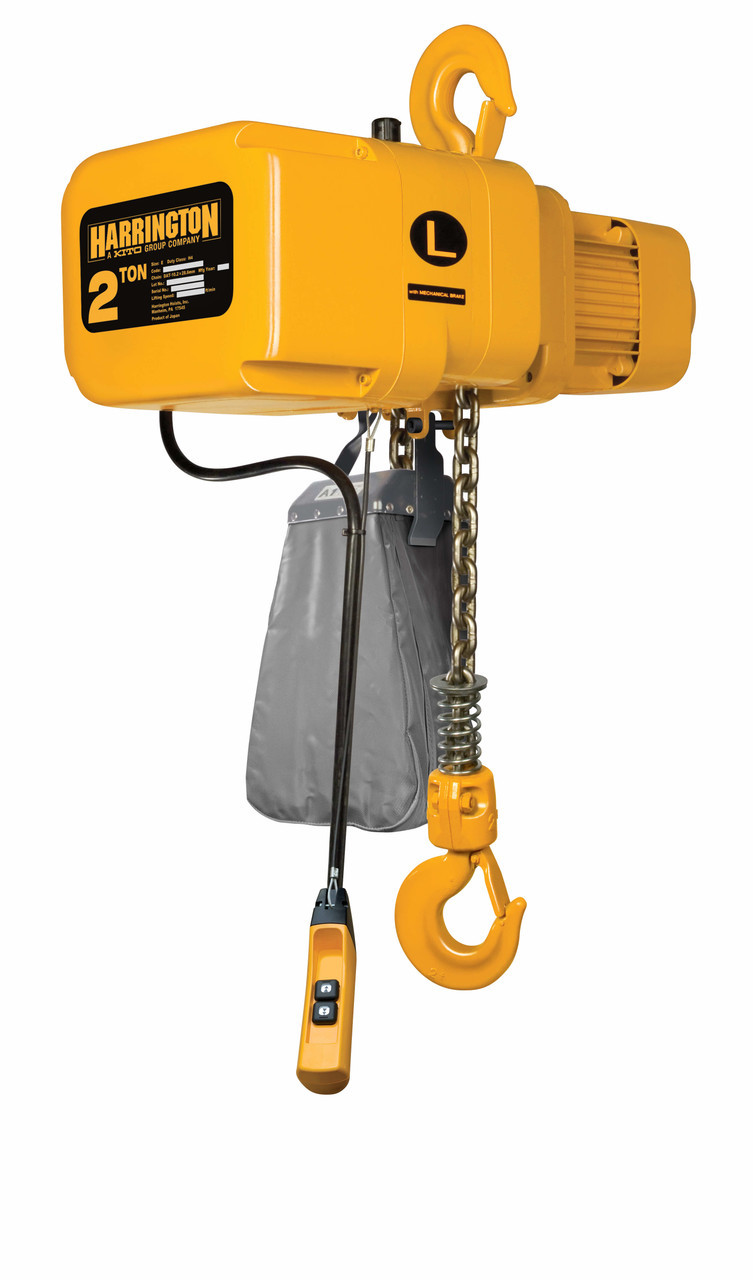

NER Electric Chain Hoist 15' Lift-Capacity 2 Tons NER020L Electric Chain Hoist HARRINGTON

Product Overview

The NER020L-15 HARRINGTON NER Electric Chain Hoist is engineered to provideunmatched performance and durability. It is built to withstand even the mostdemanding working environments, making it the go-to choice for professionalsin various industries.With a lift capacity ranging from 1/8 to 20 tons, this electric chain hoist hasthe strength to handle heavy loads effortlessly. Whether it's lifting equipment,machinery, or materials, this hoist can handle it all. The 15-foot lift heightensures that you can reach even the highest points, maximizing your reach andefficiency.What sets the NER020L-15 apart from its competitors is its superior build qualityand reliability. Harrington is known for producing top-of-the-line productsdesigned to withstand the harshest conditions. This electric hoist is noexception. Its robust construction ensures longevity and ensures that it canmaintain its performance over time.Not only is the NER020L-15 HARRINGTON NER Electric Chain Hoist built to last,but it is also designed with safety in mind. The hoist features an overloadlimiting device that protects against overloading, ensuring the safety of boththe operator and the load being lifted. It also comes with upper and lower limitswitches to prevent the chain from over-traveling, adding an extra layer of safety.In addition to its durability and safety features, this electric hoist offerssmooth and reliable operation. The hoist is powered by a high-performancemotor that provides the necessary power to lift heavy loads effortlessly. Thecompact and lightweight design of the hoist allows for easy installation andportability, making it suitable for use in various work environments.The NER020L-15 HARRINGTON NER Electric Chain Hoist is the perfect choice forany heavy-duty lifting task. Whether you're working in construction, manufacturing,or any industry that requires heavy lifting, this hoist will exceed your expectationsand deliver unparalleled performance. Trust in Harrington's reputation for excellenceand choose the NER020L-15 for all your lifting needs.

Product Specifications

.

Part Number:

NER020L-15

Color:

Yellow

Hoist Lift:

15 ft

Product:

Electric Chain Hoist, 4,000 lb, 15 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container, Limit Switches, Plug-In Connections

Lift Speed:

14 fpm

Housing Width:

16 13/16 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

9 1/2 in

Housing Length:

25 7/16 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

16 13/16 in

Body Depth:

9 1/2 in

For Minimum Beam Height:

Not Applicable

Body Length:

25 7/16 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

15 ft

Controller Cord Length:

8 3/16 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 19/32 in

Minimum Retracted Length:

22 19/32 in

Load Capacity:

4,000 lb

Minimum Between Hooks:

22 5/8 in

Motor HP:

2.4 hp

Phase:

3

Standards:

ANSI/ASME B30.16, ANSI/ASME HST-1M, ANSI/NFPA 70, UL 1340

Voltage:

208/230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

11 ft

Amps @ Low Volts:

8.6 A

Number of Speeds:

1

Trolley Configuration:

Hook Mounted-No Trolley

Trolley Speed:

Not Applicable

Features:

Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option

Material:

Die Cast Aluminum

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

14 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Programmable by Internal Controls=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

2 3/8 hp

Headroom:

22 19/32 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

4,000 lb

Current at Minimum Voltage:

8.6 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

4.2 A

Body Finish:

Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
