Part Number
Part Number NER020L-10
Color Yellow
Hoist Lift 10 ft

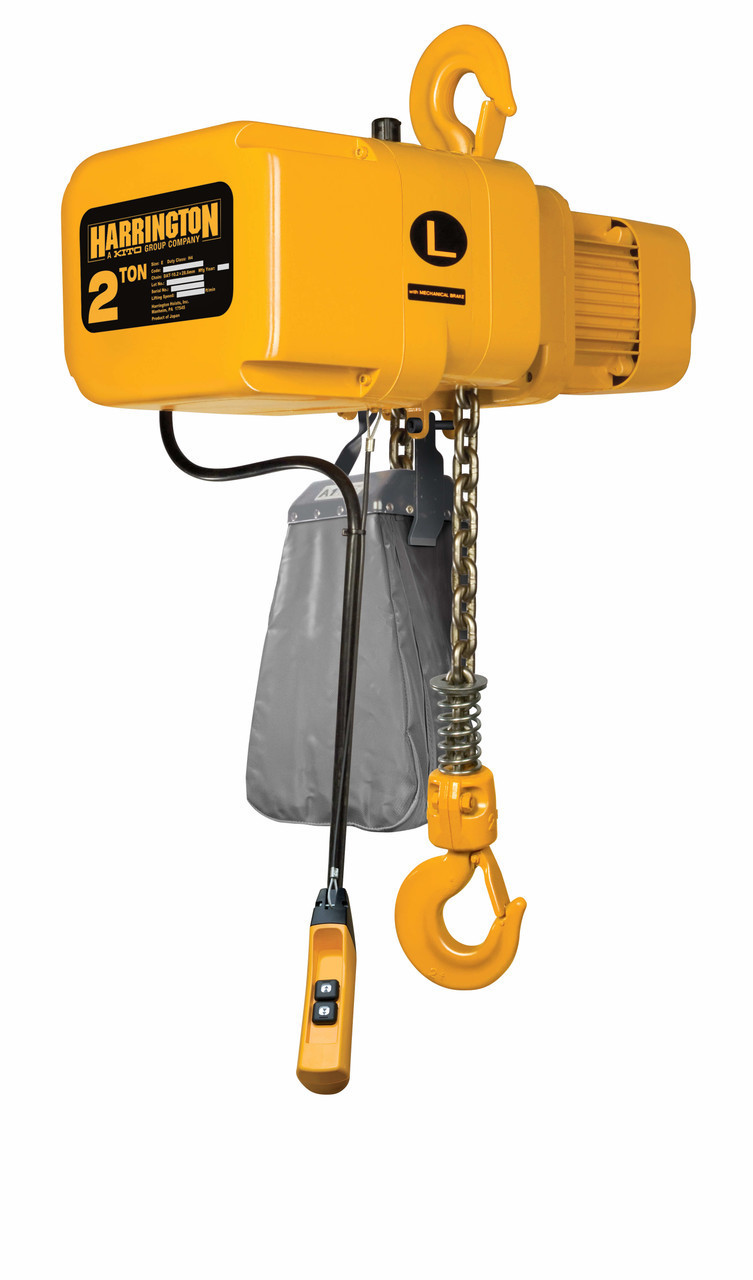

Product Electric Chain Hoist, 4,000 lb, 10 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley
Includes Chain Container, Limit Switches, Plug-In Connections
Lift Speed 14 fpm
Housing Width 16 13/16 in
Manufacturers Warranty Length 10 yr Brake Warranty, 3 yr
Housing Depth 9 1/2 in
Housing Length 25 7/16 in
For Minimum Beam Flange Width Not Applicable
For Maximum Beam Flange Width Not Applicable
For Maximum Beam Height Not Applicable
MFR Warranty Length 1 yr
Body Width 16 13/16 in
Body Depth 9 1/2 in
For Minimum Beam Height Not Applicable
Body Length 25 7/16 in
Minimum Radius Curve Not Applicable
Maximum Lifting Length 10 ft
Controller Cord Length 8 3/16 ft
Trolley Wheel Diameter Not Applicable
Lifting Hook Opening Width 1 19/32 in
Minimum Retracted Length 22 19/32 in
Load Capacity 4,000 lb
Minimum Between Hooks 22 5/8 in
Motor HP 2.4 hp
Phase 3
Standards ANSI/ASME B30.16, ANSI/ASME HST-1M, ANSI/NFPA 70, UL 1340
Voltage 208/230/460V
Fits Brand Harrington Hoists Inc
Lubrication Oil Bath
Reeving 1
Thermal Protection Yes
Control Cord 6 ft
Amps @ Low Volts 8.6 A
Number of Speeds 1
Trolley Configuration Hook Mounted-No Trolley
Trolley Speed Not Applicable

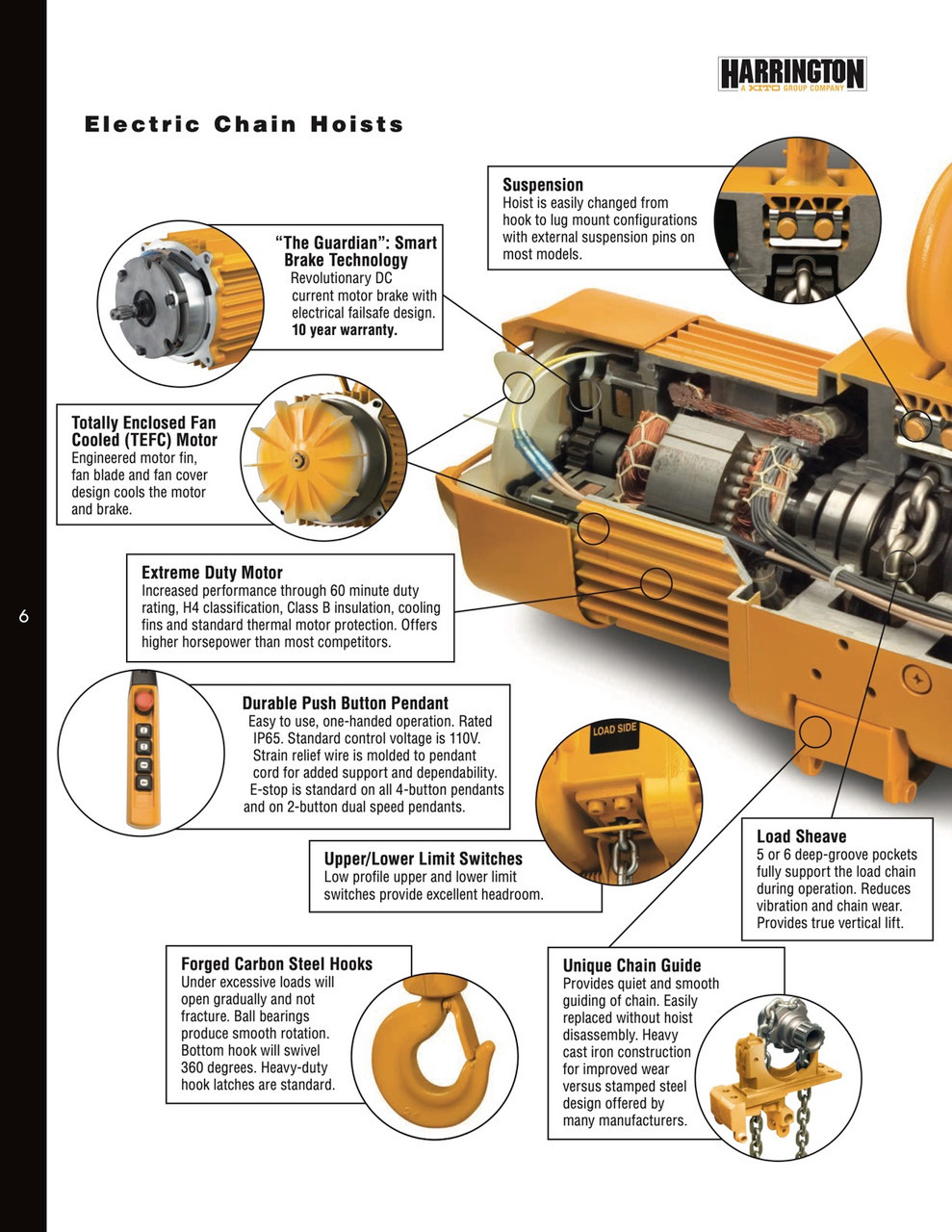

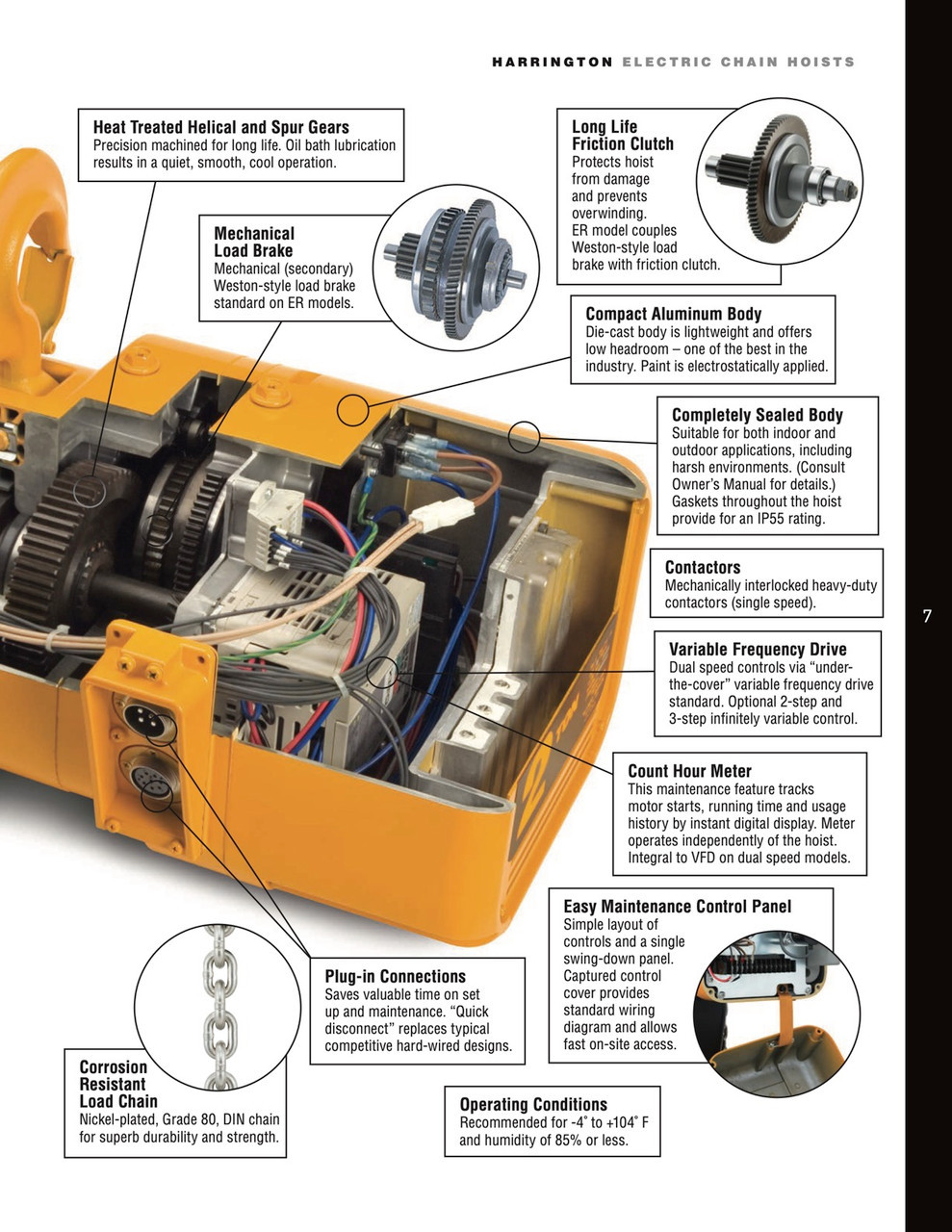

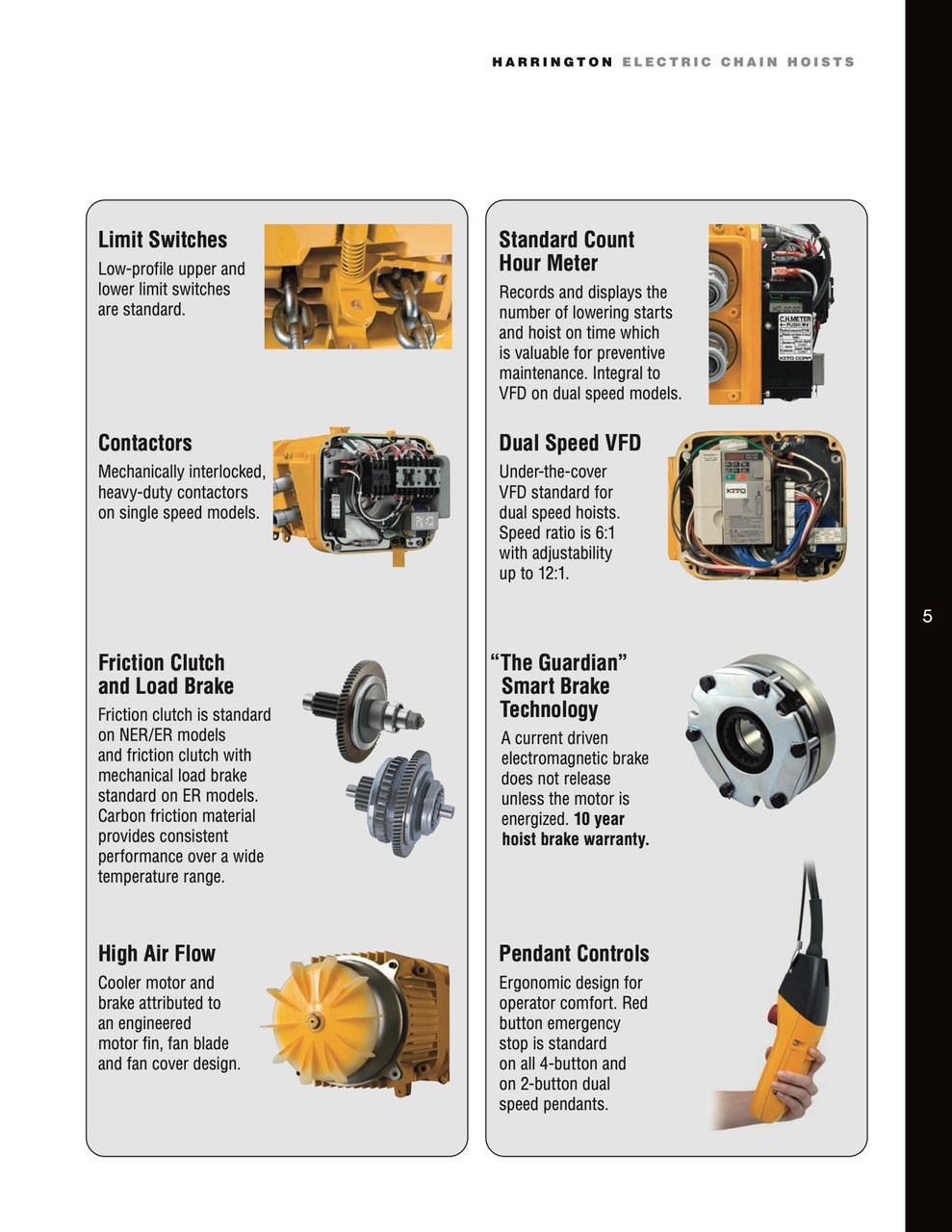

Features Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option
Lifting Hook Material Carbon Steel
Includes Clutch Clutch Included
Overload Protection Included Yes
Brake Type DC Current
Chain Grade Grade 80
Maximum Lift Speed Not Applicable
Included Components Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Fixed Lift Speed 14 fpm
Clutch Type Friction Clutch
Minimum Lift Speed Not Applicable
Pendant IP Rating IP65
Chain Finish Nickel Plated
Controls Push Button Pendant=Mount Type=Hook Mounted-No Trolley
Starts and Stops per Hour 360
Duty Classification H4
Maximum Pulling Capacity Not Applicable
Number of Reeves 1
Motor Horsepower 2 3/8 hp
Headroom 22 19/32 in
Includes Brake Brake Included
For Outdoor Use Yes
Hoist IP Rating IP55
Lifting Hook Type Swivel Hook with Safety Latch
Maximum Lifting Capacity 4,000 lb
Current at Minimum Voltage 8.6 A
Trolley Wheel Material Not Applicable
Current at Maximum Voltage 4.2 A
Body Finish Painted
Number of Load Chains 1
Body Material Aluminum
Trolley IP Rating Not Applicable
Programmable Non-Programmable
