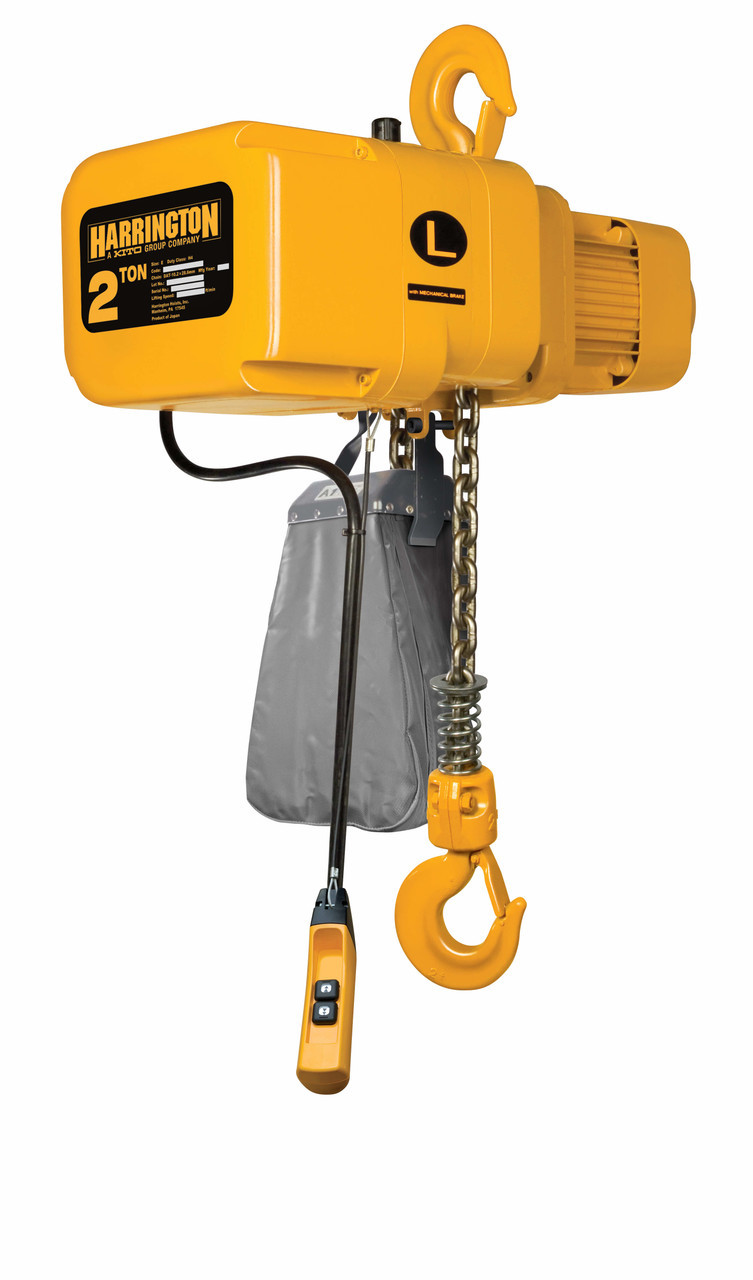

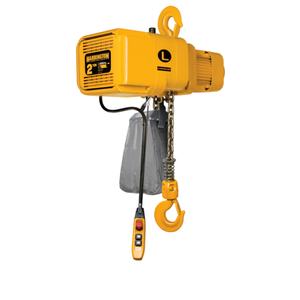

NER Electric Chain Hoist 20' Lift-Capacity 2 Tons NER020C Electric Chain Hoist HARRINGTON

Product Overview

The NER020C-20 HARRINGTON NER Electric Chain Hoist is a powerful and reliable tool designed to perform even in the harshest conditions. With its impressive lift capacity 2 Tons , this hoist is capable of tackling heavy loads effortlessly. Whether you are working on a construction site, in a warehouse, or in any other industrial setting, this hoist is built to handle the most demanding jobs.Engineered with precision and durability in mind, the NER020C-20 is equipped with top-quality components that ensure peak performance and longevity. Every aspect of this electric chain hoist has been carefully designed to provide users with a reliable and efficient lifting solution.With a 20-foot lift capacity, the NER020C-20 offers plenty of reach, allowing you to lift and move objects with ease. Its robust construction guarantees stability, minimizing the risk of accidents and ensuring a safer working environment.When it comes to quality, Harrington is a trusted name in the industry. With a longstanding reputation for excellence, you can trust that the NER Electric Chain Hoist lives up to the brand's high standards. This hoist is built to withstand tough conditions, making it the ideal choice for professionals who require a reliable lifting tool.Whether you need to lift heavy machinery, load and unload materials, or move large objects, the NER020C-20 HARRINGTON NER Electric Chain Hoist has got you covered. With its impressive lift capacity, durability, and precision engineering, this hoist will exceed your expectations, allowing you to complete your tasks efficiently and safely.Invest in the NER020C-20 HARRINGTON NER Electric Chain Hoist and experience the difference of a top-quality lifting solution. With its superior performance and reliability, this hoist will become an invaluable asset in your workplace. Trust in Harrington's commitment to excellence and choose the NER Electric Chain Hoist for all your lifting needs.

Product Specifications

.

Part Number:

NER020C-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Electric Chain Hoist, 4,000 lb, 20 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Safety Latch, Safety Standards

Lift Speed:

7 fpm

Housing Width:

5 13/32 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

8 5/16 in

Housing Length:

16 29/32 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

5 13/32 in

Body Depth:

8 5/16 in

For Minimum Beam Height:

Not Applicable

Body Length:

16 29/32 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

20 ft

Controller Cord Length:

8 3/16 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 1/2 in

Minimum Retracted Length:

27 13/16 in

Load Capacity:

4,000 lb

Minimum Between Hooks:

27 13/16 in

Motor HP:

1.2 hp

Phase:

3

Standards:

Safety Latch, Safety Standards

Voltage:

230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

2

Thermal Protection:

Yes

Control:

110V Push Button Control Pendant

Control Cord:

16 ft

Amps @ Low Volts:

4.8 A

Number of Speeds:

1

Trolley Configuration:

Hook Mounted-No Trolley

Trolley Speed:

Not Applicable

Features:

Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

7 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

2

Motor Horsepower:

1 1/4 hp

Headroom:

27 13/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

4,000 lb

Current at Minimum Voltage:

4.8 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

2.5 A

Body Finish:

Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
