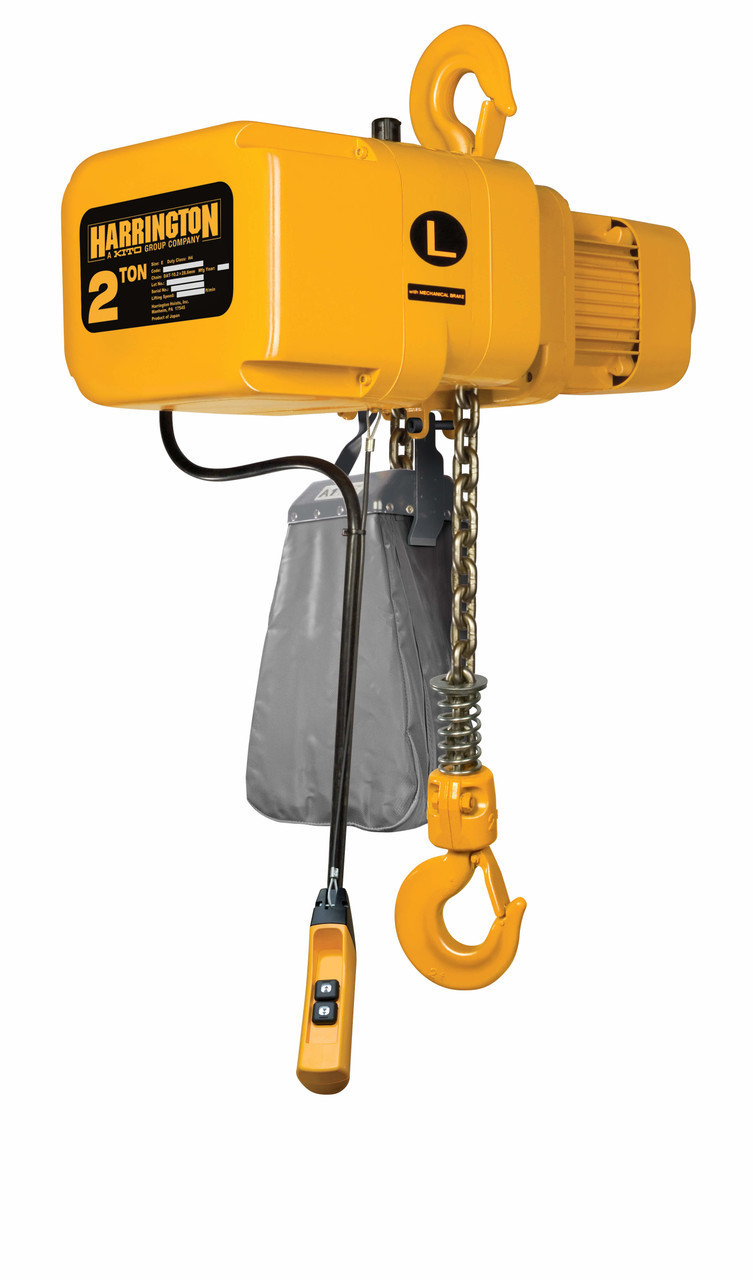

NER Electric Chain Hoist 10' Lift-Capacity 2 Tons NER020C Electric Chain Hoist HARRINGTON

Product Overview

The NER020C-10 HARRINGTON NER Electric Chain Hoist is a powerhouse designed to tackle the most demanding work environments. With a lifting capacity 2 Tons and a maximum lift of 10 feet, this electric chain hoist delivers the power and versatility needed to handle any heavy-duty job with ease.Built with precision and durability in mind, the NER020C-10 is engineered to perform at its best even in harsh conditions. Whether you're lifting heavy machinery, moving construction materials, or performing other industrial tasks, this hoist is designed to enhance productivity and streamline operations.The NER020C-10 is built to last. Its rugged construction and reliable motor ensure exceptional longevity, making it a wise investment for any business looking to maximize efficiency and minimize downtime. With this electric chain hoist, expect consistent outstanding results for years to come.Safety is a top priority, which is why the NER020C-10 is equipped with built-in safety features. Its overload protection system prevents accidents and optimizes safety for the operator and surrounding personnel. This hoist is designed to safeguard your workforce and minimize the risk of accidents, making it a reliable choice for any industrial setting.Operating the NER020C-10 is a breeze, allowing for smooth and efficient workflow. Its user-friendly controls enable precise lifting and lowering, guaranteeing accurate positioning of loads. This electric chain hoist provides superior control and maneuverability, enabling you to complete tasks quickly and accurately.Investing in the NER020C-10 HARRINGTON NER Electric Chain Hoist means experiencing unmatched performance and reliability for your heavy-duty lifting needs. With its exceptional lifting capacity, durable construction, and advanced safety features, this electric hoist is the ultimate solution for maximizing productivity and getting the job done right, every time. Trust in the NER020C-10 to exceed your expectations and simplify even the toughest of jobs.

Product Specifications

.

Part Number:

NER020C-10

Color:

Yellow

Hoist Lift:

10 ft

Product:

Electric Chain Hoist, 4,000 lb, 10 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Safety Latch, Safety Standards

Lift Speed:

7 fpm

Housing Width:

5 13/32 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

8 5/16 in

Housing Length:

16 29/32 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

5 13/32 in

Body Depth:

8 5/16 in

For Minimum Beam Height:

Not Applicable

Body Length:

16 29/32 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

10 ft

Controller Cord Length:

8 3/16 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 1/2 in

Minimum Retracted Length:

27 13/16 in

Load Capacity:

4,000 lb

Minimum Between Hooks:

27 13/16 in

Motor HP:

1.2 hp

Phase:

3

Standards:

Safety Latch, Safety Standards

Voltage:

230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Item:

Electric Chain Hoist

Reeving:

2

Thermal Protection:

Yes

Control Cord:

6 ft

Amps @ Low Volts:

4.8 A

Number of Speeds:

1

Trolley Configuration:

Hook Mounted-No Trolley

Trolley Speed:

Not Applicable

Features:

Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

7 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

2

Motor Horsepower:

1 1/4 hp

Headroom:

27 13/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

4,000 lb

Current at Minimum Voltage:

4.8 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

2.5 A

Body Finish:

Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
