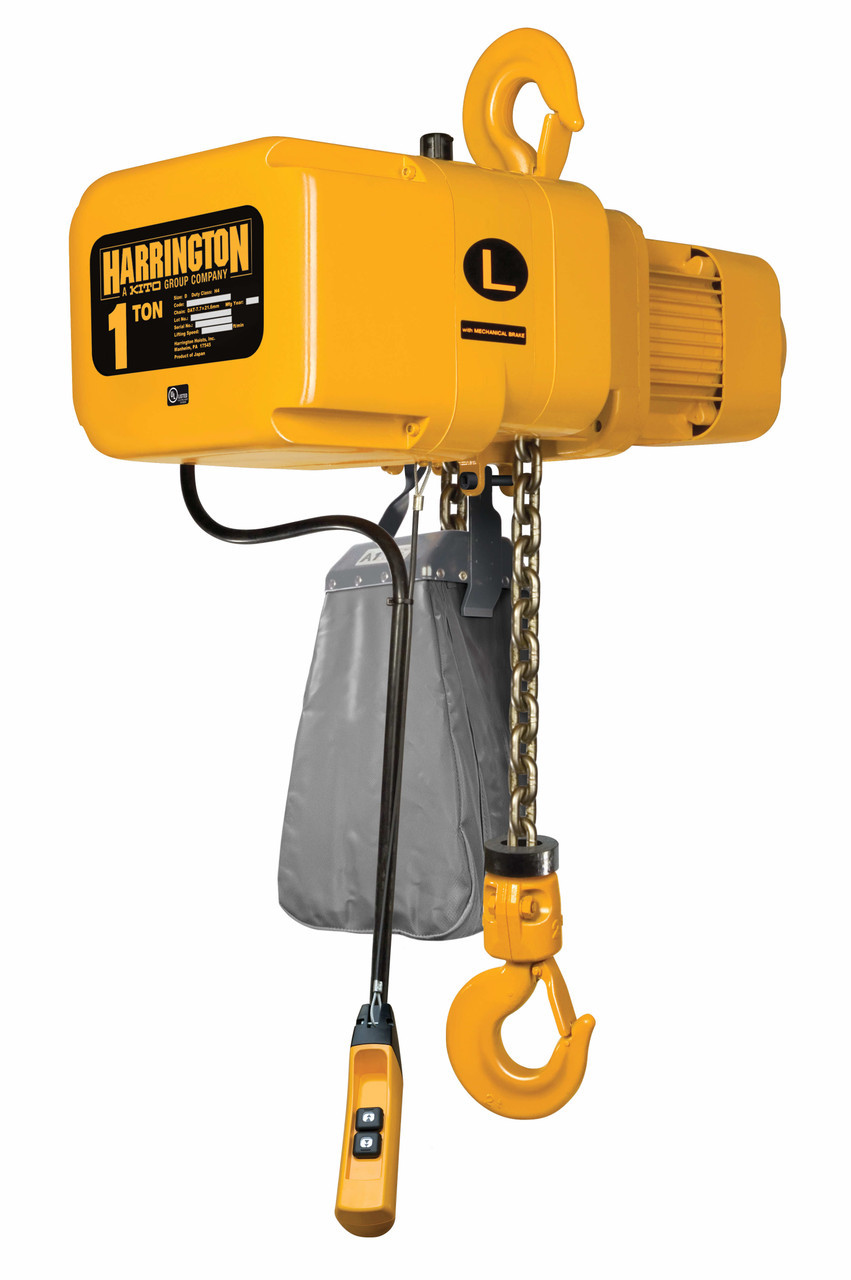

NER Electric Chain Hoist 15' Lift-Capacity 1 Tons NER010S Electric Chain Hoist HARRINGTON

Product Overview

The NER010S-15 HARRINGTON NER Electric Chain Hoist is a powerful and reliable tool that is designed to handle tough lifting tasks with ease. With a lifting capacity 1 Tons, this hoist can handle even the heaviest loads. With a lift height of 15 feet, this hoist offers maximum versatility, allowing you to lift objects effortlessly and with precision. The electric operation ensures smooth and efficient performance, enabling you to complete your tasks quickly and safely.No matter the industry or environment, the NER010S-15 HARRINGTON NER Electric Chain Hoist is built to withstand the most demanding conditions. Its rugged construction and reliable performance make it the perfect companion for those working in warehouses, construction sites, and other challenging environments.Durability and longevity are key features of this hoist. From its sturdy chain to its robust motor, every component has been engineered to withstand heavy use and harsh conditions. You can trust this hoist to keep working consistently, even in the most demanding environments.Safety is always a top priority when lifting heavy loads, and this hoist has you covered. Equipped with safety features such as brakes and overload protection, it ensures that your operations remain secure at all times. You can have peace of mind knowing that the NER010S-15 HARRINGTON NER Electric Chain Hoist will not compromise on safety.In summary, the NER010S-15 HARRINGTON NER Electric Chain Hoist is the ultimate solution for your heavy-duty lifting needs. Its exceptional performance, versatility, durability, and safety features make it a reliable and indispensable tool for professionals in various industries. Elevate your lifting operations with the precision and power of this electric chain hoist.

Product Specifications

.

Part Number:

NER010S-15

Color:

Yellow

Hoist Lift:

15 ft

Product:

Electric Chain Hoist, 2,000 lb, 15 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container, Limit Switches, Plug-In Connections

Lift Speed:

28 fpm

Housing Width:

14 13/16 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

8 5/16 in

Housing Length:

23 1/2 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

14 13/16 in

Body Depth:

8 5/16 in

For Minimum Beam Height:

Not Applicable

Body Length:

23 1/2 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

15 ft

Controller Cord Length:

8 3/16 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 3/16 in

Minimum Retracted Length:

16 29/32 in

Load Capacity:

2,000 lb

Minimum Between Hooks:

16 15/16 in

Motor HP:

2.4 hp

Phase:

3

Standards:

ANSI/ASME B30.16, ANSI/ASME HST-1M, ANSI/NFPA 70, UL 1340

Voltage:

208/230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control:

110V Push Button Control Pendant

Control Cord:

11 ft

Amps @ Low Volts:

8.6 A

Number of Speeds:

1

Trolley Configuration:

Hook Mounted-No Trolley

Trolley Speed:

Not Applicable

Features:

Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option

Material:

Die Cast Aluminum

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

28 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

2 3/8 hp

Headroom:

16 29/32 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

2,000 lb

Current at Minimum Voltage:

8.6 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

4.2 A

Body Finish:

Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
