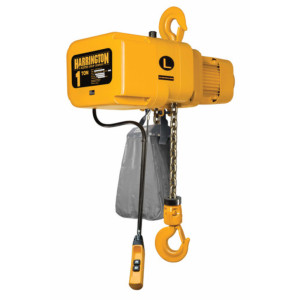

NER Electric Chain Hoist 10' Lift-Capacity 1 Tons NER010S Electric Chain Hoist HARRINGTON

Product Overview

The NER010S-10 HARRINGTON NER Electric Chain Hoist is engineered for professionals who demand both power and efficiency in their lifting equipment. Capable of lifting loads up to 1 ton, this electric hoist is perfect for a variety of applications, whether you‚re managing construction tasks, warehouse operations, or any heavy-duty lifting requirement. Its robust nature ensures that it can tackle the most challenging jobs with ease.

At a generous 10' lift height, the NER010S-10 offers exceptional versatility, allowing you to reach and maneuver your loads in various environments without limitations. The hoist‚ design focuses on providing a seamless lifting experience, enabling users to focus on completing their tasks promptly and safely.

Manufactured by Harrington, a reputable name recognized for its commitment to quality and innovation, this electric chain hoist stands up to rigorous usage, ensuring longevity and reliability. Built with durable materials and a powerful motor, it guarantees consistent performance over time.

The NER010S-10 is not just about strength; its user-friendly controls and smooth operation make it accessible for operators of all skill levels. Enhanced safety features provide peace of mind, making it suitable for even the most demanding workspaces. It is an investment that will enhance productivity and reduce downtime, proving its worth in any professional setting.

Elevate your operational capabilities effortlessly with the NER010S-10 HARRINGTON NER Electric Chain Hoist, where excellence meets durability. Experience the difference of working with high-quality tools designed to deliver superior performance, ensuring you complete every job with confidence and efficiency. The NER010S-10 is not just a hoist; it‚ a valuable partner in your lifting endeavors.

Product Specifications

.

Part Number:

NER010S-10

Color:

Yellow

Hoist Lift:

10 ft

Product:

Electric Chain Hoist, 2,000 lb, 10 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container, Limit Switches, Plug-In Connections

Lift Speed:

28 fpm

Housing Width:

14 13/16 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

8 5/16 in

Housing Length:

23 1/2 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

14 13/16 in

Body Depth:

8 5/16 in

For Minimum Beam Height:

Not Applicable

Body Length:

23 1/2 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

10 ft

Controller Cord Length:

8 3/16 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 3/16 in

Minimum Retracted Length:

16 29/32 in

Load Capacity:

2,000 lb

Minimum Between Hooks:

16 15/16 in

Motor HP:

2.4 hp

Phase:

3

Standards:

ANSI/ASME B30.16, ANSI/ASME HST-1M, ANSI/NFPA 70, UL 1340

Voltage:

208/230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

6 ft

Amps @ Low Volts:

8.6 A

Number of Speeds:

1

Trolley Configuration:

Hook Mounted-No Trolley

Trolley Speed:

Not Applicable

Features:

Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option

Material:

Die Cast Aluminum

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

28 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Programmable by Internal Controls=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

2 3/8 hp

Headroom:

16 29/32 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

2,000 lb

Current at Minimum Voltage:

8.6 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

4.2 A

Body Finish:

Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
