Part Number
Part Number NER005L-FG-20
Color White
Hoist Lift 20 ft

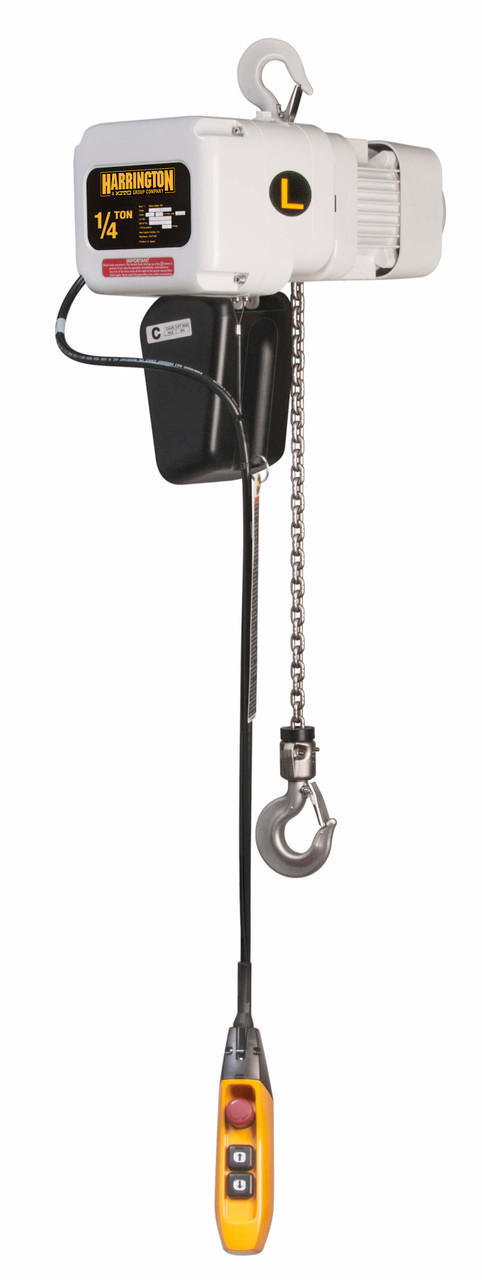

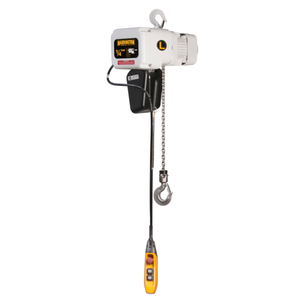

Product Electric Food Grade Chain Hoist, 1,000 lb, 20 ft, Hook Mounted-No Trolley, White=Hoist Mount=Hook Mounted-No Trolley
Includes Chain Container, Quick Disconnect Plugs On Pendant and Power Cord
Lift Speed 15 fpm
Housing Width 8 1/2 in
Manufacturers Warranty Length 10 yr Brake Warranty, 3 yr
Housing Depth 14 5/8 in
Housing Length 22 3/8 in
For Minimum Beam Flange Width Not Applicable
For Maximum Beam Flange Width Not Applicable
For Maximum Beam Height Not Applicable
MFR Warranty Length 1 yr
Body Width 8 1/2 in
Body Depth 14 5/8 in
For Minimum Beam Height Not Applicable
Body Length 22 3/8 in
Minimum Radius Curve Not Applicable
Maximum Lifting Length 20 ft
Controller Cord Length 16 ft
Trolley Wheel Diameter Not Applicable
Lifting Hook Opening Width 14 5/8 in
Minimum Retracted Length 14 19/32 in
Load Capacity 1,000 lb
Minimum Between Hooks 14 5/8 in
Motor HP 0.75 hp
Phase 3

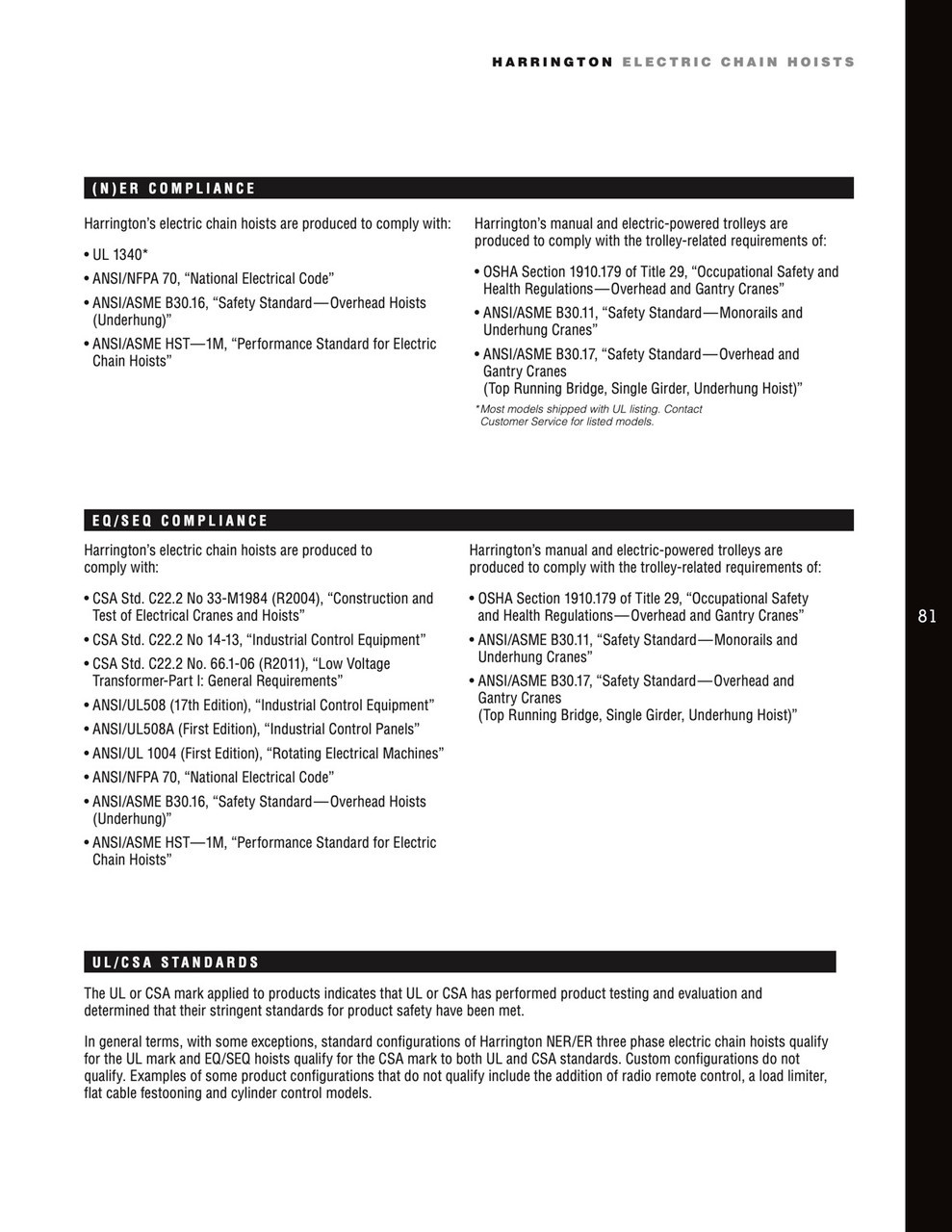

Standards ASME B30.16, ASME HST-1M, FDA Approved, RoHS Compliant
Voltage 230/460V
Fits Brand Harrington Hoists Inc
Lubrication Food Grade Oil
Reeving 1
Thermal Protection Yes
Classification H4
Brake DC Current
Control Cord 16 ft
Amps @ Low Volts 3.4 A
Number of Speeds 1
Trolley Configuration Hook Mounted-No Trolley
Trolley Speed Not Applicable
Lifting Hook Material Carbon Steel
Includes Clutch Clutch Included
Overload Protection Included Yes
Brake Type DC Current
Maximum Lift Speed Not Applicable
Included Components Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Fixed Lift Speed 15 fpm
Clutch Type Friction
Minimum Lift Speed Not Applicable
Pendant IP Rating IP65
Chain Finish Epoxy Painted
Controls Push Button Pendant=Mount Type=Hook Mounted-No Trolley
Starts and Stops per Hour 360
Duty Classification H4
Maximum Pulling Capacity Not Applicable
Number of Reeves 1
Motor Horsepower 3/4 hp
Headroom 14 5/8 in
Includes Brake Brake Included
Lifting Hook Type Swivel Hook with Safety Latch
Maximum Lifting Capacity 1,000 lb
Current at Minimum Voltage 3.4 A
Trolley Wheel Material Not Applicable
Current at Maximum Voltage 3.4 A
Body Finish Epoxy Painted
Number of Load Chains 1
Trolley IP Rating Not Applicable
Programmable Non-Programmable
