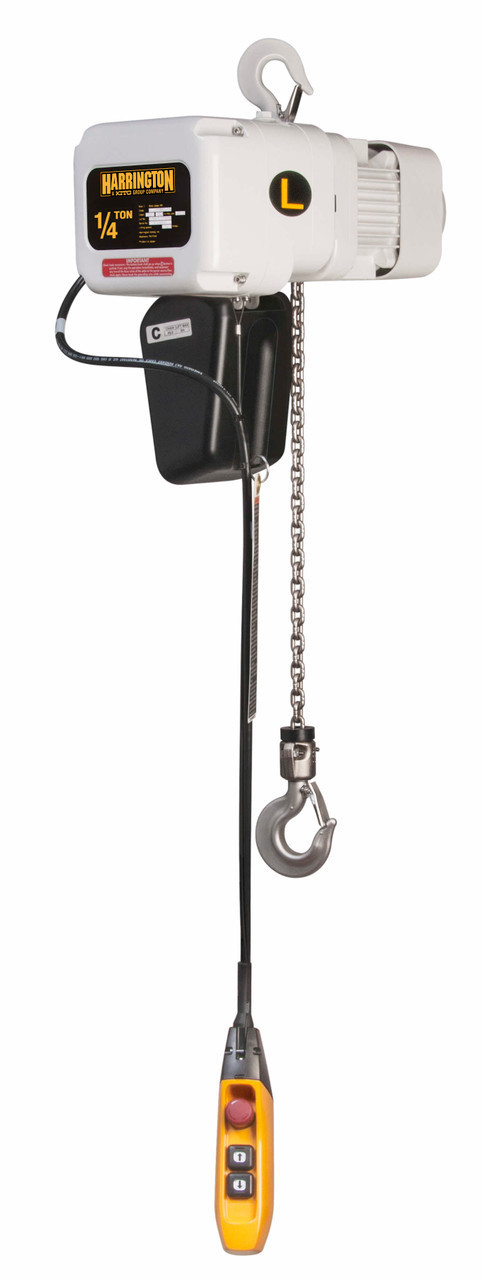

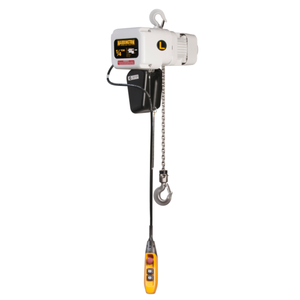

NER-FG Food Grade Electric Chain Hoist 15' Lift-Capacity 1/2 Tons NER005L-FG Electric Chain Trolley HARRINGTON

Product Overview

Upgrade your food processing or packaging operations with the NER005L-FG-15 HARRINGTON NER-FG Food Grade Electric Chain Hoist. This top-quality hoist is specifically designed for food-grade applications, ensuring maximum safety, efficiency, and compliance.With Capacity ranging from 1/4 to 2 tons, the NER005L-FG-15 is suitable for a wide range of lifting needs in the food industry. Whether you need to lift heavy ingredients, equipment, or packaged goods, this hoist has you covered. Its electric operation provides smooth and precise lifting, allowing for easy maneuverability and precise positioning.What sets the NER005L-FG-15 apart is its food-grade materials. Manufactured using only the highest quality materials, this hoist ensures cleanliness and hygiene in your food processing or packaging facility. Unlike standard hoists that can compromise the safety and cleanliness of your operations, this food-grade hoist maintains the integrity of your products.When it comes to hoist manufacturing, Harrington is a trusted name in the industry. With their expertise and commitment to quality, you can trust that the NER005L-FG-15 delivers reliable performance and enhanced productivity. Designed to meet the unique challenges of food-grade operations, this hoist guarantees safety, efficiency, and compliance.Upgrade your food-grade lifting system today with the NER005L-FG-15 HARRINGTON NER-FG Food Grade Electric Chain Hoist. Whether you're operating a small-scale food processing facility or a large-scale packaging plant, this hoist is the perfect solution to improve your operations. With its 15' lift capacity and reliable performance, you can trust this hoist to meet your lifting needs and elevate your business to new heights. Invest in the best for your food-grade operations and experience the difference the NER005L-FG-15 can make.

Product Specifications

.

Part Number:

NER005L-FG-15

Color:

White

Hoist Lift:

15 ft

Product:

Electric Food Grade Chain Hoist, 1,000 lb, 15 ft, Hook Mounted-No Trolley, White=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container, Quick Disconnect Plugs On Pendant and Power Cord

Lift Speed:

15 fpm

Housing Width:

8 1/2 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

14 5/8 in

Housing Length:

22 3/8 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

8 1/2 in

Body Depth:

14 5/8 in

For Minimum Beam Height:

Not Applicable

Body Length:

22 3/8 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

15 ft

Controller Cord Length:

11 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

14 5/8 in

Minimum Retracted Length:

14 19/32 in

Load Capacity:

1,000 lb

Minimum Between Hooks:

14 5/8 in

Motor HP:

0.75 hp

Phase:

3

Standards:

ASME B30.16, ASME HST-1M, FDA Approved, RoHS Compliant

Voltage:

230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Food Grade Oil

Reeving:

1

Thermal Protection:

Yes

Control:

11 ft

Control Cord:

11 ft

Amps @ Low Volts:

3.4 A

Number of Speeds:

1

Trolley Configuration:

Hook Mounted-No Trolley

Trolley Speed:

Not Applicable

Material:

Not Applicable

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

15 fpm

Clutch Type:

Friction

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Epoxy Painted

Controls:

=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

3/4 hp

Headroom:

14 5/8 in

Includes Brake:

Brake Included

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

1,000 lb

Current at Minimum Voltage:

3.4 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

3.4 A

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
