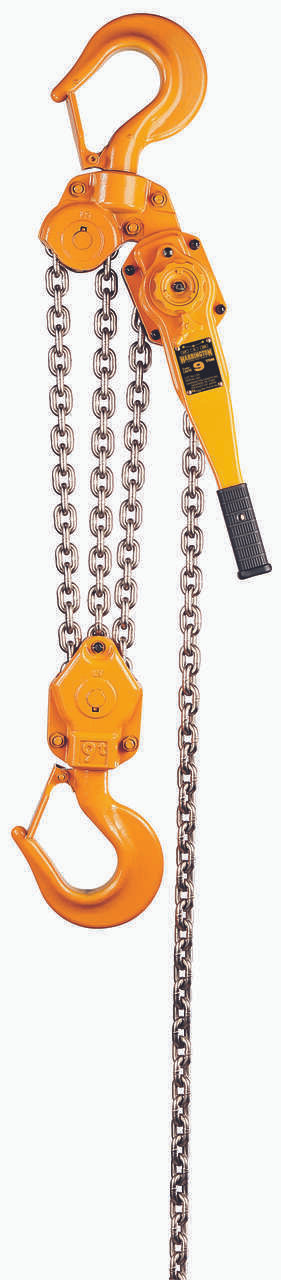

HARRINGTON LB Lever Hoist 10' Lift-Capacity 9 Ton LB090 Lever Hoist

Product Overview

The HARRINGTON LB090 LB Lever Hoist is engineered to meet the demands of the toughest lifting jobs, boasting an impressive 10' lift capacity and a robust 9-ton load limit. This lever hoist is the definitive solution for professionals who need reliable performance without compromise. Its compact design is ideal for projects in confined spaces, allowing operators to work efficiently without sacrificing power.

Crafted for versatility, the LB090-10 excels in applications where heavy loads need to be raised, lowered, or positioned accurately. Whether it’s for vertical, horizontal, or inverted lifting, this hoist delivers unmatched performance. The universal design accommodates any load angle, making it the perfect choice for a wide array of industrial tasks. With the LB090-10, you are guaranteed efficiency and effectiveness, empowering you to tackle lifting operations with confidence.

• 10-foot lift capacity for versatile lifting applications
• 9-ton load limit for handling heavy weights
• Compact design ideal for tight spaces
• Effective in lifting loads in any angle—horizontal or vertical
• User-friendly operation simplifies lifting tasks
• Constructed for durability and longevity under real-world conditions
• Recognized as the number one selling lever hoist in the U.S.
• Perfect for professional contractors and DIY enthusiasts alike

Choose the HARRINGTON LB090 LB Lever Hoist for superior performance and reliability in all your heavy lifting tasks. Its outstanding strength and operational ease set it apart from the competition. With a legacy validated by thousands of satisfied users, this hoist ensures not only the safety of your lifting operations but also maximizes your efficiency on the job. Don’t settle for anything less than excellence in your lifting equipment. Rely on the LB090-10 HARRINGTON LB Lever Hoist and get your job done right every time.

Product Specifications

.

product:

Lever Chain Hoist, 18,000 lb Load Capacity, 10 ft Hoist Lift, 2 13/16 in Hook Opening

Load Capacity:

18,000 lb

Chain Length:

33 ft

Hook Opening:

2 13/16 in

Lever Length:

16 5/16 in

Manufacturers Warranty Length:

1 yr

Body Depth:

7 1/2 in

Body Width:

12 in

Minimum Retracted Length:

26 13/16 in

For Min Beam Flange Width:

Not Applicable

For Min Beam Flange Height:

Not Applicable

For Max Beam Flange Width:

Not Applicable

For Max Beam Flange Height:

Not Applicable

Maximum Lifting Length:

10 ft

Lifting Hook Opening Width:

2 29/32 in

Item:

Lever Chain Hoist

Hoist Lift:

10 ft

includes:

Safety Latch Hooks

Chain:

Nickel Plated

Standards:

ANSI/ASME B30.21, ANSI/ASME HST-3M

Hoist Mount:

Hook Mounted - No Trolley

Pull to Lift Rated Load:

78 lb

Min Between Hooks:

26 13/16 in

Brake:

Weston Style Load Brake

Hoist Overload Protection:

No

Finish:

Powder Coated

Reeving:

3

Trolley Configuration:

Hook Mounted - No Trolley

Color:

Yellow

Features:

Patented Hardening Process, Safety Tip Hook and Latch, State-Of-The-Art Chain Technology, Structural Steel Side Plates

Chain Material:

Nickel Plated

Body Finish:

Powder Coated

Maximum Pulling Capacity:

18,000 lb

Overload Protection Included:

No

Includes Clutch:

Clutch Not Included

Power Source:

Lever

Lifting Hook Type:

Hook with Safety Latch

Includes Brake:

Brake Included

Number of Reeves:

3

Maximum Lifting Capacity:

18,000 lb

Lifting Hook Material:

Chromium-Molybdenum Alloy Steel

Number of Load Chains:

1

Body Material:

Steel

Operating Position:

Horizontal, Vertical

Resistance Properties:

Corrosion Resistant, Wear Resistant

Mount Type:

Hook Mounted - No Trolley

Chain Grade:

Grade 100

Brake Type:

Weston Style

Chain Finish:

Nickel Plated

Headroom:

26 13/16 in
