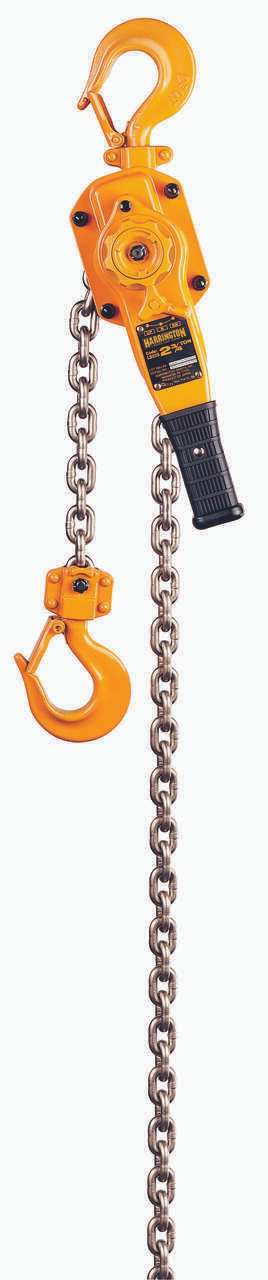

HARRINGTON LB Lever Hoist 5' Lift-Capacity 2 3/4 Ton LB028 Lever Hoist

Product Overview

The LB028-5 HARRINGTON LB Lever Hoist 5' Lift is the epitome of quality and reliability. Crafted with precision and designed for easy operation, this lever hoist is ready to take on any challenge that comes its way. Its compact, low headroom design makes it perfect for tight spaces, ensuring that no job is too big or too small.This lever hoist is the best-selling hoist in the U.S. for a reason. Its versatility is unmatched, allowing it to be used in various positions-horizontally, vertically, or even inverted. No matter the load angle, this hoist effortlessly handles it with ease.Not only does the LB028-5 HARRINGTON LB Lever Hoist excel in performance, but it also prioritizes safety. It is equipped with a load limiter, preventing overloading and ensuring the safety of both the hoist and the operator. This feature provides peace of mind, allowing you to focus on the task at hand without any worries.The LB028-5 HARRINGTON LB Lever Hoist is designed to be user-friendly. Its ergonomic handle provides a comfortable grip, reducing fatigue and increasing efficiency. With its smooth operation and precise load placement, this lever hoist allows for seamless lifting and lowering.Durability is also a key feature of the LB028-5 HARRINGTON LB Lever Hoist. It is constructed with high-quality materials designed to withstand the harshest environments. Whether you're working in a warehouse, construction site, or any other demanding setting, this hoist will not let you down.With its exceptional features and superior performance, the LB028-5 HARRINGTON LB Lever Hoist 5' Lift is the ultimate solution for all your lifting needs. Trust in its unbeatable quality and reliability to get the job done efficiently and safely. Invest in the LB028-5 HARRINGTON LB Lever Hoist and experience lifting like never before.

Product Specifications

.

product:

Lever Chain Hoist, 5,500 lb Load Capacity, 5 ft Hoist Lift, 1 3/8 in Hook Opening

Load Capacity:

5,500 lb

Chain Length:

6 ft

Hook Opening:

1 3/8 in

Lever Length:

10 13/32 in

Manufacturers Warranty Length:

1 yr

Body Depth:

6 13/16 in

Body Width:

5 29/32 in

Minimum Retracted Length:

14 13/16 in

For Min Beam Flange Width:

Not Applicable

For Min Beam Flange Height:

Not Applicable

For Max Beam Flange Width:

Not Applicable

For Max Beam Flange Height:

Not Applicable

Maximum Lifting Length:

5 ft

Lifting Hook Opening Width:

1 13/32 in

Item:

Lever Chain Hoist

Hoist Lift:

5 ft

includes:

Safety Latch Hooks

Chain:

Manganese

Standards:

ANSI/ASME B30.21, ANSI/ASME HST-3M

Hoist Mount:

Hook Mounted - No Trolley

Pull to Lift Rated Load:

81 lb

Min Between Hooks:

14 13/16 in

Brake:

Weston Style Load Brake

Hoist Overload Protection:

No

Finish:

Electrostatic Enamel

Reeving:

1

Trolley Configuration:

Hook Mounted - No Trolley

Color:

Yellow

Features:

Patented Hardening Process, Safety Tip Hook and Latch, State-Of-The-Art Chain Technology, Structural Steel Side Plates

Chain Material:

Nickel Plated

Body Finish:

Powder Coated

Maximum Pulling Capacity:

5,500 lb

Overload Protection Included:

No

Includes Clutch:

Clutch Not Included

Power Source:

Lever

Lifting Hook Type:

Hook with Safety Latch

Includes Brake:

Brake Included

Number of Reeves:

1

Maximum Lifting Capacity:

5,500 lb

Lifting Hook Material:

Chromium-Molybdenum Alloy Steel

Number of Load Chains:

1

Body Material:

Steel

Operating Position:

Horizontal, Vertical

Resistance Properties:

Corrosion Resistant, Wear Resistant

Mount Type:

Hook Mounted - No Trolley

Chain Grade:

Grade 100

Brake Type:

Weston Style

Chain Finish:

Nickel Plated

Headroom:

14 13/16 in
