Product Overview

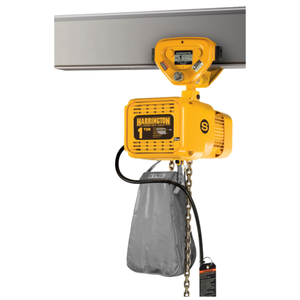

Elevate your lifting capabilities with the ERP Electric Chain Hoist with Push Trolley. Engineered by HARRINGTON, this hoist effortlessly handles heavy loads up to 1/2 tons with a 15' lift height.
Designed for versatility, it excels in workshops, warehouses, and construction sites, ensuring efficient load movements with its push trolley system. Safety features like overload protection and ergonomic controls prioritize operator well-being.
Compact yet powerful, this hoist is a reliable choice for professionals and DIY enthusiasts seeking precision and productivity in their lifting tasks. Upgrade your operations with the ERP005L Electric Chain Hoist.
Experience smooth, reliable lifting performance with HARRINGTON's trusted quality - the indispensable tool for heavy lifting needs.
Product Specifications
.
product:
Electric Chain Hoist, 1,000 lb, 15 ft, Push Trolley
Color:
Yellow
Hoist Lift:
15 ft
Hoist Mount:
Push Trolley
Includes:
Chain Container,, Push Trolley
Lift Speed:
7 fpm
Housing Width:
13 in
Manufacturers Warranty Length:
1 yr
Housing Length:
22 1/4 in
Housing Depth:
6 5/8 in
Minimum Retracted Length:
15 13/32 in
Minimum Radius Curve:
43 5/16 in
For Maximum Beam Height:
Not Applicable
Trolley Wheel Diameter:
3 1/5 in
Lifting Hook Opening Width:
29/32 in
Maximum Lifting Length:
15 ft
Controller Cord Length:
11 ft
For Max Beam Flange Width:
5 in
Body Depth:
6 5/8 in
Body Length:
22 1/4 in
For Minimum Beam Height:
3 3/16 in
Body Width:
13 in
For Min Beam Flange Width:
2 1/4 in
Electric Hoist Item:
Chain Hoist
Load Capacity:
1,000 lb
Min Between Hooks:
14 5/8 in
Motor HP:
0.34 hp
Phase:
1
Standards:
ANSI/ASME B30.16, ASME HST-1M
Voltage:
115/230V
Fits Brand:
Harrington Hoists Inc
Lubrication:
Oil Bath
Control Cord:
11 ft
Reeving:
1
Clutch:
Friction Clutch
Trolley Configuration:
Push Trolley
Thermal Protection:
Option
Amps @ Low Volts:
7.7 A
Brake:
Pull-Rotor
Finish:
Electrostatic Enamel
Number of Speeds:
1
Fits Beam Flange W:
2-1/4 in to 5 in
Classification:
H4
Control:
110v
Item:
Electric Chain Hoist
Trolley Speed:
Not Applicable
Features:
Extreme-Duty, Fan-Cooled Motor, Heavy Cast-Iron Chain Guide, Friction Clutch, Oil Bath-Lubricated, Heat-Treated Gearing, Self-Adjusting Maintenance-Free Brake
Material:
Die Cast Aluminum
Trolley Wheel Material:
Steel
Chain Finish:
Nickel Plated
Body Finish:
Enamel
Duty Classification:
H4
Controls:
Push Button Pendant
Motor Horsepower:
3/8 hp
Includes Clutch:
Clutch Included
Maximum Lifting Capacity:
1,000 lb
product
product Electric Chain Hoist, 1,000 lb, 15 ft, Push Trolley
Color Yellow
Hoist Lift 15 ft
Hoist Mount Push Trolley
Includes Chain Container,, Push Trolley
Lift Speed 7 fpm
Housing Width 13 in
Manufacturers Warranty Length 1 yr
Housing Length 22 1/4 in
Housing Depth 6 5/8 in
Minimum Retracted Length 15 13/32 in
Minimum Radius Curve 43 5/16 in
For Maximum Beam Height Not Applicable
Trolley Wheel Diameter 3 1/5 in
Lifting Hook Opening Width 29/32 in
Maximum Lifting Length 15 ft
Controller Cord Length 11 ft
For Max Beam Flange Width 5 in
Body Depth 6 5/8 in
Body Length 22 1/4 in
For Minimum Beam Height 3 3/16 in
Body Width 13 in
For Min Beam Flange Width 2 1/4 in
Electric Hoist Item Chain Hoist
Load Capacity 1,000 lb
Min Between Hooks 14 5/8 in
Motor HP 0.34 hp
Phase 1
Standards ANSI/ASME B30.16, ASME HST-1M
Voltage 115/230V
Fits Brand Harrington Hoists Inc
Lubrication Oil Bath
Control Cord 11 ft
Reeving 1
Clutch Friction Clutch
Trolley Configuration Push Trolley
Thermal Protection Option
Amps @ Low Volts 7.7 A
Brake Pull-Rotor
Finish Electrostatic Enamel
Number of Speeds 1
Fits Beam Flange W 2-1/4 in to 5 in
Classification H4
Control 110v
Item Electric Chain Hoist
Trolley Speed Not Applicable
Features Extreme-Duty, Fan-Cooled Motor, Heavy Cast-Iron Chain Guide, Friction Clutch, Oil Bath-Lubricated, Heat-Treated Gearing, Self-Adjusting Maintenance-Free Brake
Material Die Cast Aluminum
Trolley Wheel Material Steel
Chain Finish Nickel Plated
Body Finish Enamel
Duty Classification H4
Controls Push Button Pendant
Motor Horsepower 3/8 hp
Includes Clutch Clutch Included
Maximum Lifting Capacity 1,000 lb
