ERP Electric Chain Hoist with Push Trolley 10' Lift-Capacity 1/2 Tons ERP005L Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

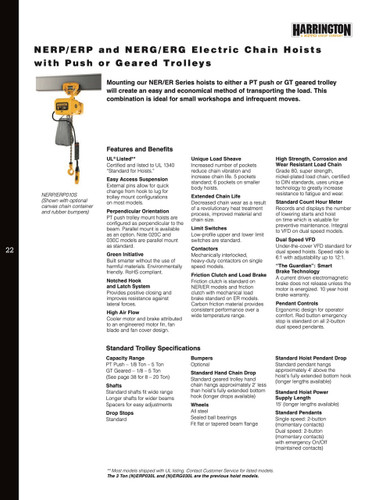

The ERP005L-10 HARRINGTON ERP Electric Chain Hoist with Push Trolley is a reliable and powerful tool that will make transporting heavy loads a breeze. With a lifting capacity ranging from 1/2 Tons, this hoist is perfect for small workshops and infrequent moves. The 10-foot lift capability of this hoist allows you to easily maneuver your loads without any hassle. Whether you need to lift heavy equipment or move materials from one location to another, this hoist will get the job done efficiently and safely.The NER/ER Series hoist, when mounted on the PT push trolley, creates an economical and efficient solution for all your transportation needs. The push trolley allows for smooth and controlled movement, ensuring that your loads are transported safely and securely.Investing in the ERP005L-10 HARRINGTON ERP Electric Chain Hoist with Push Trolley will save you time and energy. Instead of struggling to move heavy loads manually or with less powerful hoists, this hoist will do all the heavy lifting for you. You can trust in the reliability and durability of this hoist to perform consistently and effectively, even in demanding work environments.Whether you're working in a workshop, warehouse, or construction site, this hoist will be a valuable addition to your equipment. It is designed to withstand heavy use and deliver reliable performance, giving you peace of mind knowing that you can rely on it to get the job done.Make your work environment more efficient and productive with the ERP005L-10 HARRINGTON ERP Electric Chain Hoist with Push Trolley. Experience the difference it can make in your daily tasks and invest in this reliable and powerful hoist today.

Product Specifications

.

product:

Electric Chain Hoist, 1,000 lb, 15 ft, Push Trolley

Color:

Yellow

Hoist Lift:

15 ft

Hoist Mount:

Push Trolley

Includes:

Chain Container,, Push Trolley

Lift Speed:

7 fpm

Housing Width:

13 in

Manufacturers Warranty Length:

1 yr

Housing Length:

22 1/4 in

Housing Depth:

6 5/8 in

Minimum Retracted Length:

15 13/32 in

Minimum Radius Curve:

43 5/16 in

For Maximum Beam Height:

Not Applicable

Trolley Wheel Diameter:

3 1/5 in

Lifting Hook Opening Width:

29/32 in

Maximum Lifting Length:

15 ft

Controller Cord Length:

11 ft

For Max Beam Flange Width:

5 in

Body Depth:

6 5/8 in

Body Length:

22 1/4 in

For Minimum Beam Height:

3 3/16 in

Body Width:

13 in

For Min Beam Flange Width:

2 1/4 in

Electric Hoist Item:

Chain Hoist

Load Capacity:

1,000 lb

Min Between Hooks:

14 5/8 in

Motor HP:

0.34 hp

Phase:

1

Standards:

ANSI/ASME B30.16, ASME HST-1M

Voltage:

115/230V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Control Cord:

11 ft

Reeving:

1

Clutch:

Friction Clutch

Trolley Configuration:

Push Trolley

Thermal Protection:

Option

Amps @ Low Volts:

7.7 A

Brake:

Pull-Rotor

Finish:

Electrostatic Enamel

Number of Speeds:

1

Fits Beam Flange W:

2-1/4 in to 5 in

Classification:

H4

Control:

110v

Item:

Electric Chain Hoist

Trolley Speed:

Not Applicable

Features:

Extreme-Duty, Fan-Cooled Motor, Heavy Cast-Iron Chain Guide, Friction Clutch, Oil Bath-Lubricated, Heat-Treated Gearing, Self-Adjusting Maintenance-Free Brake

Material:

Die Cast Aluminum

Trolley Wheel Material:

Steel

Chain Finish:

Nickel Plated

Body Finish:

Enamel

Duty Classification:

H4

Controls:

Push Button Pendant

Motor Horsepower:

3/8 hp

Includes Clutch:

Clutch Included

Maximum Lifting Capacity:

1,000 lb
