Product Overview

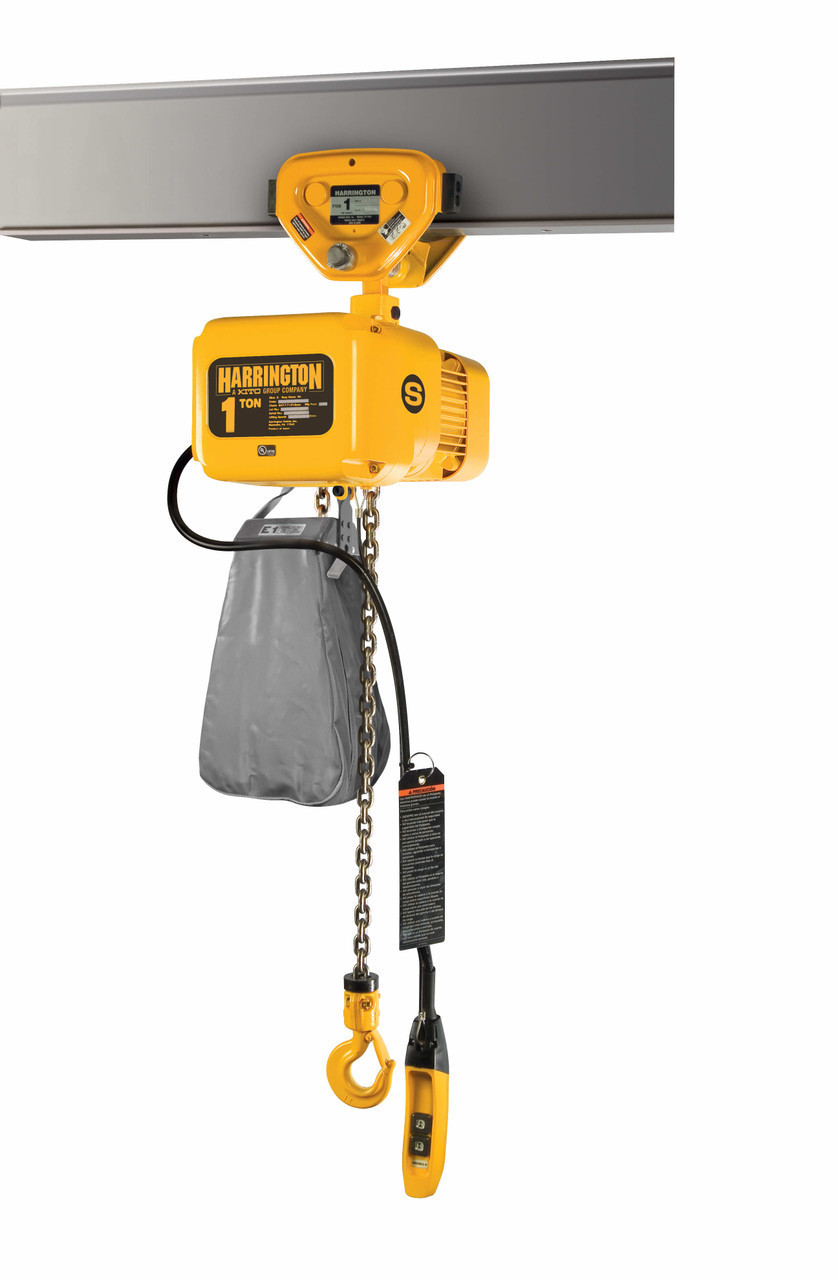

Upgrade your workshop and revolutionize your lifting operations with the ERP003H-20 HARRINGTON ERP Electric Chain Hoist with Push Trolley. This exceptional piece of equipment is a must-have for any industrial setting, delivering unparalleled efficiency and productivity.With a 20' lift capacity, the ERP003H-20 can effortlessly handle weights ranging from 1/4 Tons. This versatility allows you to tackle a wide range of lifting tasks, from heavy machinery to materials and equipment. No matter the load, this electric chain hoist is up to the challenge.Say goodbye to manual transportation with the included PT push trolley. With this trolley, you can effortlessly move your lifted items across your workshop, saving time and effort. Gone are the days of back-breaking labor ‚ embrace a more convenient and efficient solution with the ERP003H-20.Durability and reliability are the foundation of the ERP003H-20. It is built with high-quality materials to withstand daily use and ensure long-lasting performance. You can trust this hoist to consistently deliver exceptional lifting capabilities, minimizing downtime and maximizing productivity.The ERP003H-20 doesn't just offer exceptional functionality and reliability ‚ it also provides great value for your investment. Designed for small workshops and occasional moves, this electric chain hoist and push trolley combination offers an economical and convenient solution for all your lifting needs. With the ERP003H-20, you don't have to compromise on quality or performance.Elevate your workshop to new heights and revolutionize your lifting operations with the ERP003H-20 HARRINGTON ERP Electric Chain Hoist with Push Trolley. Invest in this powerhouse of efficiency and experience the difference it can make in your daily operations. Don't settle for less when it comes to your lifting requirements ‚ choose the ERP003H-20 and embrace a new era of effortless lifting.Product Specifications
.Product Videos
Videos Hide Videos Show Videos
Custom Field
Part Number NERP003H-20
Color Yellow
Hoist Lift 20 ft
Product Electric Chain Hoist, 500 lb, 10 ft, Push Trolley=Hoist Mount=Push Trolley
Includes 10 Year Brake Warranty, Chain Container, Push Trolley, Quick Disconnect Plugs On Pendant And Power Cords
Lift Speed 53 fpm
Housing Width 13 11/16 in
Manufacturers Warranty Length 10 yr Brake Warranty, 3 yr
Housing Depth 7 1/2 in
Housing Length 20 in
For Minimum Beam Flange Width 2 1/4 in
For Maximum Beam Flange Width 4 in
For Maximum Beam Height Not Applicable
MFR Warranty Length 1 yr
Body Width 13 11/16 in
Body Depth 7 1/2 in
For Minimum Beam Height 3 in
Body Length 20 in
Minimum Radius Curve 43 5/16 in
Maximum Lifting Length 20 ft
Controller Cord Length 11 ft
Trolley Wheel Diameter 3 1/5 in
Lifting Hook Opening Width 1 3/32 in
Minimum Retracted Length 16 5/16 in
Load Capacity 500 lb
Minimum Between Hooks 16 5/16 in
Motor HP 1.2 hp
Phase 3

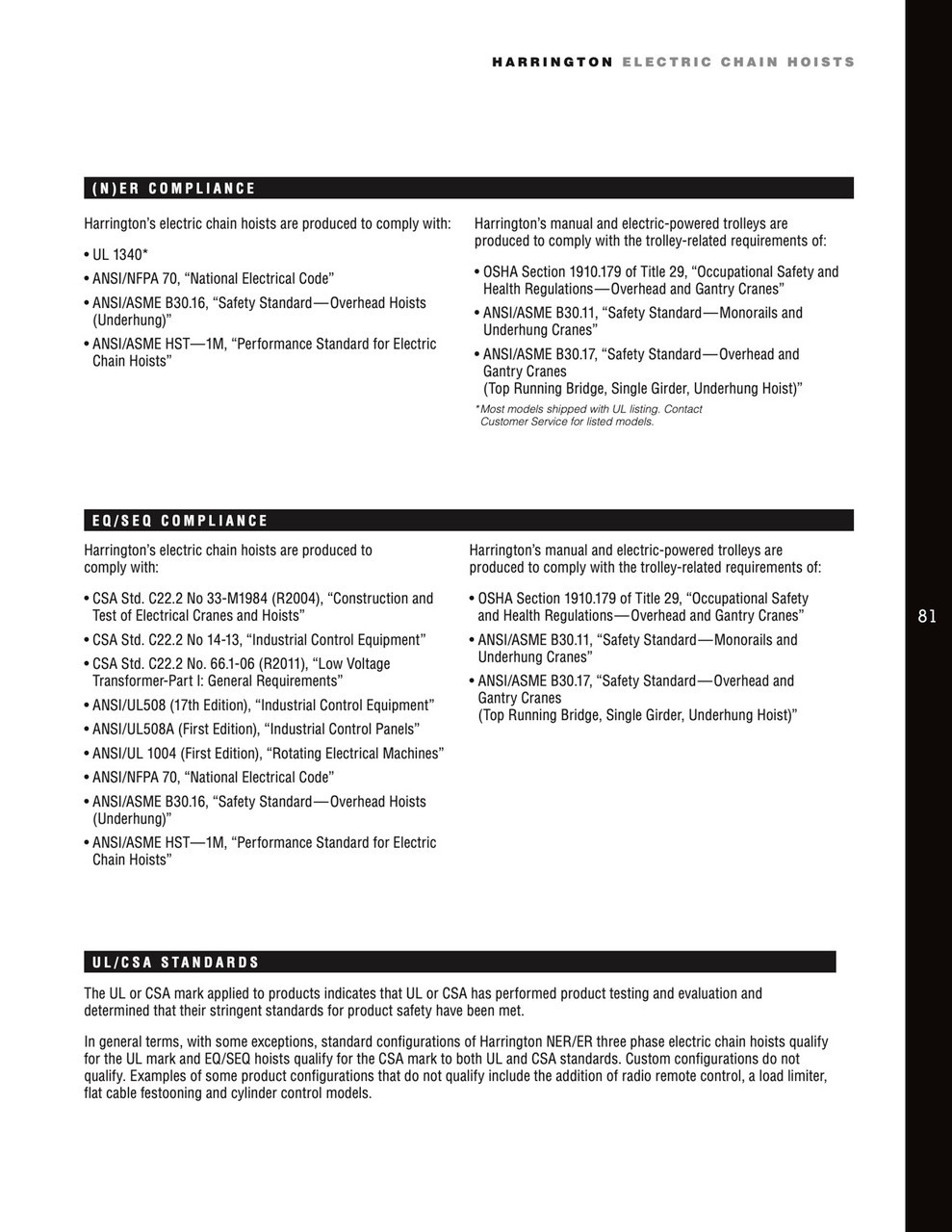

Standards ANSI/ASME B30.16, ASME HST-1M, NFPA 70, RoHS Compliant, UL 1340
Voltage 208/230/460V
Fits Brand Harrington Hoists Inc
Lubrication Oil Bath
Reeving 1
Thermal Protection Yes
Control Cord 11 ft
Amps @ Low Volts 4.8 A
Number of Speeds 1
Trolley Configuration Push Trolley
Trolley Speed Not Applicable

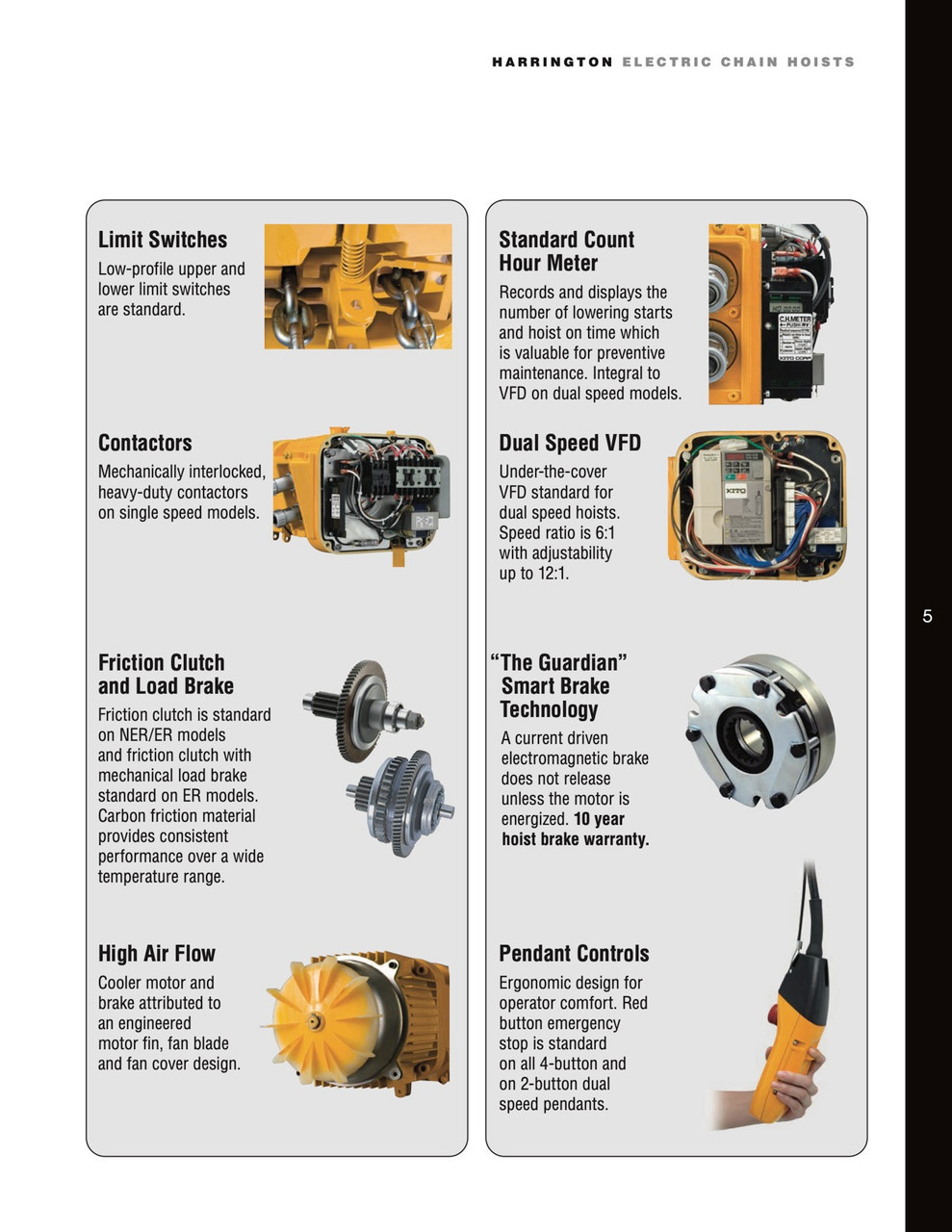

Features Count Hour Meter, Extreme Duty Motor, Push Trolley, Smart Brake Technology
Lifting Hook Material Carbon Steel
Includes Clutch Clutch Included
Overload Protection Included Yes
Brake Type DC Current
Chain Grade Grade 80
Maximum Lift Speed Not Applicable
Included Components Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Fixed Lift Speed 53 fpm
Clutch Type Friction Clutch
Minimum Lift Speed Not Applicable
Pendant IP Rating IP65
Chain Finish Nickel Plated
Controls Push Button Pendant=Mount Type=Push Trolley
Starts and Stops per Hour 360
Duty Classification H4
Maximum Pulling Capacity Not Applicable
Number of Reeves 1
Motor Horsepower 1 1/4 hp
Headroom 16 5/16 in
Includes Brake Brake Included
For Outdoor Use Yes
Hoist IP Rating IP55
Lifting Hook Type Swivel Hook with Safety Latch
Maximum Lifting Capacity 500 lb
Current at Minimum Voltage 4.8 A
Trolley Wheel Material Steel
Current at Maximum Voltage 2.5 A
Body Finish Enamel
Number of Load Chains 1
Body Material Aluminum
Trolley IP Rating Not Applicable
Programmable Non-Programmable
