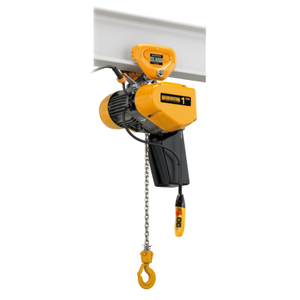

EQP Electric Chain Hoist with Push Trolley 15' Lift-Capacity 1 Ton EQP010SD Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

Experience superior lifting capabilities with the EQP010SD-15 HARRINGTON EQP Electric Chain Hoist with Push Trolley. This powerful and efficient hoist is designed to effortlessly transport loads of up to 1 ton, making it ideal for various industrial applications.

With its advanced VFD control and dual-speed operation, you possess complete control over the lifting process. The variable frequency drive (VFD) allows you to smoothly adjust the speed, ensuring precise and controlled lifting operations. Whether you require lifting heavy objects at a slow and steady pace, or swiftly moving lighter loads, the EQP010SD-15 accommodates your needs with unparalleled flexibility and versatility.

• Heavy-duty lifting capacity of up to 1 ton
• Integrated push trolley for easy maneuverability
• Variable Frequency Drive (VFD) for speed control
• Dual-speed operation for precise load handling
• Robust construction for durability and reliability
• Suitable for various industrial applications: warehouses, factories, construction sites
• Trusted brand: Harrington, renowned for exceptional engineering

Incorporating a PT push trolley, this hoist not only increases efficiency but also makes your lifting tasks considerably easier. The trolley’s durable construction guarantees long-lasting performance, providing you with peace of mind in the operations of your workplace.

When choosing lifting equipment, quality and reliability are paramount. Harrington has a longstanding reputation for exceptional engineering and craftsmanship; the EQP010SD-15 Electric Chain Hoist is no exception. This product is built to withstand the harshest working environments while delivering consistent performance. Structured with robust construction and trustworthy components, it tackles lifting tasks effortlessly, ensuring operational excellence.

Transform your lifting operations today with the EQP010SD-15 HARRINGTON EQP Electric Chain Hoist equipped with Push Trolley. Ideal for lifting heavy machinery, parts, or other materials, this hoist is designed for those who value power, control, and reliability. Count on Harrington to provide a lifting solution that surpasses your expectations and enhances your productivity while maintaining efficiency on site.

Product Specifications

.

Part Number:

EQP010SD-15

Color:

Yellow

Hoist Lift:

15 ft

Product:

Electric Chain Hoist, 2,000 lb, 15 ft, Push Trolley, Yellow=Hoist Mount=Push Trolley

Includes:

Chain Container

Lift Speed:

23/3.8 fpm

Housing Width:

15 29/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 39/64 in

Housing Length:

16 19/64 in

For Minimum Beam Flange Width:

2 1/4 in

For Maximum Beam Flange Width:

5 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

15 29/32 in

Body Depth:

9 5/8 in

For Minimum Beam Height:

3 9/16 in

Body Length:

16 5/16 in

Minimum Radius Curve:

51 1/4 in

Maximum Lifting Length:

15 ft

Controller Cord Length:

11 ft

Trolley Wheel Diameter:

4 1/4 in

Lifting Hook Opening Width:

1 3/16 in

Minimum Retracted Length:

19 5/16 in

Load Capacity:

2,000 lb

Minimum Between Hooks:

19 5/16 in

Motor HP:

2 hp

Phase:

3

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

11 ft

Amps @ Low Volts:

5.5 A

Number of Speeds:

2

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Stamped Steel Side Plates, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

23 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

3.8 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Push Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

2 hp

Headroom:

19 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

2,000 lb

Current at Minimum Voltage:

10.5 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

5.5 A

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
