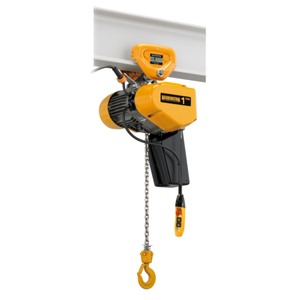

EQP Electric Chain Hoist with Push Trolley 15' Lift-Capacity 1/2 Ton EQP005SD Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

The EQP005SD-15 HARRINGTON EQP Electric Chain Hoist with Push Trolley 15' Lift-Capacity 1/2 Ton is the ideal solution for all your lifting needs. This exceptional hoist combines superior performance, reliability, and convenience to provide you with a hassle-free lifting experience.Featuring VFD control and dual-speed functionality, the EQP005SD-15 allows you to easily adjust the lifting speed according to your requirements. Whether you need a fast or slow lift, this hoist has got you covered. Its cutting-edge technology ensures precise and efficient lifting every time.Transporting your load has never been easier with the included push trolley. The push trolley enables seamless movement and provides maximum convenience during the lifting process. You can effortlessly transport your load from one place to another without any hindrances.Constructed with durability in mind, the EQP005SD-15 is built to withstand the toughest conditions. Its robust construction ensures long-lasting performance, making it an investment that will continue to deliver outstanding results for years to come.With a remarkable lift capacity of up to 1 ton and a generous 15-foot lift height, this hoist is perfect for a wide range of applications. Whether you need to lift heavy machinery, equipment, or materials, the EQP005SD-15 will get the job done smoothly and efficiently.When it comes to quality and reliability, look no further than Harrington. With their extensive expertise in the field, they have designed the EQP005SD-15 Electric Chain Hoist with Push Trolley to meet the highest standards of excellence. This hoist is the ultimate solution to enhance your productivity and efficiency.Overall, the EQP005SD-15 HARRINGTON EQP Electric Chain Hoist with Push Trolley 15' Lift-Capacity 1/8-1 Ton is a must-have for all your lifting needs. It offers superior performance, reliable operation, and convenient transportation, making it the ultimate lifting solution. Elevate your productivity with the EQP005SD-15 and experience the difference in your lifting operations. Trust in Harrington and choose the best.

Product Specifications

.

Part Number:

EQP005SD-15

Color:

Yellow

Hoist Lift:

15 ft

Product:

Electric Chain Hoist, 1,000 lb, 15 ft, Push Trolley, Yellow=Hoist Mount=Push Trolley

Includes:

Chain Container

Lift Speed:

25/4.2 fpm

Housing Width:

14 13/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 7/64 in

Housing Length:

16 29/32 in

For Minimum Beam Flange Width:

2 1/2 in

For Maximum Beam Flange Width:

4 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

14 13/32 in

Body Depth:

9 1/8 in

For Minimum Beam Height:

3 in

Body Length:

16 29/32 in

Minimum Radius Curve:

43 1/4 in

Maximum Lifting Length:

15 ft

Controller Cord Length:

11 ft

Trolley Wheel Diameter:

3 1/4 in

Lifting Hook Opening Width:

1 3/32 in

Minimum Retracted Length:

16 29/32 in

Load Capacity:

1,000 lb

Minimum Between Hooks:

16 7/8 in

Motor HP:

1 hp

Phase:

3

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

11 ft

Amps @ Low Volts:

3.3 A

Number of Speeds:

2

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

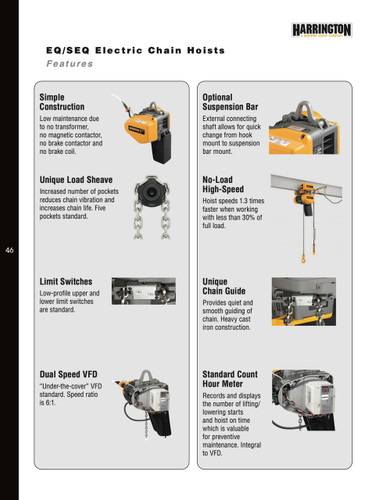

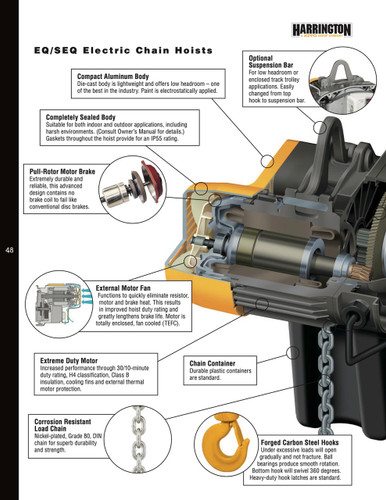

No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Stamped Steel Side Plates, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

25 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

4.2 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Push Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

1 hp

Headroom:

16 13/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

1,000 lb

Current at Minimum Voltage:

6.3 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

3.3 A

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
