EQP Electric Chain Hoist with Push Trolley 20' Lift-Capacity 1/4 Ton EQP003SD Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

Transform your lifting operations with the EQP003SD-20 HARRINGTON Electric Chain Hoist featuring a Push Trolley, engineered for efficiency and precision. This versatile hoist is ideal for a variety of applications, supporting a remarkable 20' lift and a capacity of 1/4 ton, making it suitable for tasks ranging from small assembly work to heavy-duty lifting requirements.

The EQP Electric Chain Hoist stands out with its advanced dual-speed VFD control, allowing operators to customize lifting speeds to match specific project demands. Whether your task requires meticulous handling of delicate items or swift movement for time-sensitive operations, the adjustable speed feature provides the flexibility needed to optimize performance across all lifting scenarios.

• 20' lifting height, perfect for various job sites
• 1/4 ton capacity, designed for both light and heavy-duty applications
• Dual-speed VFD control for customized lifting speeds
• PT push trolley for easy and safe movement of loads
• Robust construction for durability and reliable performance
• Engineered for harsh conditions, ensuring longevity
• Designed to minimize operator strain and improve safety

The inclusion of a PT push trolley further enhances the hoist's functionality. This push trolley simplifies load transport, making it an economical solution that significantly reduces manual labor while minimizing the risk of workplace injuries. Effortlessly navigate your workspace, transitioning loads smoothly from one point to another.

Durability is at the forefront of the EQP003SD-20 design. Constructed from high-quality materials, this electric chain hoist withstands rigorous use, proving itself capable of tackling the most demanding conditions without sacrificing performance. Businesses investing in this hoist are assured of a tool that not only meets but exceeds expectations for reliability and effectiveness.

Boost your operational productivity with the EQP003SD-20 HARRINGTON EQP Electric Chain Hoist with Push Trolley. With remarkable lift capabilities, customizable speed settings, and efficient load handling, this hoist serves as an indispensable asset in any workplace that requires dependable lifting solutions. Elevate your lifting operations today and witness transformable improvements in your workflow efficiency.

Product Specifications

.

Part Number:

EQP003SD-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Electric Chain Hoist, 500 lb., 20 ft, Push Trolley, Yellow=Hoist Mount=Push Trolley

Includes:

Chain Container

Lift Speed:

33/5.5 fpm

Housing Width:

14 13/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 7/64 in

Housing Length:

16 19/64 in

For Minimum Beam Flange Width:

2 1/2 in

For Maximum Beam Flange Width:

4 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

14 13/32 in

Body Depth:

9 1/8 in

For Minimum Beam Height:

3 in

Body Length:

16 5/16 in

Minimum Radius Curve:

43 1/4 in

Maximum Lifting Length:

20 ft

Controller Cord Length:

16 ft

Trolley Wheel Diameter:

3 1/4 in

Lifting Hook Opening Width:

1 3/32 in

Minimum Retracted Length:

16 5/16 in

Load Capacity:

500 lb.

Minimum Between Hooks:

16 5/16 in

Motor HP:

0.67 hp

Phase:

3

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

16 ft

Amps @ Low Volts:

2.9 A

Number of Speeds:

2

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

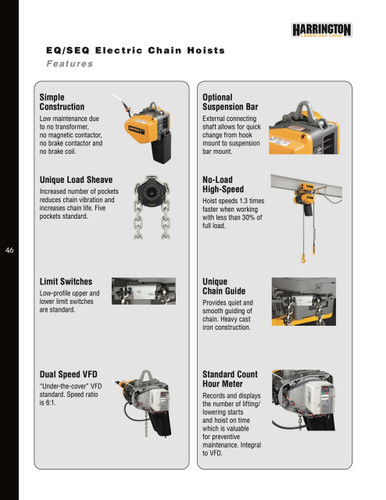

No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Stamped Steel Side Plates, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

33 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

5.5 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Programmable by Internal Controls=Mount Type=Push Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

5/8 hp

Headroom:

16 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

500 lb

Current at Minimum Voltage:

5.1 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

2.8 A

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
