EQP Electric Chain Hoist with Push Trolley 10' Lift-Capacity 1/4 Ton EQP003SD Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

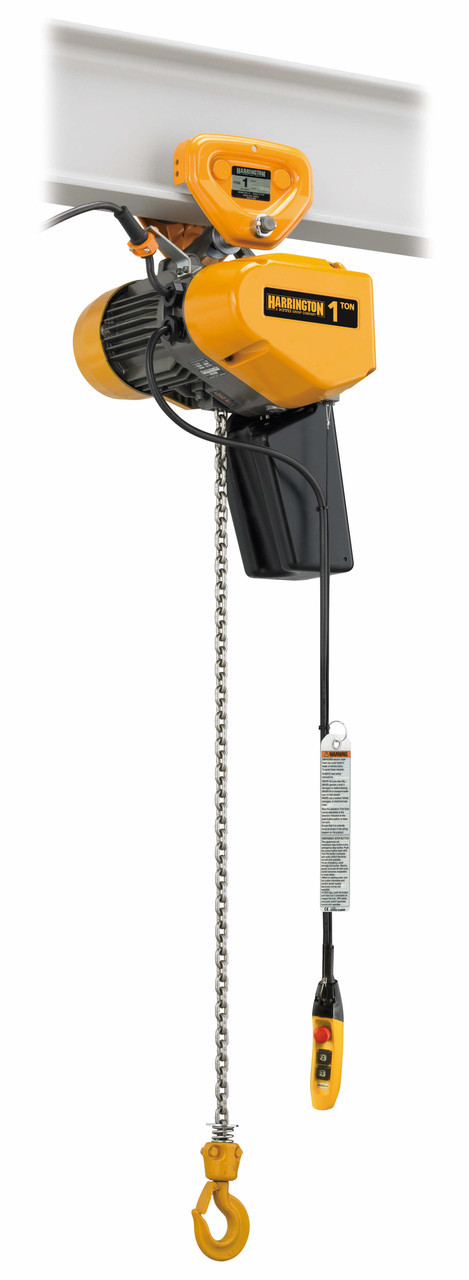

Experience unparalleled lifting power with the EQP Electric Chain Hoist with Push Trolley, specifically designed to handle rigorous lifting tasks with ease. With a generous 10' lift capacity and a robust 1/4 ton capability, this hoist is the ultimate solution for professionals and hobbyists alike who demand efficiency and reliability in their lifting operations.

The EQP003SD-10 HARRINGTON model stands out with its innovative dual-speed Variable Frequency Drive (VFD) control system. This advanced feature grants users exceptional control and precision during lifting operations, allowing for seamless adjustments to the lifting speed based on specific requirements. Say goodbye to inefficient manual lifting and welcome the convenience of electric operations in your workspace.

• Heavy-duty design with a lift capacity of 1/4 ton, perfect for heavy machinery and materials.
• 10' lift height for versatile lifting solutions in various settings.
• Dual speed VFD control for adjustable lifting speeds, ensuring efficient operations.
• Integrated push trolley for enhanced maneuverability across different workspaces.
• Multiple safety features including load limit switches, magnetic brake system, and limit switches to prevent overloading and ensure secure load positioning.
• Engineered for durability and reliability, suitable for demanding work environments.

Safety is a top priority in all lifting operations, and the EQP Electric Chain Hoist does not compromise on this aspect. Equipped with multiple safety features, including a load limit switch that prevents overloading and a robust magnetic brake system, you can lift confidently knowing that your loads are secured. Additionally, upper and lower limit switches enable precise positioning, thus avoiding accidental damage to your equipment or work area.

Elevate your lifting capabilities today with the EQP003SD-10 HARRINGTON Electric Chain Hoist with Push Trolley. Trust in Harrington’s standard of unmatched quality and reliable lifting equipment that caters to a wide range of industries. Whether you're in construction, maintenance, or any heavy-duty lifting scenario, investing in this electric chain hoist will streamline your processes and enhance productivity. Opt for Harrington and embrace the power of intelligent lifting solutions.

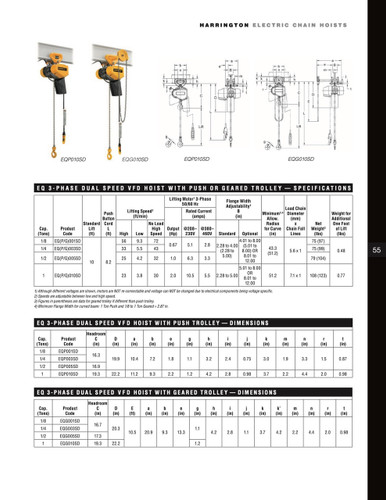

Product Specifications

.

Part Number:

EQP003SD-10

Color:

Yellow

Hoist Lift:

10 ft

Product:

Electric Chain Hoist, 500 lb., 10 ft, Push Trolley, Yellow=Hoist Mount=Push Trolley

Includes:

Chain Container

Lift Speed:

33/5.5 fpm

Housing Width:

14 13/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 7/64 in

Housing Length:

16 19/64 in

For Minimum Beam Flange Width:

2 1/2 in

For Maximum Beam Flange Width:

4 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

14 13/32 in

Body Depth:

9 1/8 in

For Minimum Beam Height:

3 in

Body Length:

16 5/16 in

Minimum Radius Curve:

43 1/4 in

Maximum Lifting Length:

10 ft

Controller Cord Length:

6 ft

Trolley Wheel Diameter:

3 1/4 in

Lifting Hook Opening Width:

1 3/32 in

Minimum Retracted Length:

16 5/16 in

Load Capacity:

500 lb.

Minimum Between Hooks:

16 5/16 in

Motor HP:

0.67 hp

Phase:

3

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

6 ft

Amps @ Low Volts:

2.9 A

Number of Speeds:

2

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Stamped Steel Side Plates, Unique Chain Guide, Variable Frequency Drive (VFD)

Material:

Stainless Steel

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

33 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

5.5 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Push Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

5/8 hp

Headroom:

16 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

500 lb

Current at Minimum Voltage:

5.1 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

2.8 A

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
