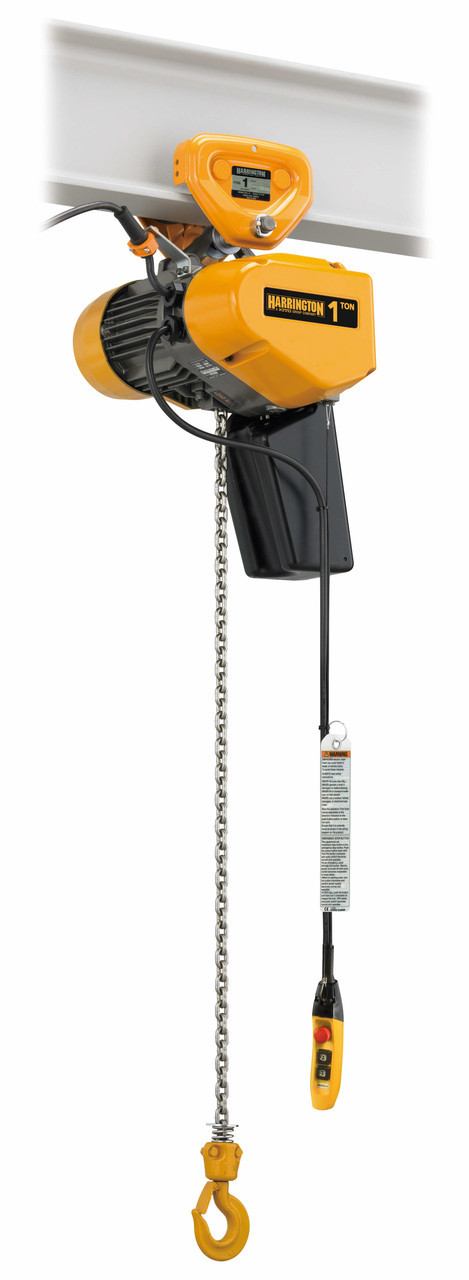

EQP Electric Chain Hoist with Push Trolley 20' Lift-Capacity 1/8 Ton EQP001SD Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

The EQP001SD-20 HARRINGTON EQP Electric Chain Hoist with Push Trolley is a powerful and versatile tool for efficient load transportation. Manufactured by Harrington, a trusted brand known for their quality products, this electric chain hoist is designed to provide smooth and precise lifting with dual-speed operation and a variable frequency drive control.With a lifting capacity ranging from 1/8 ton, this hoist is capable of handling heavy loads, making it suitable for a wide range of applications. Whether you're working in a warehouse, construction site, or manufacturing facility, the EQP001SD-20 is a reliable choice that guarantees exceptional durability and long-lasting performance.The PT push trolley featured in this hoist allows for easy maneuverability, making it effortless to transport loads from one location to another. This feature is especially beneficial when working in tight or crowded spaces where maneuverability is crucial.Investing in the EQP001SD-20 will not only enhance productivity but also enhance safety in your operations. The advanced design and high-quality construction ensure reliable performance, giving you peace of mind while handling heavy loads. The hoist is built to withstand tough environments and is designed for long-lasting use, reducing the need for frequent replacements or repairs.In conclusion, the EQP001SD-20 HARRINGTON EQP Electric Chain Hoist with Push Trolley is a top-of-the-line electric chain hoist that offers efficient load transportation, smooth lifting, and easy maneuverability. With a lifting capacity ranging from 1/8 to 1 ton, this hoist is suitable for various applications and guarantees reliable performance and exceptional durability. Invest in this advanced electric chain hoist and experience enhanced productivity and safety in your operations.

Product Specifications

.

Part Number:

EQP001SD-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Electric Chain Hoist, 250 lb, 20 ft, Push Trolley, Yellow=Hoist Mount=Push Trolley

Includes:

Chain Container

Lift Speed:

56/9.3 fpm

Housing Width:

14 13/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 7/64 in

Housing Length:

16 19/64 in

For Minimum Beam Flange Width:

2 1/2 in

For Maximum Beam Flange Width:

4 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

14 13/32 in

Body Depth:

9 1/8 in

For Minimum Beam Height:

3 in

Body Length:

16 5/16 in

Minimum Radius Curve:

43 1/4 in

Maximum Lifting Length:

20 ft

Controller Cord Length:

16 ft

Trolley Wheel Diameter:

3 1/4 in

Lifting Hook Opening Width:

1 3/32 in

Minimum Retracted Length:

16 5/16 in

Load Capacity:

250 lb

Minimum Between Hooks:

16 5/16 in

Motor HP:

0.67 hp

Phase:

3

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Clutch:

Friction

Reeving:

1

Thermal Protection:

Yes

Control Cord:

16 ft

Amps @ Low Volts:

2.9 A

Number of Speeds:

2

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

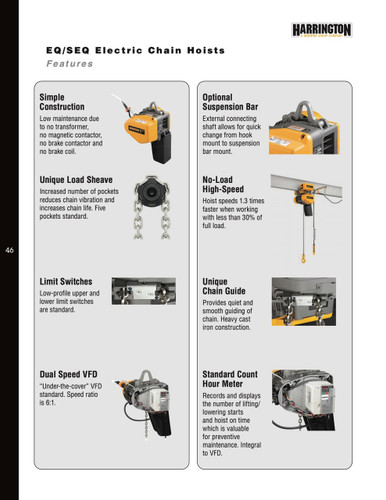

No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Stamped Steel Side Plates, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

56 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

9.3 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Push Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

5/8 hp

Headroom:

16 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

250 lb

Current at Minimum Voltage:

5.1 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

2.8 A

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
