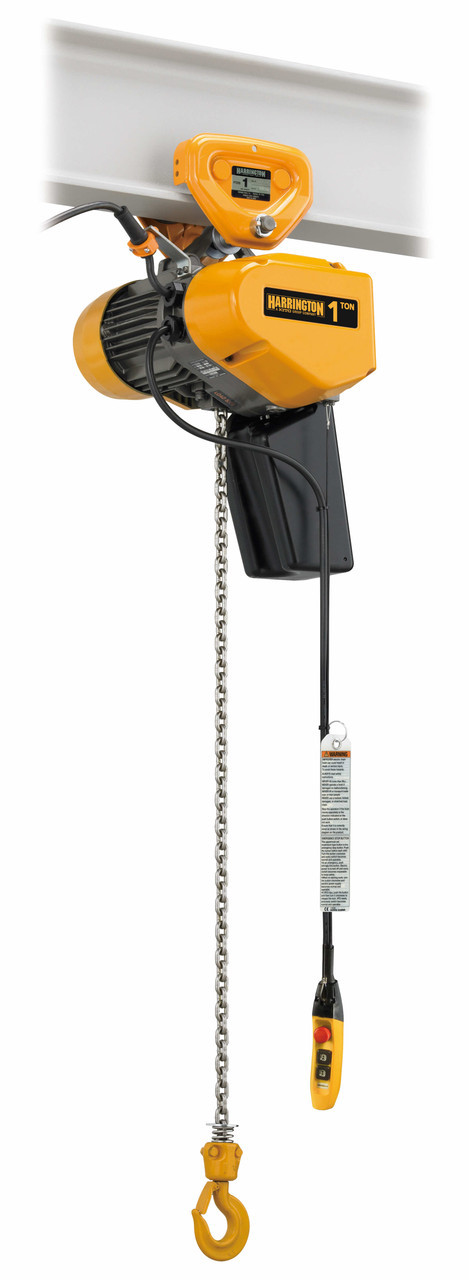

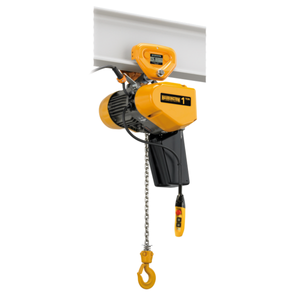

EQP Electric Chain Hoist with Push Trolley 15' Lift-Capacity 1/8 Ton EQP001SD Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

The EQP001SD-15 HARRINGTON EQP Electric Chain Hoist with Push Trolley 15' Lift is a versatile and powerful industrial hoist designed to handle a wide range of loads. With its capacity if 1/8 ton, this hoist is perfect for various applications in warehouses, manufacturing facilities, and construction sites.With dual speed and VFD control, this electric chain hoist provides you with complete control over the lifting process. It ensures not only precision but also safety, allowing you to handle heavy loads with ease and confidence. The VFD control allows for smooth acceleration and deceleration, minimizing the risk of accidents and product damage.The integral push trolley adds to the convenience and efficiency of your operations. It ensures smooth and efficient load transportation, making it easy to maneuver loads across your workspace. Whether you need to move heavy materials within a warehouse or transport equipment in a construction site, this hoist with push trolley is designed to meet your needs.With its 15' lift height, this hoist offers great versatility. It allows you to reach higher heights and maneuver heavy loads with ease. Whether you're working on a project that requires lifting materials to high rooftops or accessing difficult-to-reach areas, this hoist has got you covered.The EQP001SD-15 HARRINGTON EQP Electric Chain Hoist with Push Trolley 15' Lift is a top-of-the-line industrial hoist that delivers power, efficiency, and reliability. It is built to withstand the demands of a rugged work environment and deliver consistent performance. Elevate your productivity and streamline your operations with this high-quality electric chain hoist.

Product Specifications

.

Part Number:

EQP001SD-15

Color:

Yellow

Hoist Lift:

15 ft

Product:

Electric Chain Hoist, 250 lb, 15 ft, Push Trolley, Yellow=Hoist Mount=Push Trolley

Includes:

Chain Container

Lift Speed:

56/9.3 fpm

Housing Width:

14 13/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 7/64 in

Housing Length:

16 19/64 in

For Minimum Beam Flange Width:

2 1/2 in

For Maximum Beam Flange Width:

4 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

14 13/32 in

Body Depth:

9 1/8 in

For Minimum Beam Height:

3 in

Body Length:

16 5/16 in

Minimum Radius Curve:

43 1/4 in

Maximum Lifting Length:

15 ft

Controller Cord Length:

11 ft

Trolley Wheel Diameter:

3 1/4 in

Lifting Hook Opening Width:

1 3/32 in

Minimum Retracted Length:

16 5/16 in

Load Capacity:

250 lb

Minimum Between Hooks:

16 5/16 in

Motor HP:

0.67 hp

Phase:

3

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control:

11 ft

Control Cord:

11 ft

Amps @ Low Volts:

2.9 A

Number of Speeds:

2

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

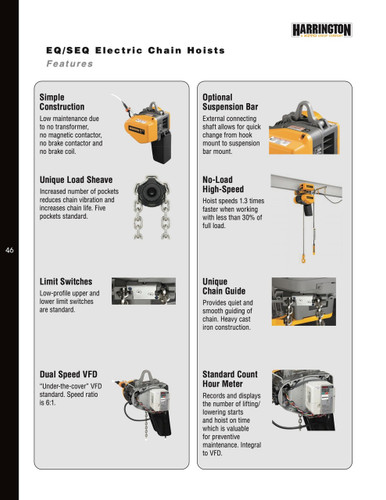

No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Stamped Steel Side Plates, Unique Chain Guide, Variable Frequency Drive (VFD)

Material:

Stainless Steel

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

56 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

9.3 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Programmable by Internal Controls=Mount Type=Push Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

5/8 hp

Headroom:

16 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

250 lb

Current at Minimum Voltage:

5.1 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

2.8 A

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
